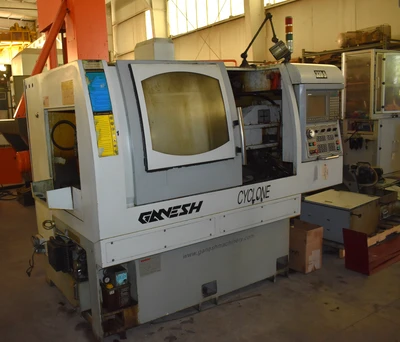

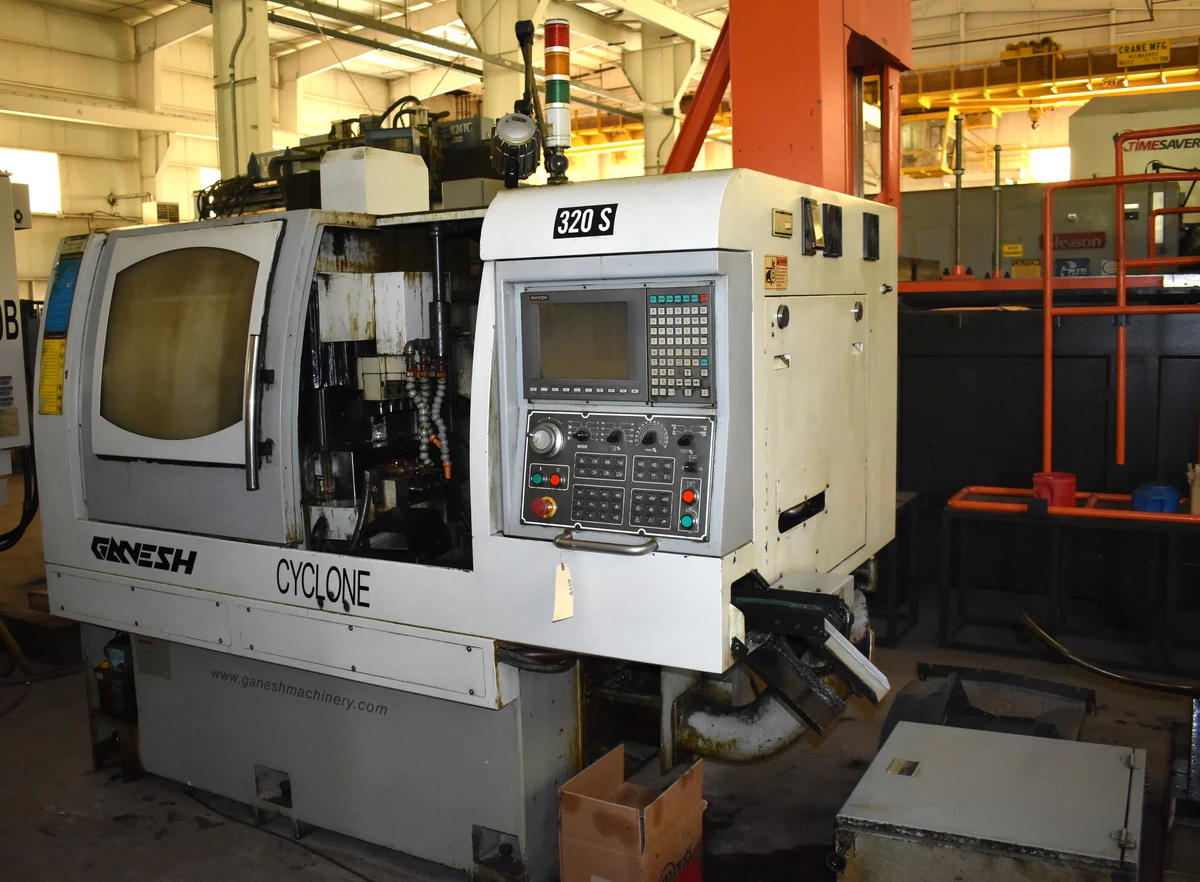

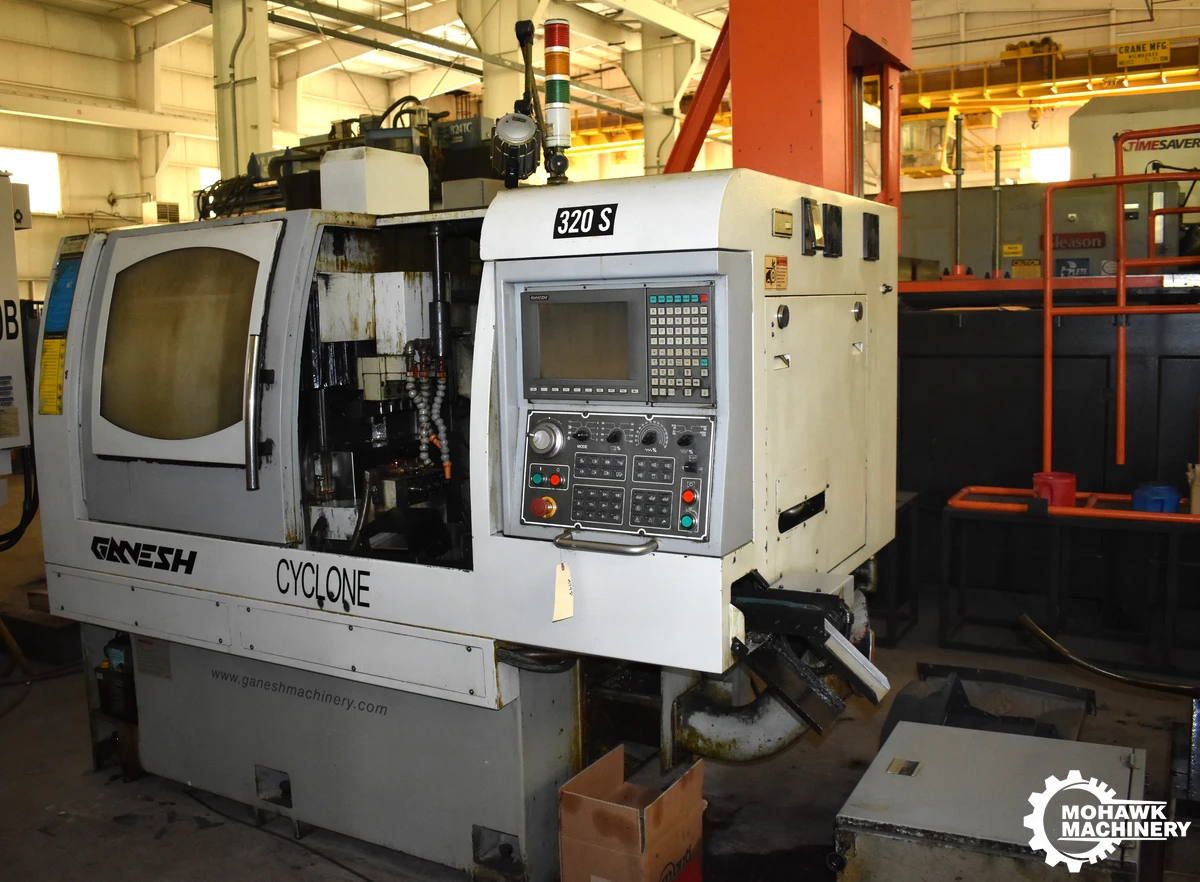

1.25" GANESH "CYCLONE 32CS" CNC 7-AXIS TWIN-SPINDLE SWISS TYPE MILL/TURN CENTER W/GANESH CNC CONTROL - SUBSPINDLE C & Y-AXIS - PARTS CONVEYOR -
Have one to sell?
$27,500.00 USD
ConditionUsed
1 available
1.25" GANESH "CYCLONE 32CS" 7-AXIS TWIN-SPINDLE CNC SWISS TYPE MILL/TURN CENTER W SUBSPINDLE, C & Y AXIS
New 2008, Serial No CB970408, Model Cyclone 32CS,

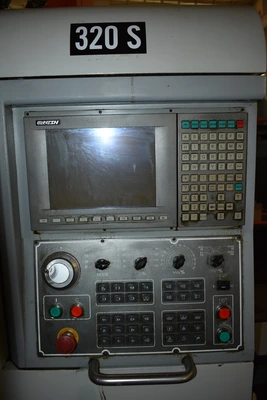

Ganesh CNC Control

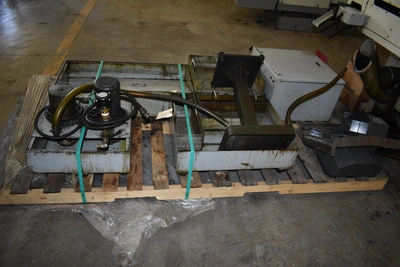

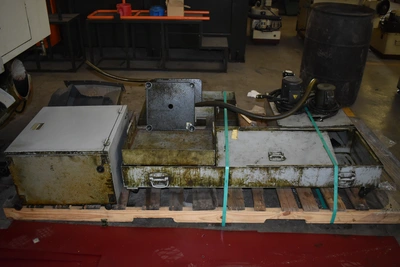

Chip Conveyor (Built-In) - Parts Conveyor
Coolant System
Bar Capacity, Round 1.25"
Spindle Bore 1.456"
Number of Total Tools 27 (18 Main & 7 Sub Spindle)
Number Of Live Tools 11 (4 Radial, 3 Axial, 4 Sub Spindle)
Main Spindle OD Turning Tools 6
Main Spindle ID turning Tools 5
Main Spindle, X-Axis 7.28
Main Spindle, Y-Axis 19.29"
Main Spindle, Z-Axis 6.5"
Main Spindle Speeds to 6000 RPM
Main Spindle HP 10 HP
Sub Spindle, X-Axis 11.53"
Sub Spindle, Z-Axis 11.61"
Sub Spindle Speeds to 6000 RPM
Sub Spindle HP 5 HP
Main & Sub Spindle, C-Axis 360,000 Positions
Machine Dimensions, W x D 101" x 68"
Weight, Approximately 8,000 LBS
F.O.B. OUR WAREHOUSE
