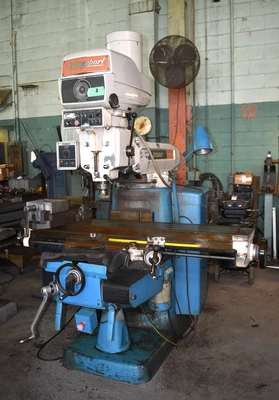

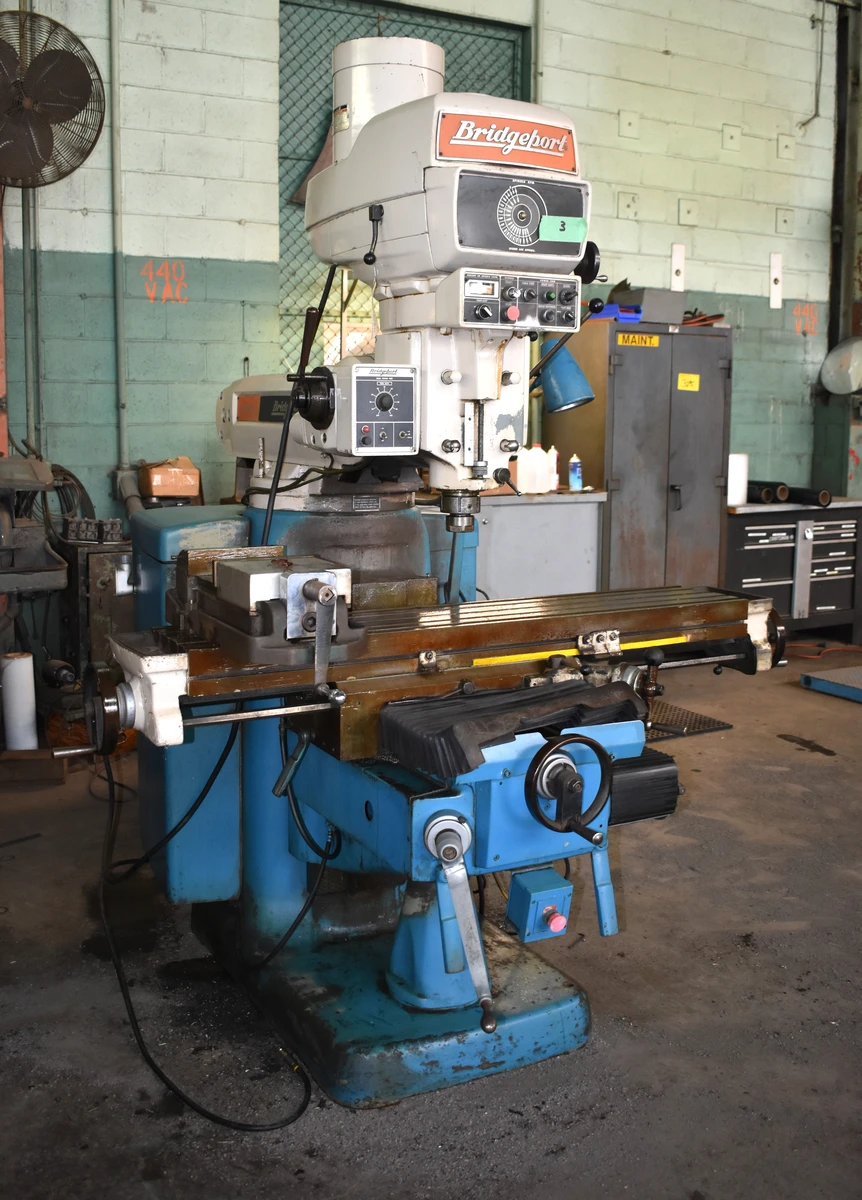

4 HP BRIDGEPORT "4J SERIES II" VERTICAL MILL MACHINE w/POWER TABLE & SADDLE FEED - 11” X 58” TABLE - VISE

Table Dimensions (Overall), W x L .......... 11" x 58"

Table Longitudinal Travel (X-Axis) .......... 30"

Saddle Cross Travel (Y-Axis) .......... 15"

Knee Vertical Travel (Z-Axis) .......... 16"

Quill Travel .......... 5"

Throat Distance, Minimum .......... 10.625"

Throat Distance, Maximum .......... 26.625"

Workpiece Load Capacity, Maximum .......... 1500 LBS

Quill Diameter .......... 4.25"

Spindle-Nose, Diameter .......... 2.125"

Spindle Taper .......... #40

Spindle-Head Swivel Degrees, L-R .......... 90-DEGREES

Spindle-Head SWivel Degrees, F-B .......... 30-DEGREES

Spindle Speeds, Infinitely Variable .......... 50 to 3500 RPM

Longitudinal and Cross Feeds .......... 3/8 to 24 IPM

Power Rapid Traverse, Long & Cross .......... 24 IPM

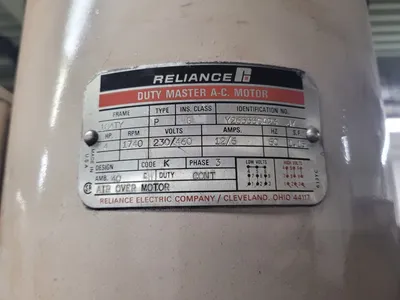

Spindle Motor, Horsepower/RPM .......... 4 HP/ 1740 RPM

Electrical System .......... 230-460/3/60

Floor Space Required, W x D .......... 10' x 7'

Weight, Approximately .......... 5220 LBS

F.O.B. OUR WAREHOUSE
Table Longitudinal Travel (X-Axis): 30"
Saddle Cross Travel (Y-Axis): 15"
Knee Vertical Travel (Z-Axis): 16"
Quill Travel: 5"
Throat Distance, Minimum: 10.625"
Throat Distance, Maximum: 26.625"
Workpiece Load Capacity, Maximum: 1500 LBS
Quill Diameter: 4.25"
Spindle-Nose, Diameter: 2.125"
Spindle Taper: #40
Spindle-Head Swivel Degrees, L-R: 90-DEGREES
Spindle-Head SWivel Degrees, F-B: 30-DEGREES
Spindle Speeds, Infinitely Variable: 50 to 3500 RPM
Longitudinal and Cross Feeds: 3/8 to 24 IPM
Vertical Knee Feeds, Range: 3/16 to 12 IPM
Power Rapid Traverse, Vertical: 12 IPM
Spindle Motor, Horsepower/RPM: 4 HP/ 1740 RPM
Electrical System: 230-460/3/60
Weight, Approximately: 5220 LBS
