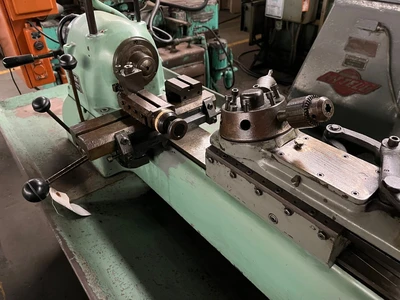

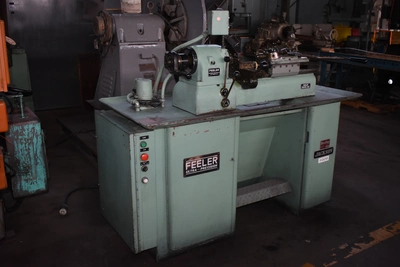

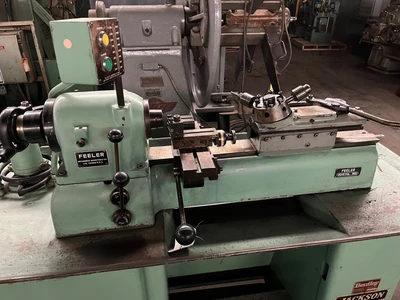

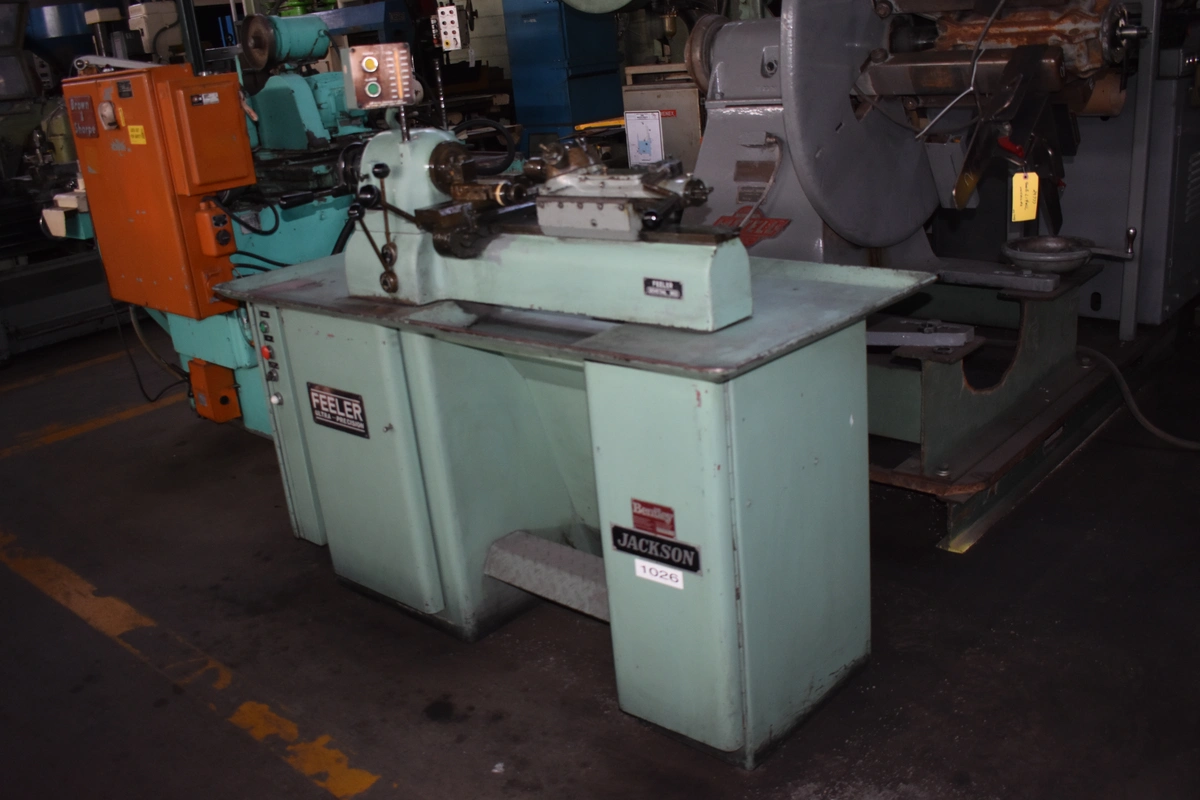

9” X 36” FEELER “DV59” HIGH-SPEED ULTRA-PRECISION SECOND OPERATION TURRET LATHE - DV59 HARDINGE COPY

6-Position Automatic Indexing Turret

5C Quick Collet Closer (Lever Type)

Infinitely Variable Speed Drive

Cross-Slide & Top Slide

Dovetail Bed - Hardened & Ground Ways

Coolant System (Built-In)

CATALOGU SPECIFICATIONS:

Hole Thru Spindle 1.156"

Capacity, Round 5C Collet 1.06"

Capacity, Square 5C Collet .75"

Capacity, Hexagon 5C Collet .875"

Swing Over Bed Ways 9"

Length of Bed 36"

Cross Slide Travel 3.75"

Turret Slide Travel 4"

Turret Holes Diameter .625"

Spindle Speeds, Variable Range 230 to 3500 RPM

Spindle Motor, Horsepower 2 HP

Weight, Approximately 1000 LBS

NOTE: This Lathe Is A Copy Of A DV59 Hardinge

Precision Lathe.

F.O.B. OUR WAREHOUSE
