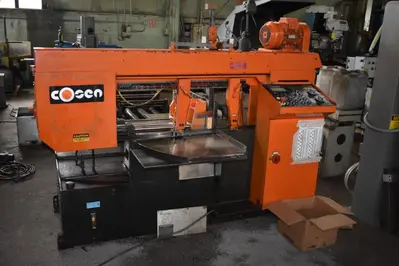

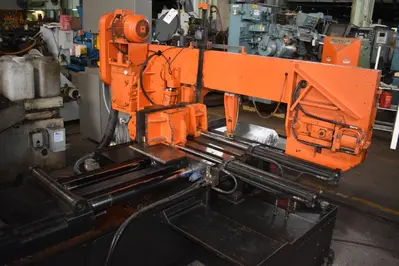

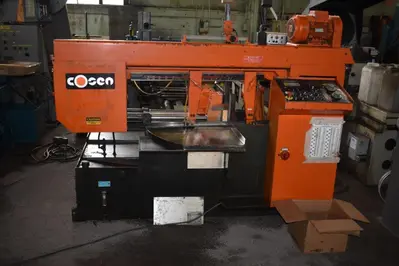

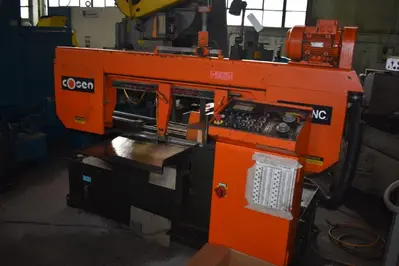

11" x 18" COSEN "C-330NC" PROGRAMMABLE AUTOMATIC MITERING HORIZONTAL BAND SAW w/COSEN SMC20 PROGRAMMABLE CONTROL - AUTOMATIC STOCK FEED -

11" x 18" COSEN PROGRAMMABLE AUTOMATIC
MITERING HORIZONTAL BAND SAW
Serial No C931523, Model C-330NC

EQUIPPED WITH:
Cosen SMC20 Programmable Controller
90 to 45-DEGREE Angle-Mitre Cutting Feature
AUTOMATIC-Driven Stock-Feed Table
Automatic Hydraulic Vise
Hydraulic Band Saw Up-Feed and Down-Feed
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Flat Stock Capacity, 90-Degrees 11" x 18"
Flat Stock Capacity, 45-Degrees 10.5" x 10.5"
Square Stock Capacity, 90-Degrees 11" x 11"
Square Stock Capacity, 45-Degrees 10.5" x 10.5"
Round Stock Capacity, 90-Degrees 13"
Round Stock Capacity, 45-Degrees 11.5"
Angle Adjustment Range 45 to 90 DEGREES
Band Length 163"
Band Width 1.25"
Band Thicknesss 0.035"
Feed Length Range, Per Stroke 0" to 22.5"
Feed Length Range, Maximum 650"
Band Speeds, Variable 50 to 330 FPM
Blade Motor, Horsepower/RPM 5 HP
Hydraulic Motor, Horsepower 1 HP
Floor Space Required, L x W 78" x 75"
Overall Height 56"
Weight, Approximately 3800 LBS
F.O.B. OUR WAREHOUSE
