18" x 22" HEM "V100LA-3" AUTOMATIC TILTING-HEAD VERTICAL BAND SAW w/POWER TILT HEAD - AUTOMATIC FEED SYSTEM
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available

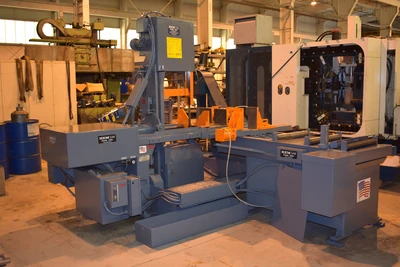

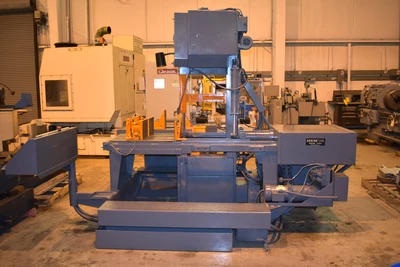

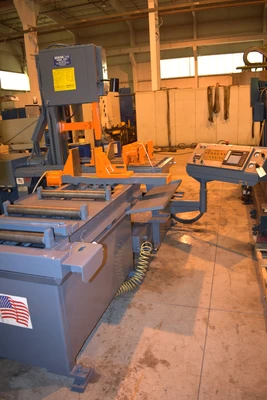

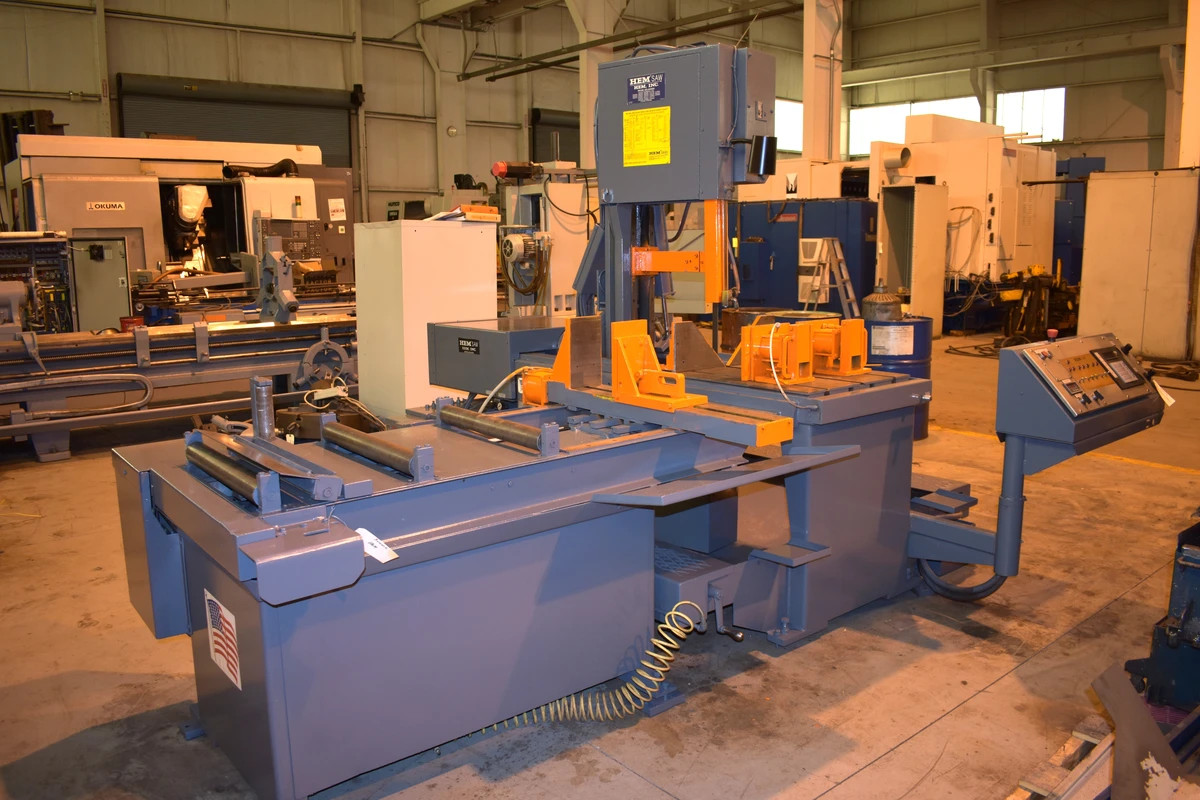

18" x 22" HEM AUTOMATIC TILTING-HEAD VERTICAL BAND SAW

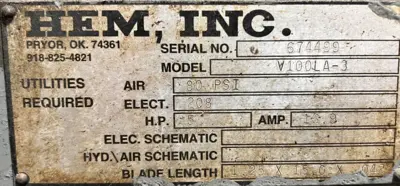

Serial No 674499, Model V100LA-3,

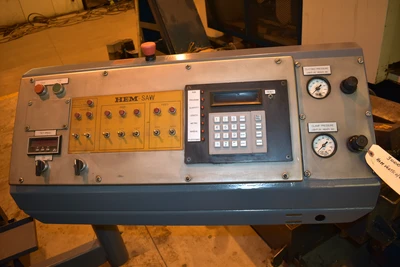

Swing Away Control Console (All Function Control)
Powered Tilting-Head Design w/LED
Automatic Feed System
Clamping Vises (Main & Feed) w/Variable Vise Pressure
Air Powered Blade Tensioning
Powered Guide Arm
Work Capacity, Nominal 18" x 22"
Work Capacity 45-Degree Blade, Left 18" x 15"
Work Capacity 45-Degree Blade, Right 18" x 14"
Work Height Capacity, Maximum 22"
Throat Depth, Rated 18"
Head Tilt, Left 45-DEGREES
Head Tilt, Right 45-DEGREES
Blade Width 1.25"
Blade Lenth 15'
Blade Thickness .042"
Blade Speeds, Infinitely Variable 60 to 400 SFPM
Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Overall Dimensions, W x D 8'8" x 11'
Overall Height 7'2"
F.O.B. OUR WAREHOUSE
