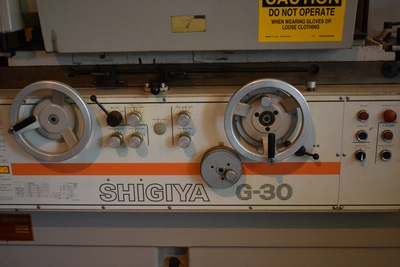

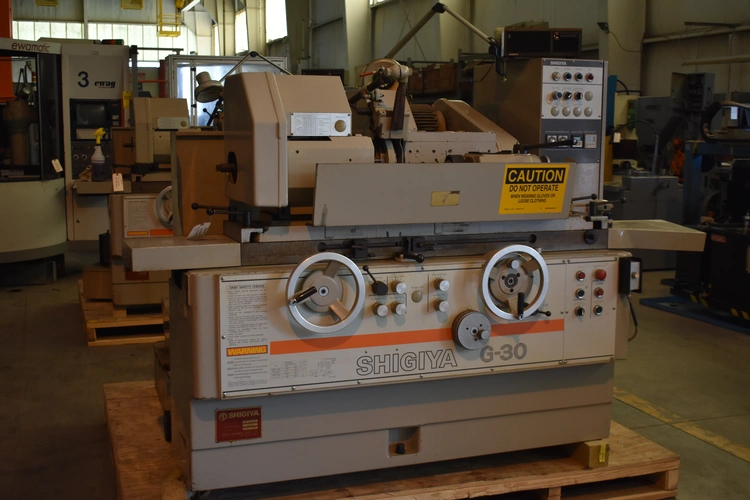

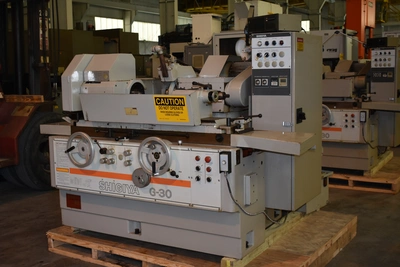

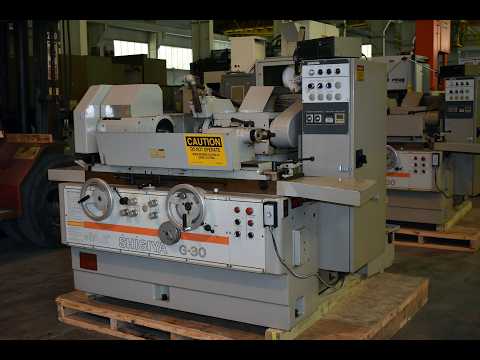

12" x 16" SHIGIYA "GP-30B-40A" AUTOMATIC HYDRAULIC PLAIN CYLINDRICAL GRINDER w/SONY DIGITAL READOUTS
Have one to sell?
$9,950.00 USD
ConditionUsed
1 available
11.8" x 16" SHIGIYA AUTOMATIC HYDRAULIC PLAIN
CYLINDRICAL GRINDER
Serial No 120237, Model GP-30B-40A

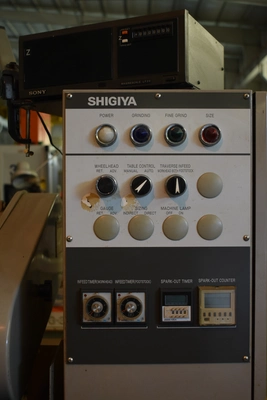

Sony "LF20" Magnascale Digital Readouts

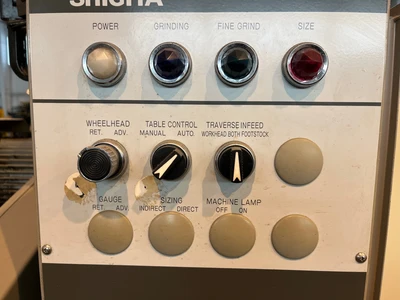

Automatic Grinding Cycle - Spark-Out Timer
Hydraulic Longitudinal Table Feed

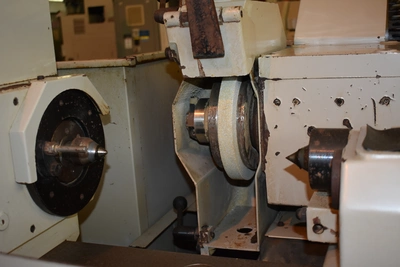

Hydraulic Tailstock w/Advance & Retract

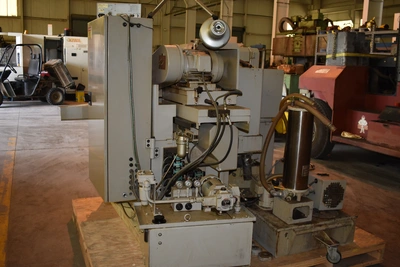

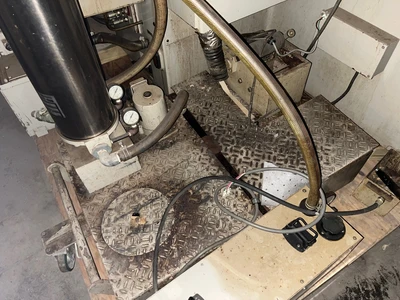

Coolant System
Automatic Lube System
Swing Over Table, Maximum 11.8" 300MM
Grinding Diameter, Maximum 8.7" 220MM
Distance Between Centers, Nominal 16" 400MM
Grinding Wheel Diameter, Range 16" to 20"
Grinding Wheel Width, Range 1" to 3"
Grinding Wheel Hole Diameter 6" 152.4MM
Grinding Wheel Speed, Standard 1563 & 1675 RPM
Workhead Speeds, Range 33 to 361 RPM
Table Longitudinal Speed, Range 2 to 160 IPM
Tailstock Spindle Stroke 1.8" 30MM
Table Swivel, Counterclockwise 11-DEGREES
Table Swivel, Clockwise 1-DEGREE
Weight, Approximately 5500 LBS
F.O.B. OUR WAREHOUSE
