20" x 48" IKEGAI "A20" HIGH-SPEED ENGINE LATHE w/INCH/METRIC THREADING - CHUCK - TOOLPOST
Have one to sell?
$4,950.00 USD
ConditionUsed
1 available

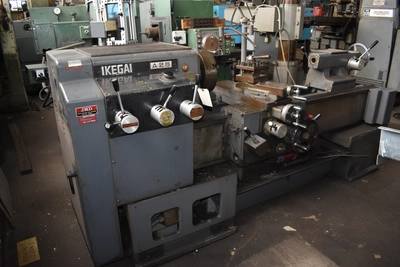

20" x 48" IKEGAI "A20" HIGH-SPEED ENGINE LATHE
Serial No 17058T, Model A20,
Inch/Metric Threading
11" 3-Jaw Chuck w/Jaws
4-Way Tool Post
Hole Thru Spindle 2.2"
Swing Over Bed Ways, Rated 20"
Swing Over Bed Ways, Actual 21"
Swing Over Cross-Slide 11.375"
Distance Between Centers 48"
Tailstock, Quill Travel 5.87"
Tailstock, Quill Taper #5 MT
(13) Spindle Speeds, Range 18 to 2000 RPM
Carriage Longitudinal Feeds, Range .0008 to .25 IPR
U.S. Thread Changes, Range 1-18" to 80 TPI
Metric Thread Changes, Range .5 to 32
Module Threads, Range .25 to 8
Diametral Pitch Threads, Range 3/4 to 56
Weight, Approximately 5500 LBS
F.O.B. OUR WAREHOUSE
