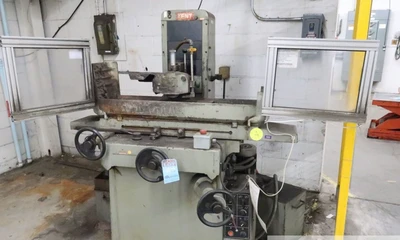

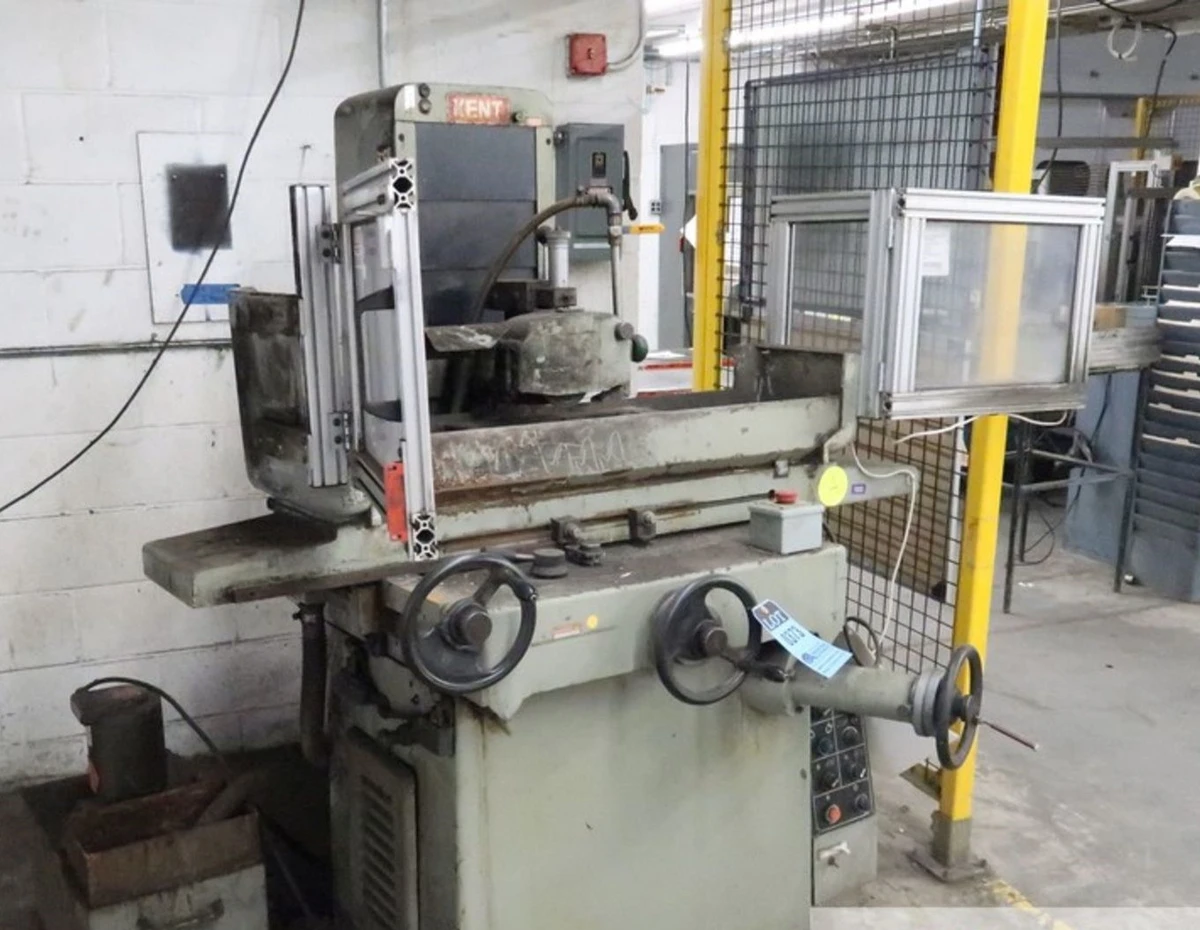

8" x 18" KENT "KGS-250AH" HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK - OVERHEAD WHEEL DRESSER

8" x 18" KENT HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 780503-6, Model KGS250AH,

EQUIPPED WITH:
8" x 16" Permanent Magnetic Chuck
Overhead Wheel Dresser
Automatic Cross Feed
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 8" x 18"
Grinding Width Capacity, Maximum 8"
Grinding Length Capacity, Maximum 18"
Height Spindle Center to Table, Maximum 16"
Table Longitudinal, Power 20"
Table Cross Travel 10"
Grinding Wheel Diameter, Standard 7"
Grinding Wheel Width, Standard 0.5"
Grinding Wheel Hole Diameter 1.25"
Grinding Spindle Speed 3480 RPM
Table Longitudinal Feeds, Range 16 to 67 FPM
Table Cross In-Feeds, Range .04 to .3 IPR
Floor Space Required, L x D 6' x 4'7"
Weight, Approximately 2860 LBS
F.O.B. OUR WAREHOUSE
