40/50" X 476" (40') POREBA "TR-100B1" UNIVERSAL GAP-TYPE DUAL-CARRIAGE ENGINE LATHE w/TAPER ATTACHMENTS - INCH/METRIC THREADING - CHUCK - (3) STEADY RESTS -POWER RAPID TRAVERSE
Have one to sell?
$89,500.00 USD
ConditionUsed
1 available

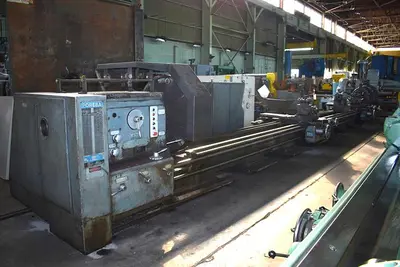

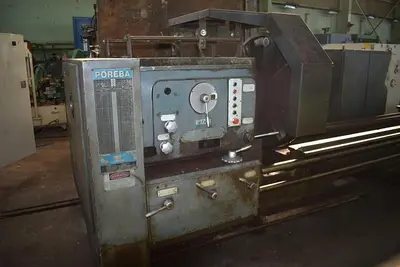

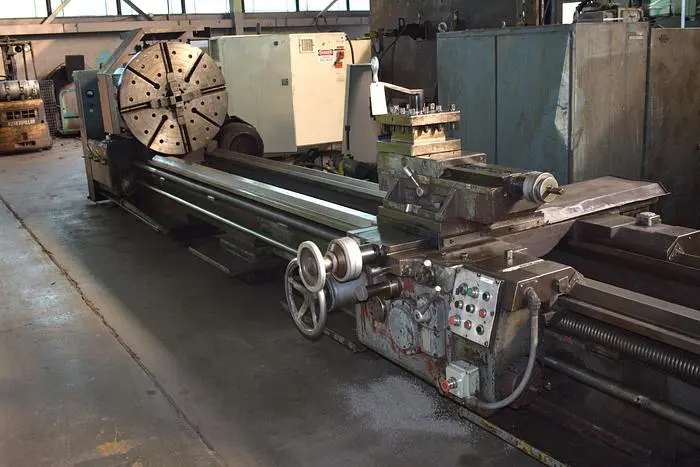

40"/49.25" x 476" (40') POREBA UNIVERSAL
GAP-TYPE ENGINE LATHE w/DUAL CARRIAGES
& TAPER ATTACHMENTS
Serial No. 10-80-1191-180, Model TR100B1,

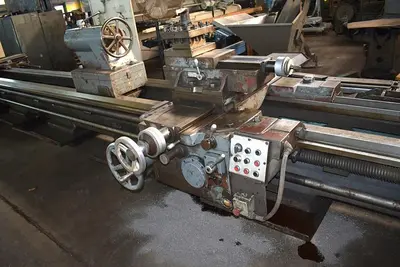

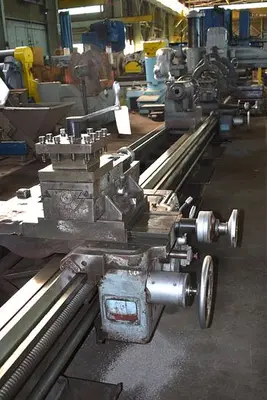

Dual Carriages Both With Taper Attachments
& Rapid Power Traverse
Inch-Metric Threading Capabilities
Power Rapid Traverse (Long & Cross)

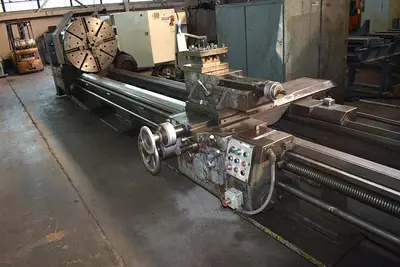

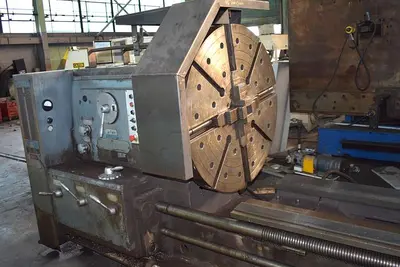

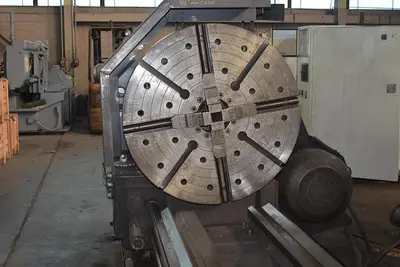

39.5" 4-Jaw Chuck w/Jaws
Hardened & Ground Bed Ways

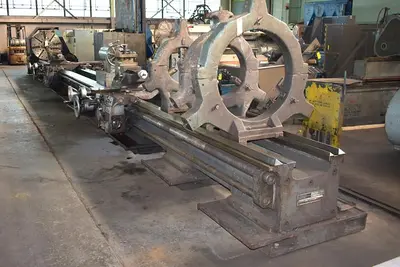

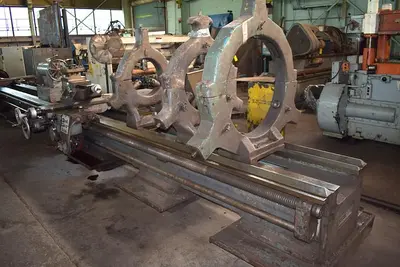

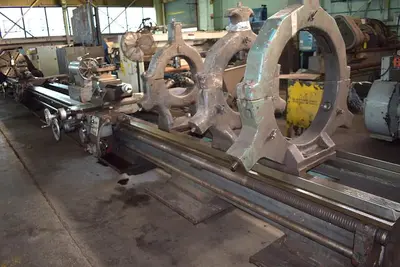

(3) Steady Rests - Some Extra Tooling

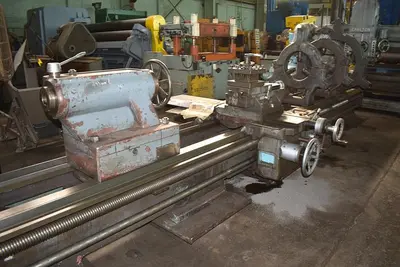

Tailstock
Hole Thru Spindle 4.125"
Swing Over Bed Ways, Rated 39.37"
Swing thru Gap 49.25"
Distance Between Centers 476" (40')
Swing Over Carriage 26.755"
Workpiece Weight Capacity w/(2) Steadys 24200 LBS
Spindle Nose ASA A-1-11
(21) Spindle Speeds, Range 5 to 500 RPM
Longitudinal Feeds, Range .0017 to .125 IPR
Cross Feeds, Range .0008 to .063 IPR
(62) Metric Treads, Range 1 to 120 MM
(52) Inch Threads, Range 1/4 to 30 IPR
(45) Modular Threads, Range .25 to 30 MM
(70) DP Threads, Range 1/2 to 60 TPI
Tailstock Spindle Taper 6 MT
Overall Dimensions, L x W 21' x 7'6"
Overall Height 6'4"
Weight, Approximately 42000 LBS
F.O.B. OUR WAREHOUSE
