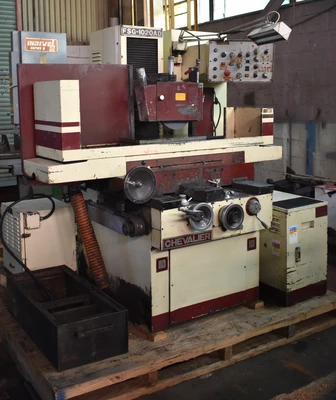

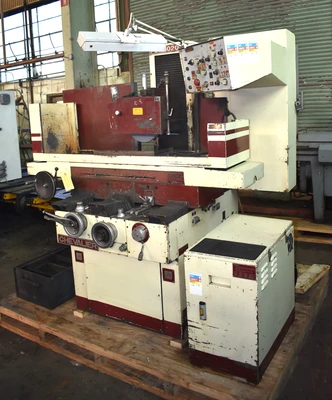

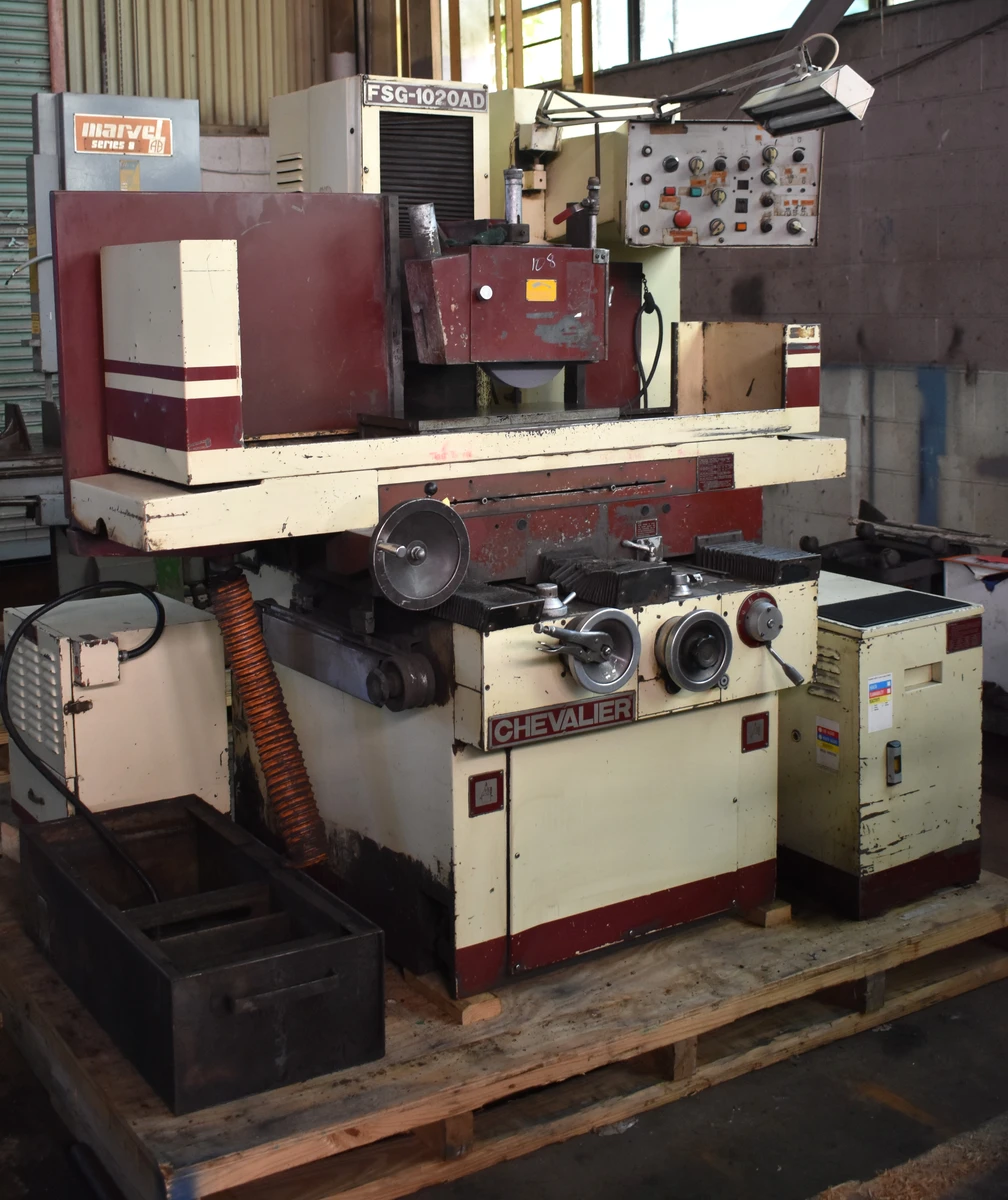

10" X 20" CHEVALIER "FSG-1020AD" AUTOMATIC HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER w/WALKER CHUCK
Have one to sell?
$4,950.00 USD
ConditionUsed
1 available
10" X 20" CHEVALIER AUTOMATIC HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 25125, Model FSG-1020AD,
10" x 20" Walker Electro-Magnetic Chuck
Automatic Cross Feed Reversal
Automatic Surface & Plunge Grinding Capabilities
Coolant System
Table Working Surface, W x L 10" x 20"
Grinding Width Capacity, Maximum 10"
Grinding Length Capacity, Maximum 20"
Height Spindle Center To Table, Maximum 21"
Table Longitudinal Travel Hydraulic 22.875"
Table Longitudinal Travel Manual 24.375"
Table Cross Travel, Automatic 10"
Table Cross Travel, Manual 11.75"
Table Longitudinal Feeds, Range 16 to 82 FPM
Grinding Wheel Spindle Motor 2 HP
F.O.B. OUR WAREHOUSE
