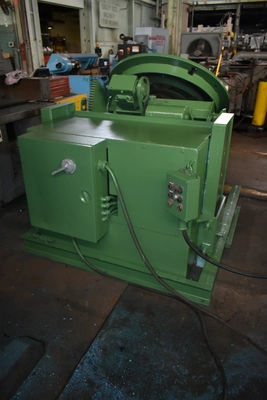

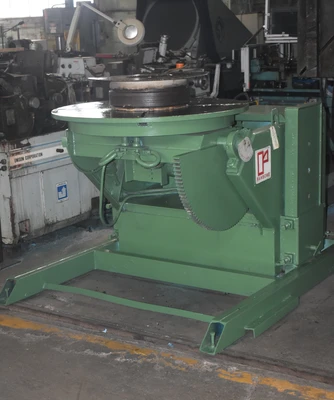

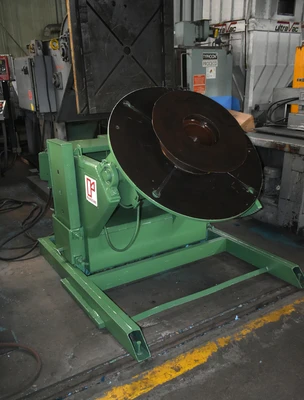

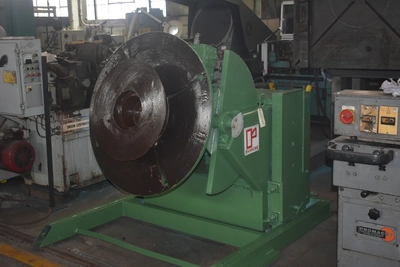

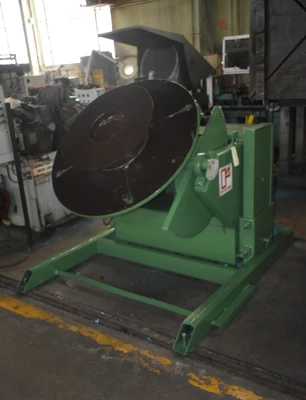

5000 LB RANSOME "50P-A" HEAVY-DUTY VARIABLE SPEED WELDING POSITIONER w/42” DIAMETER TABLE - POWER TILT

5000 LB RANSOME HEAVY-DUTY WELDING POSITIONER
Serial No 1924623 E37947, Model 50P-A

EQUIPPED WITH:
360-Degree Variable-Speed Power Rotation
135-Degree Power Tilt
42" Diameter T-Slotted Table
Manual Peg-Type Table Elevation

CATALOG SPECIFICATIONS:
Table Diameter 42"
Table Weight at 6" Eccentricity 5000 LBS
Table Weight at 12" Eccentricity 3400 LBS
Table Weight at 18" Eccentricity 2600 LBS
Table Weight at 24" Eccentricity 2100 LBS
Table Weight at 30" Eccentricity 1750 LBS
Table Rotation, Degrees 360-DEGREES
Table Tilt, Degrees 135-DEGREES
Rotation Torque, Inch Pounds 30000 LBS
Tilt Torque, Inch Pounds 65000 LBS
Table Rotational Speed, Range .031 to 1.24 RPM
Table Height, Minimum 35.5"
Table Height, Maximum 66.5"
Table Rotation Motor, HP 1 HP
Table Tilt Motor, HP 1 HP
Electrical System 460/3/60
F.O.B. OUR WAREHOUSE
