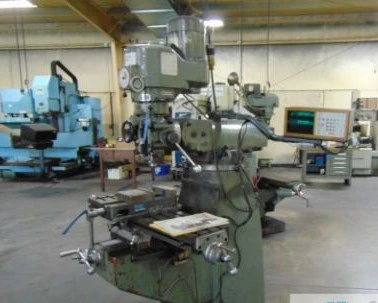

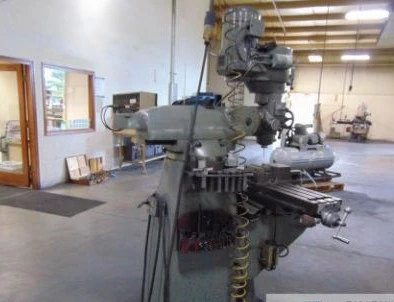

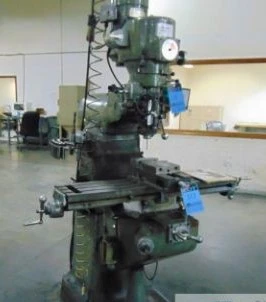

3 HP SHARP "LMV" VERTICAL TURRET MILL w/SOKKI DIGITAL READOUTS - 9” X 42” TABLE
Have one to sell?
ConditionUsed
1 available
$3,450.00 USD
3 HP SHARP "LMV" VERTICAL TURRET MILL
Serial No 91115219, Model LMV,
3 HP SHARP "LMV" VERTICAL TURRET MILL
Serial No 91115219, Model LMV,
EQUIPPED WITH:
Sokki Digital Readouts

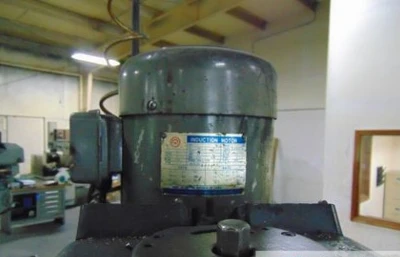

3 HP Spindle Motor (Infinitely Variable Speeds)
Power Quill Feed
One-Shot Lubrication System
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 9" x 42"
Table Longitudinal Travel (X-Axis) 30"
Saddle Cross Travel (Y-Axis) 12"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel (Z-Axis) 5"
Ram Travel 12"
Spindle to Column, Range 6.75" to 18.5"
Spindle to Table, Minimum 6.75"
Spindle to Table, Maximum 18"
Spindle Taper #R8
Spindle Speeds Range, Variable 60 to 4500 RPM
(3) Vertical Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower/RPM 3 HP/1730 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 5'1" x 5'3"
Overall Height 7'9"
Weight, Approximately 2400 LBS
NOTE: Vise In Photo Is NOT Including With This Machine.
3 HP SHARP "LMV" VERTICAL TURRET MILL
Serial No 91115219, Model LMV,
Imperial
| Table-W | 9" |
| Table-L | 42" |
| Travel-Long | 30" |
| Travel-Cross | 12" |
| Power | 3 hp |
| RPM | 1,730 RPM |
| Taper | #R8 |
| Dimensions | 5'1" x 5'3" x 7'9" |
| Weight | 2400 LBS |
3 HP SHARP "LMV" VERTICAL TURRET MILL
Serial No 91115219, Model LMV,
EQUIPPED WITH:
Sokki Digital Readouts
3 HP Spindle Motor (Infinitely Variable Speeds)
Power Quill Feed
One-Shot Lubrication System
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 9" x 42"
Table Longitudinal Travel (X-Axis) 30"
Saddle Cross Travel (Y-Axis) 12"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel (Z-Axis) 5"
Ram Travel 12"
Spindle to Column, Range 6.75" to 18.5"
Spindle to Table, Minimum 6.75"
Spindle to Table, Maximum 18"
Spindle Taper #R8
Spindle Speeds Range, Variable 60 to 4500 RPM
(3) Vertical Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower/RPM 3 HP/1730 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 5'1" x 5'3"
Overall Height 7'9"
Weight, Approximately 2400 LBS
NOTE: Vise In Photo Is NOT Including With This Machine.
