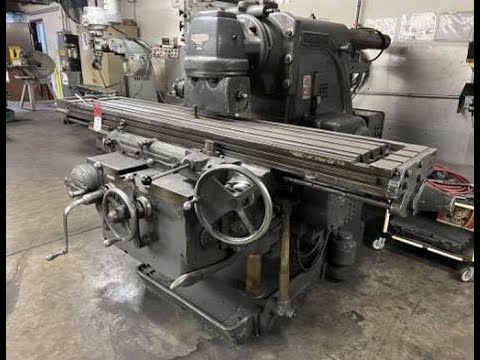

415TF KEARNEY & TRECKER "TWIN-SCREW" PLAIN HORIZONTAL MILL w/SWIVELING VERTICAL HEAD - MONO-LEVER TABLE CONTROL
Have one to sell?
$9,950.00 USD
ConditionUsed
1 available

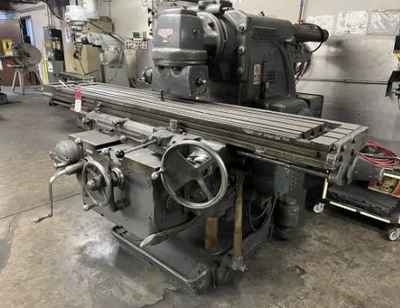

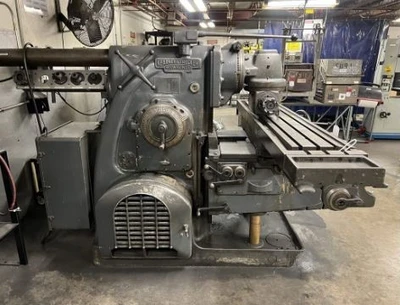

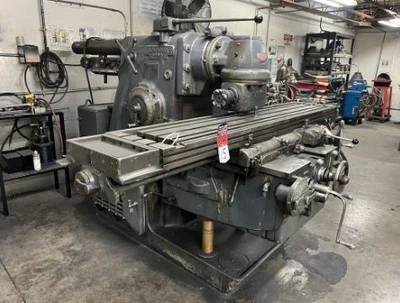

415TF KEARNEY & TRECKER PLAIN HORIZONTAL
MILL w/VERTICAL HEAD ATTACHMENT

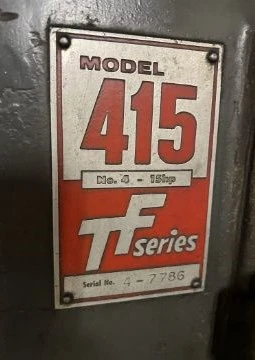

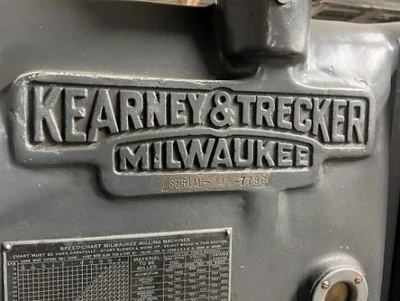

Serial No. 4-7786, Model 415TF

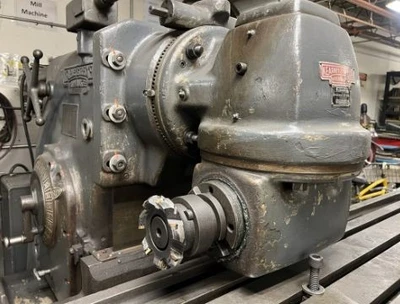

Vertical Head Attachment (Swiveling)
Twin Elevating Screws

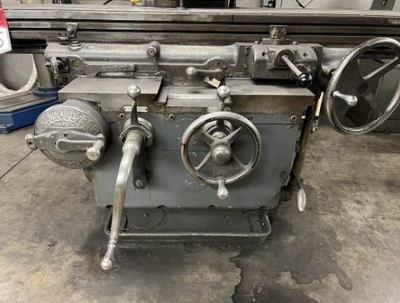

Mono Lever Table Control
Motor On Knee
Power Rapid Traverse
(4) Tool Holders
Coolant System (Built-In)
Table Dimensions (Overall), W x L 15-1/2" x 80"
Longitudinal Table Travel (X-Axis) 42"
Cross Saddle Travel (Z-Axis) 14"
Vertical Knee Travel (Y-Axis) 18"
Spindle Taper #50 NSTD

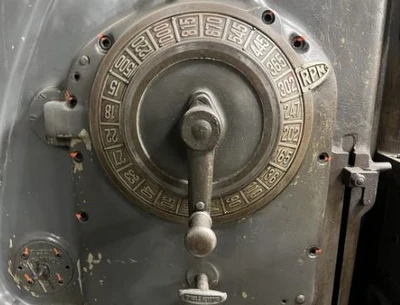

(24) Spindle Speeds, Range 15 to 1500 RPM
(32) Longitudinal and Cross Feeds 3/8 to 90 IPM
(32) Vertical Feeds, Range 1/8 to 30 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 50 IPM
Spindle Motor, Horsepower 15 HP
Floor Space Required, W x D 9'1" x 7'2"
Overall Height 5'9"
Weight, Approximately 13,500 LBS
F.O.B. OUR WAREHOUSE
