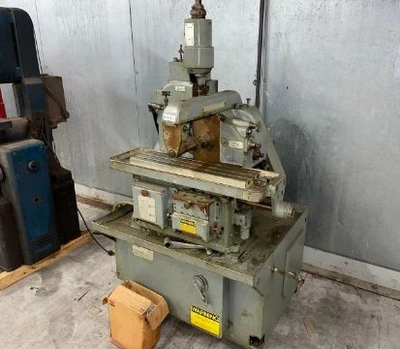

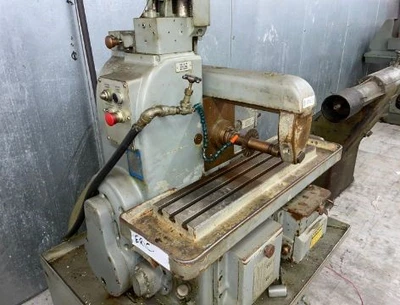

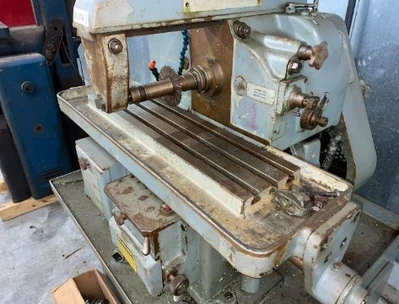

0-12 CINCINNATI- MILACRON SIMPLEX "RISE & FALL" AUTOMATIC HORIZONTAL-SPINDLE PRODUCTION MILL w/ARBOR SUPPORT - EXTRA CUTTERS - SOME CHANGE GEARS

Table Dimensions (Overall) W x L 11.12" x 36.44"

Table Working Surface, W x L 6.5" x 27.69"

Table Longitudinal Travel (X-Axis) 12"

Spindle-Head Vertical Travel, Hand 4.5"

Spindle-Head Vertical Travel, Power 2.5"

Spindle-Center to Table-Top, Minimum 1.5"

Spindle-Center to Table-Top, Maximum 8.5"

Horizontal-Spindle-C/L to Table, Min 3.38"

Horizontal-Spindle C/L to Table, Max 4.38"

Quill Diameter 4.25"

Spindle Taper #40 NSTD

(20) Spindle Speeds, Range 80 to 3000 RPM

(16) Longitudinal Table Feeds, Range 1/2 to 20 IPM

Vertical Spindle-Carrier Feeds 1 to 10 IPM

Power Rapid Table Traverse 400 IPM

Floor Space Required, L x D 4'3" x 2'11"

Overall Height 5'9"

Weight, Approximately 2200 LBS

F.O.B. OUR WAREHOUSE
