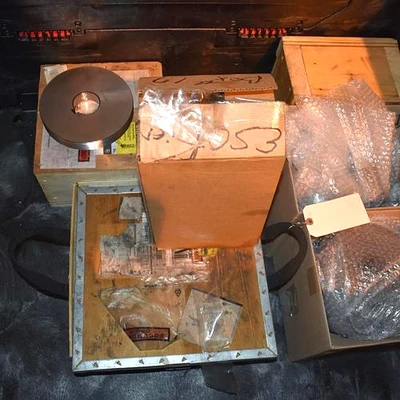

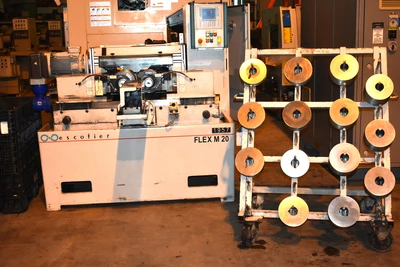

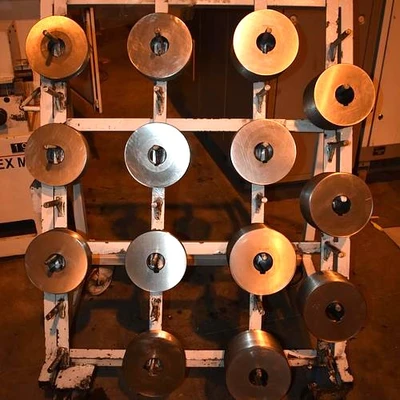

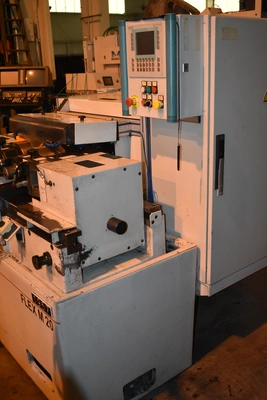

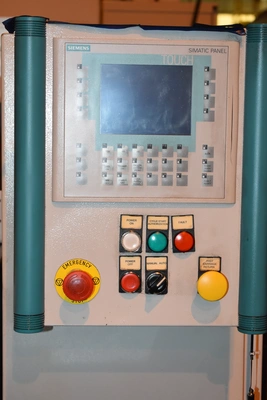

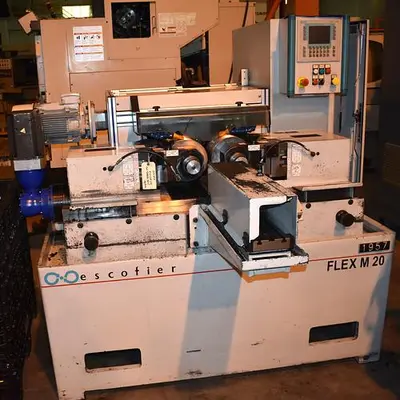

1-1/2” ESCOFIER "FLEX M20 E" CNC HORIZONTAL THRU-FEED IN-FEED THREAD ROLLER w/SIEMENS SIMATIC CNC CONTROL - 20 TON ROLLING FORCE - THREADING DIES & RACK

Workpiece Diameter, Maximum 1.2" 30 MM

Workpiece Diameter, Minimum 0,39" 10 MM

Workpiece Diameter Outside Rolling, Max 4.84" 123 MM

Working Center Distance, Maximum 11.2" 285 MM

Working Center Distance, Minimum 5.31" 135 MM

Rolling Force Tonnage 20 TONS 200 kn

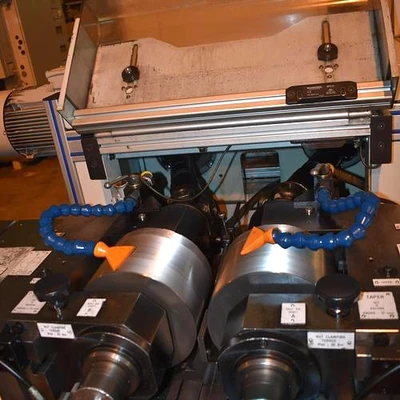

Roll-Die Shaft Diameters 2.75" 69.85 MM

Rolling Shaft Length, Range 3.9" to 6.3"

Rolling Shaft Length, Range 100 to 160 MM

Roll Die Diameter, Maximum 8.66" 220 MM

Roll Die Diameter, Minimum 5.9" 150 MM

Roll Die Rotation Speed, Range 1 to 50 RPM

Rotation Speed, Phasing Adjustment 1 to 10 RPM

Shaft Inclination, Helical Correction +/- 6-DEGREES

Shaft Inclination, Taper Correction +/- 22-DEGREES

Shaft Inclination, Taper Correction +/- 7.8/1000 CONE

Overall Dimensions, L x W 98" x 86"

Overall Height 86"

Weight Approximately 13200 LBS 6000 KG

NOTE: The Purpose Of This Machine Is To Cold-Form

Profiles By Rolling, Such As Threads, Splines, Gears,

Worm Screws, etc. On Steel Workpieces Produced

By Conventional Rolling Or Produced From Sintered

Powders. Two Thread Rolling Modes Are Used By

Positioning Based On The Programming. Plunge-Feed

Thread Rolling For Short Workpieces. Thru-Feed Thread

Rolling For Long Workpieces.

Replacement Price Is Over $230,000.00 For The Basic

Machine.

F.O.B. OUR WAREHOUSE
