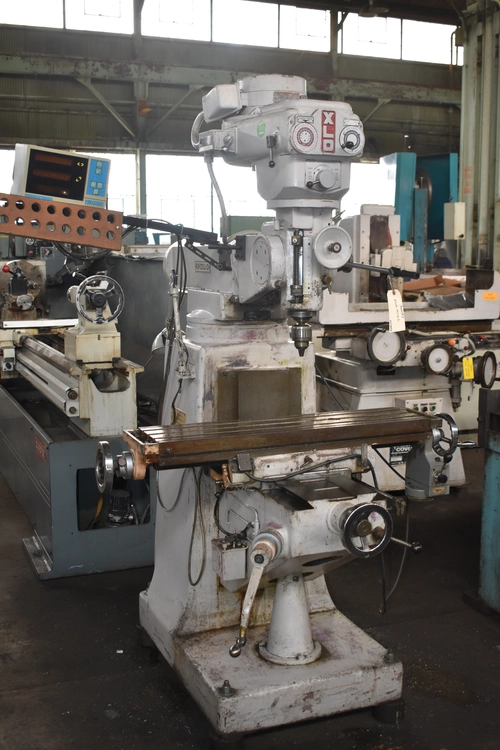

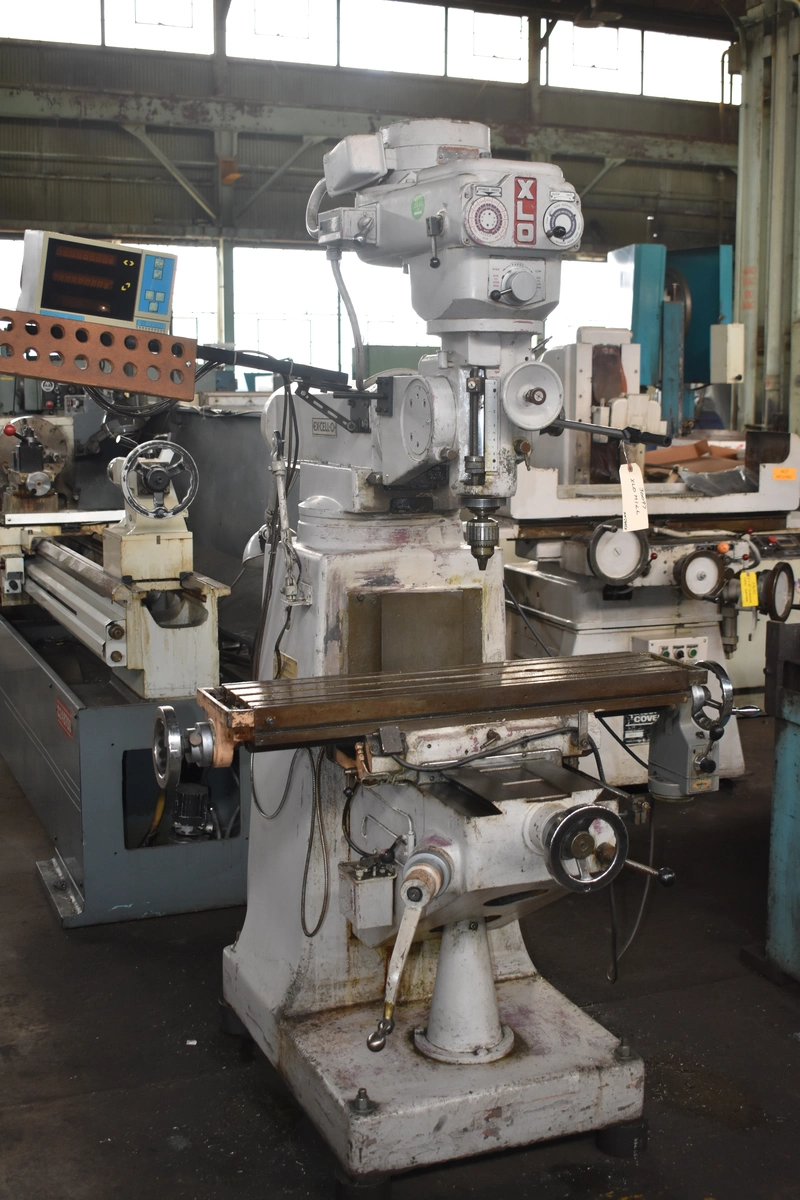

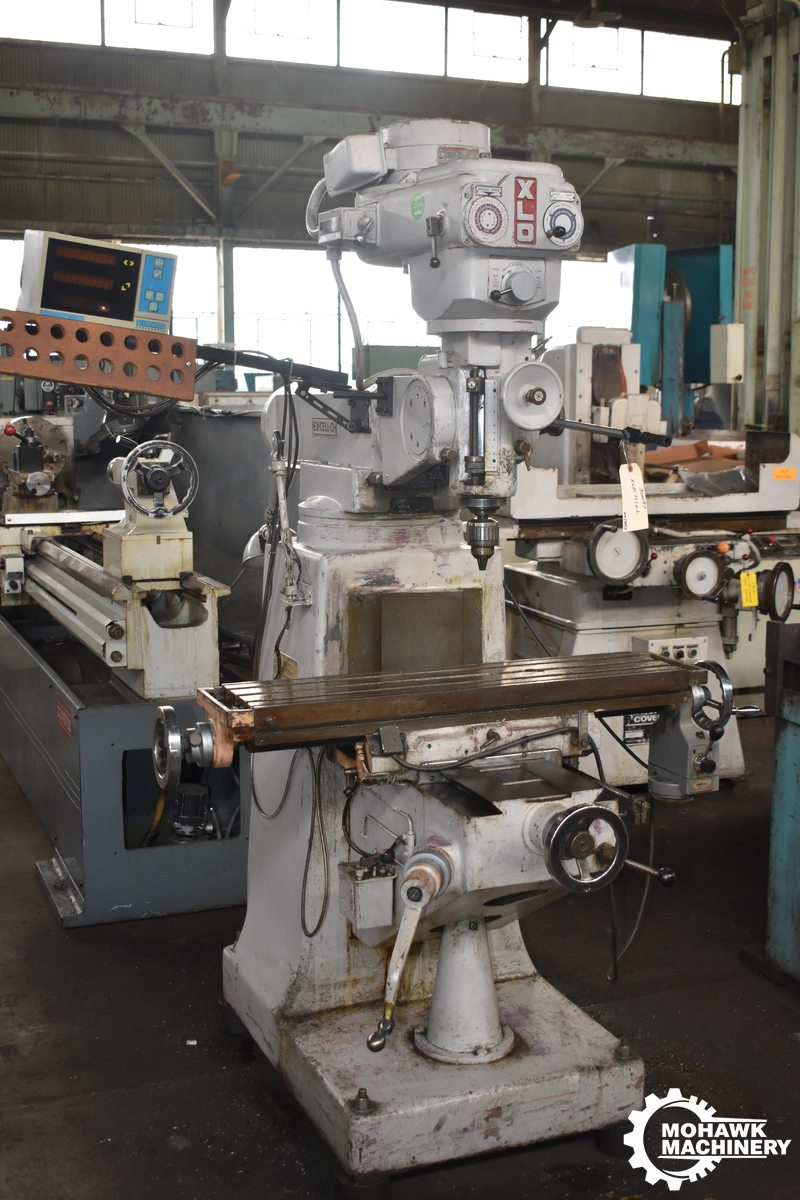

602 EXCELLO RAM TURRET VERTICAL MILL w/NEWELL DIGITAL READOUTS - POWER TABLE FEED

602 EXCELLO RAM TURRET VERTICAL MILL
Serial No 602-5696, Model 602,

EQUIPPED WITH:
Newall "Digipac 600" Digital Readouts
Power Longitudinal Table Feed
Power Down-Feed to Quill
360 Degree Turret Rotation

CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 9" x 36"
Table Longitudinal Travel (X-Axis) 25"
Table Cross Travel (Y-Axis) 13"
Knee Vertical Travel (Z-Axis) 16"
Ram Travel, In/Out 16"
Quill Travel 6"
Spindle Taper #R-8
Spindle-Head Swivel, Forward/Back 45-DEGREES
Spindle-Head Swivel, Right/Left 90-DEGREES
Spindle Speeds, Range 100 to 3800 RPM
(3) Quill Feeds, Range .0015 to .006
Electrical System 220-440/3/60
Weight, Approximately 2500 LBS
F.O.B. OUR WAREHOUSE
