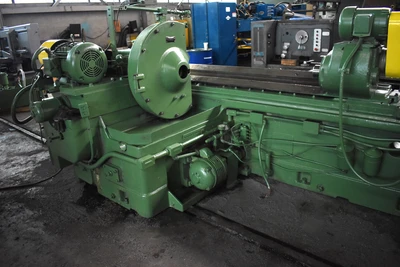

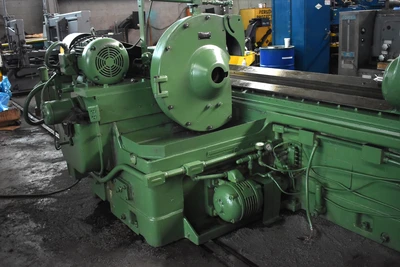

10" x 96" CINCINNATI-MILACRON "ER" PLAIN HYDRAULIC CYLINDICAL GRINDER w/UPDATED EMERSON VARIABLE SPEED DRIVE - SONY DIGITAL READOUTS

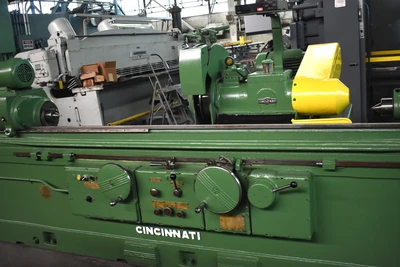

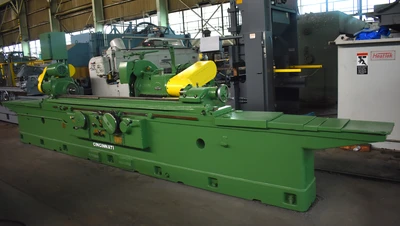

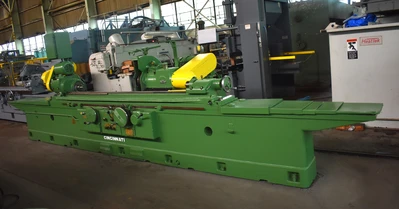

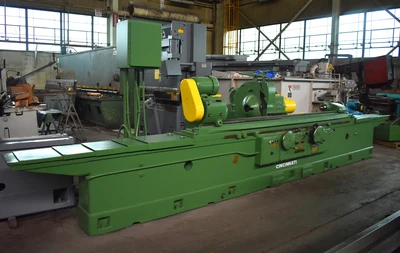

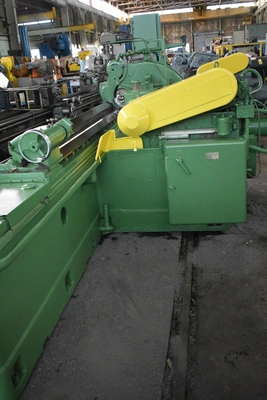

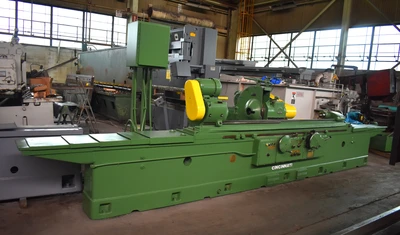

10" x 96" CINCINNATI-MILACRON "ER" PLAIN
HYDRAULIC CYLINDRICAL GRINDER
Serial No 3P2H1W, Model ER,

EQUIPPED WITH:
Sony Single Axis Digital Readout

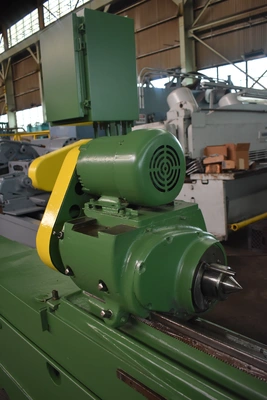

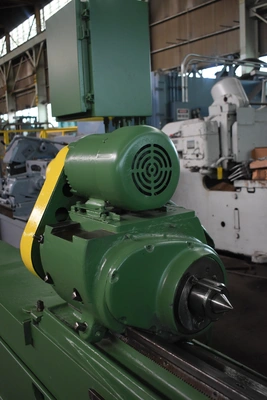

Updated Workhead w/Emerson Variable Speed Drive
2 Follow Rests
Lever & Screw Type Tailstock
Filmatic Spindle Bearings

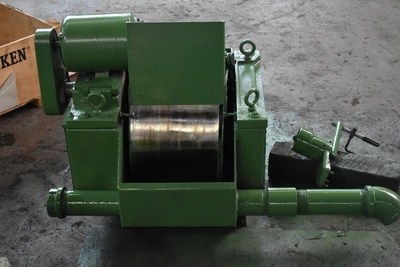

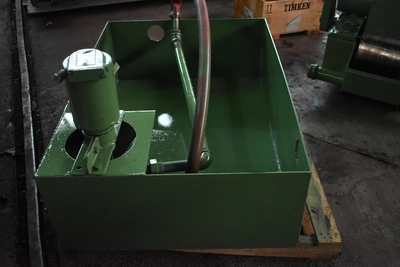

Coolant System w/Barnes Magnetic Seperator

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 10.937"
Grinding Diameter, Maximum 10"
Distance Between Centers, Maximum 96"
Grinding Wheel Diameter, Standard 30"
Grinding Wheel Width, Maximum 3"
Grinding Wheel Hole Diameter 20"
Table Swivel Taper Toward Wheelhead 2.75" TPF
Table Swivel Taper Away Wheelhead 1" TPF
Table Swivel Angle Toward Wheelhead 6-DEGREES
Table Swivel Angle Away Wheelhead 2-DEGREES
Workhead and Tailstock Center Tapers #12 B&S
Table Longitudinal Feeds, Infinite 3 to 220 IPM
Grinding Wheelhead Spindle Motor 15 HP/1760 RPM
Floor Space Required, L x D 290" x 84"
Weight, Approximately 15100 LBS
F.O.B. OUR WAREHOUSE
