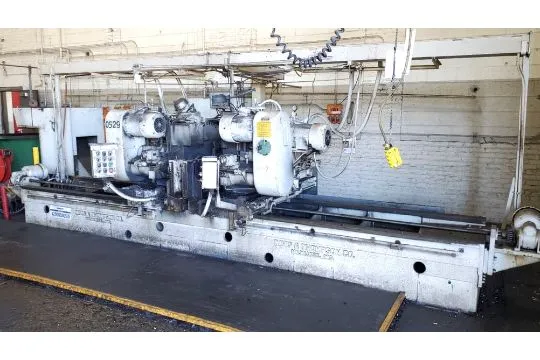

8" x 144" DAVIS & THOMPSON DOUBLE-END FACING MILLING DRILLING & CENTERING MACHINE w/20 HP MILLING HEADS & 7.5 HP DRILLING HEADS w/ACU-RITE DIGITAL READOUTS
Have one to sell?
$22,500.00 USD
ConditionUsed
1 available
8" X 144" DAVIS & THOMPSON DOUBLE-END FACING
MILLING DRILLING & CENTERING MACHINE
Serial No 1288,

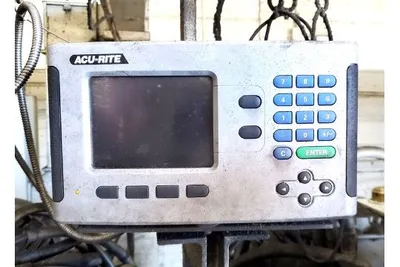

Acu-Rite Digital Readouts
Centering Capability

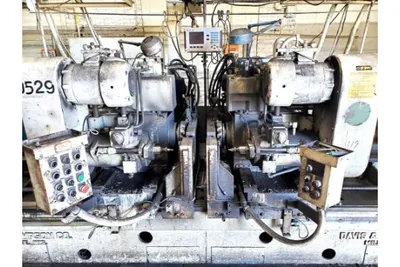

Drilling Heads: (2) 7.5 HP (each)
Milling Heads: (2) 20 HP (each)
Hydraulic Self Centering Clamping Vises
Some Tooling
Work Diameter Capacity, Maximum 8"
Work Length Capacity, Maximum 144"
(2) Milling Spindle Motors, HP/RPM 20 HP/ RPM
(2) Drilling Spindle Motors, HP 7.5 HP
(2) Hydraulic Motors, HP 5 HP
(2) Feed Motors, HP 1.5 HP
Electrical System 220-440/3/60
Overall Dimensions, W x D 266" X 98"
Overall Height 7'8"
NOTE: These Specifications Are As Taken From A
Close Physical Inspections And Previous Owner's
Records However We Were Not Able To Actually
See Serial Number On This Machine.
F.O.B. OUR WAREHOUSE
