3" MODERN "3K-LH" AUTOMATIC PIPE-TUBE-BAR CUTOFF LATHE w/UPDATED ALLEN BRADLEY CONTROL - 20’ AUTOMATIC BAR FEED - 11’ OVERHEAD MICROMETER STOCK-STOP

Have one to sell?

sales@mohawkmachinery.com

$24,500.00 USD

ConditionUsed

Quantity

1 available

MODERN 3K-LH Tube & Pipe Machinery (Cut-Offs & Swagers) | Mohawk Machinery (1)

MODERN 3K-LH Tube & Pipe Machinery (Cut-Offs & Swagers) | Mohawk Machinery (2)

MODERN 3K-LH Tube & Pipe Machinery (Cut-Offs & Swagers) | Mohawk Machinery (3)

MODERN 3K-LH Tube & Pipe Machinery (Cut-Offs & Swagers) | Mohawk Machinery (4)

MODERN 3K-LH Tube & Pipe Machinery (Cut-Offs & Swagers) | Mohawk Machinery (5)

MODERN 3K-LH Tube & Pipe Machinery (Cut-Offs & Swagers) | Mohawk Machinery

Have one to sell?

Overview

Type:

Tube & Pipe Machinery (Cut-Offs & Swagers)

Manufacturer:

Model:

3K-LH

Stock #:

30114

Status:

For Sale

Description

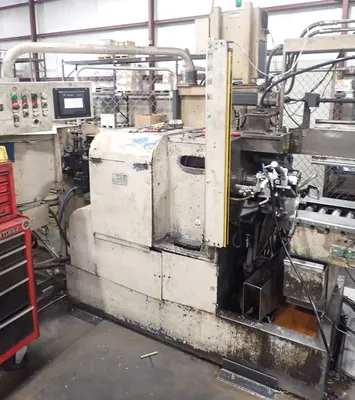

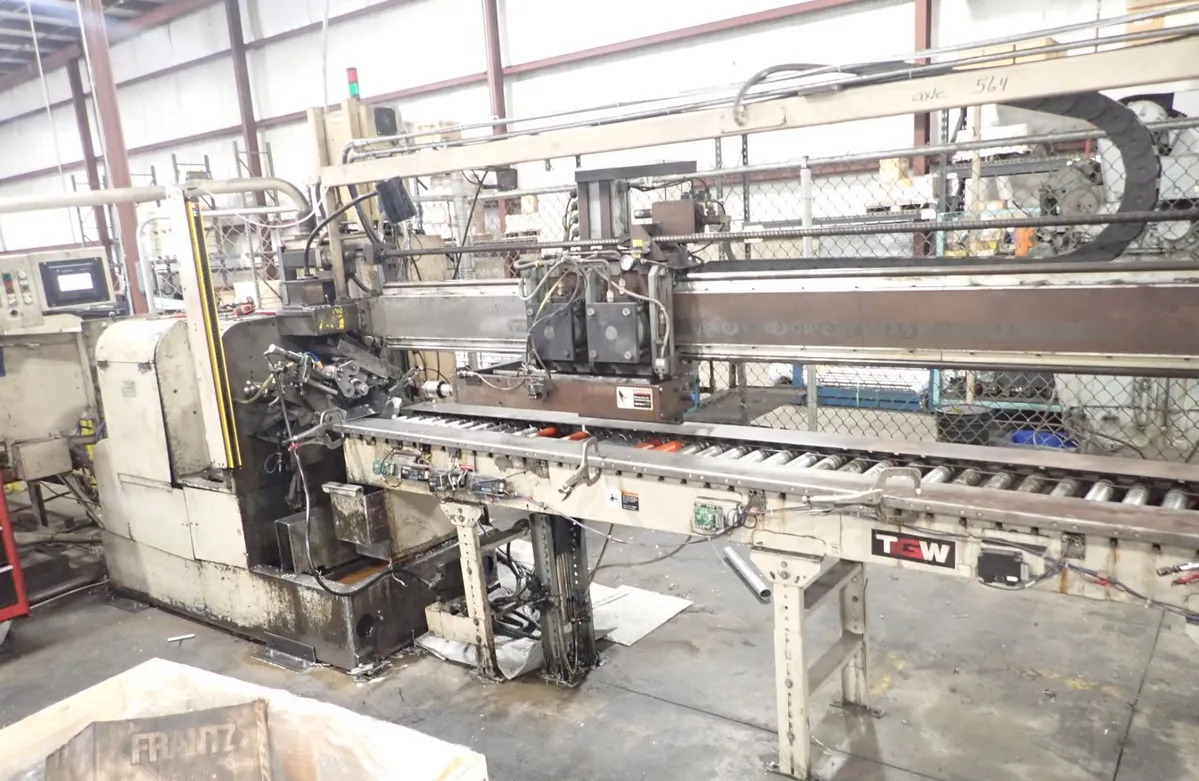

3" MODERN #3K-LH AUTOMATIC PIPE-TUBE-BAR CUT-OFF-LATHE

Serial No 3K3225LH, Model 3K-LH

Equipped With

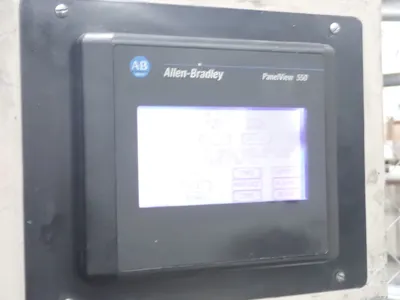

Updated Allen Bradley Panel View 550 PLC

Controls

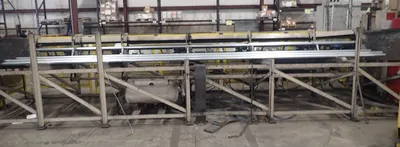

20' Modern Automatic Bar-Feed System

11' Overhead Micrometer Stock-Stop

Allowing 8' Cut-Off Length

Front and Rear Cut-Off Slides

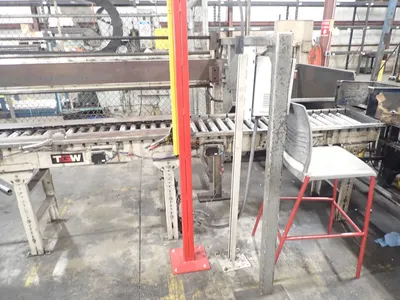

15' Exit Roller Conveyor

Specifications

ImperialMetric

Max Diameter	3"	76.2 mm

Diameter Capacity, Minimum 1/4" 6MM

Diameter Capacity, Maximum 3-1/8" 79MM

Wall Capacity, Maximum 1-1/2" 38MM

Solid Bar Capacity, Maximum 3" 76MM

Stock-Stop Length Adjustment 8'

Spindle Speeds, Range 130 to 2000 RPM

Stock Feed Rate 160 FPM 49 MPM

Main Motor, Horsepower/RPM 5 HP

Motor Voltage 440 Volts

F.O.B. OUR WAREHOUSE
