48/60" BLANCHARD "32-48" VERTICAL SPINDLE ROTARY SURFACE GRINDER w/SEGMENTED GRINDING WHEEL - 60 HP MOTOR
Have one to sell?
$44,500.00 USD
ConditionUsed
1 available

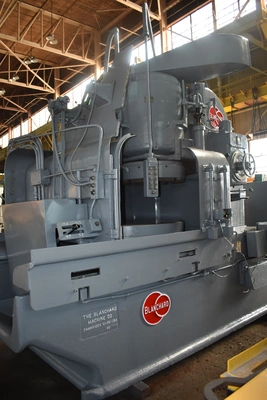

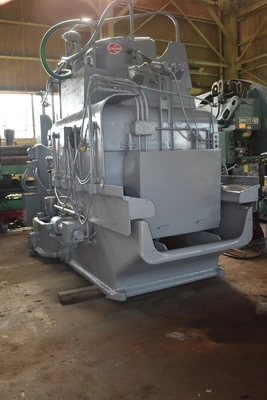

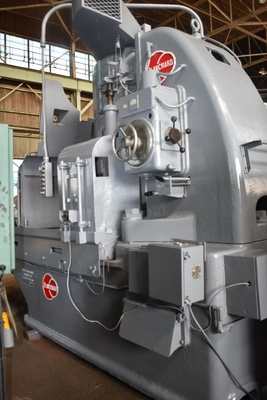

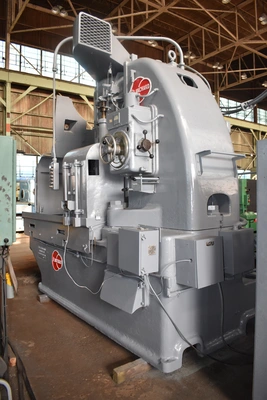

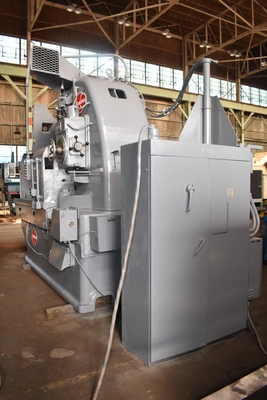

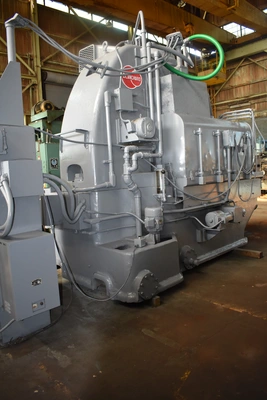

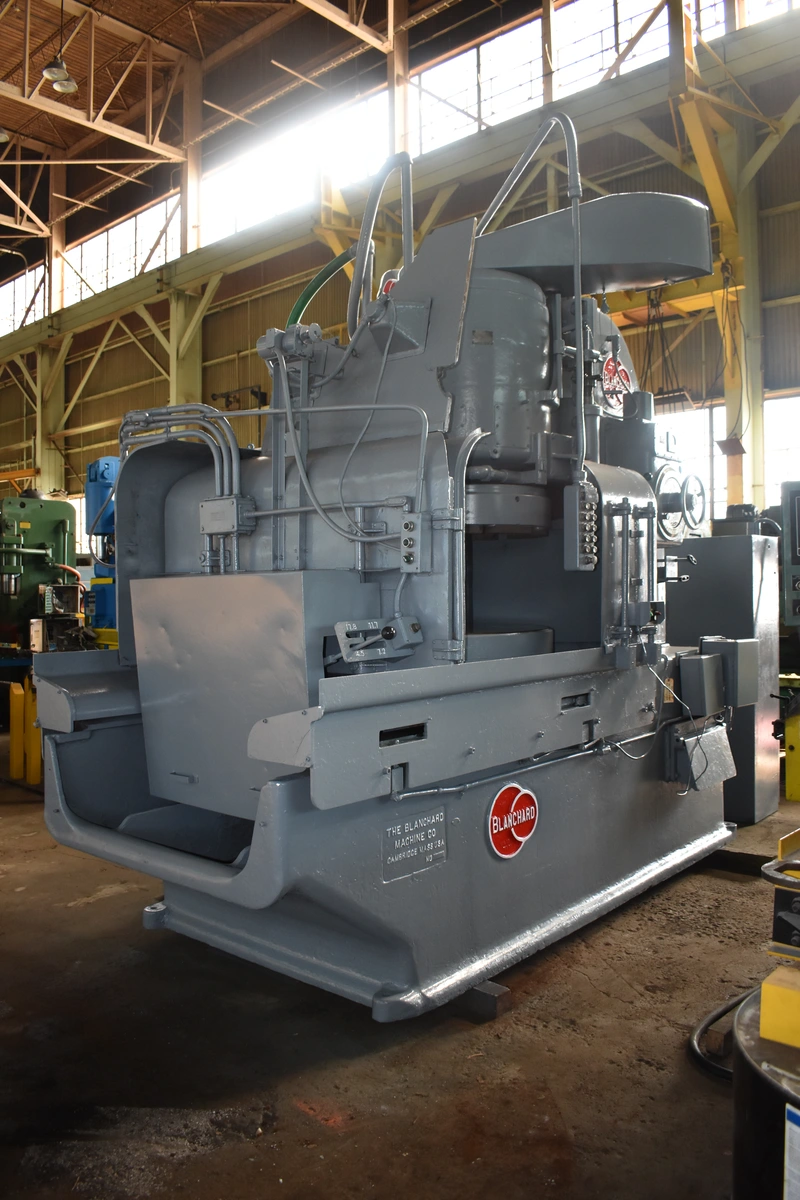

48/60" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 9802, Model 32-48

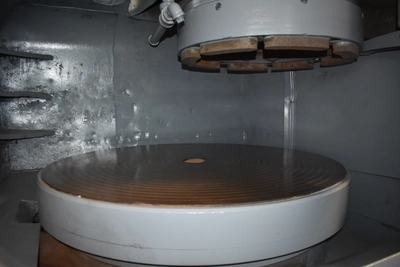

Updated 48" Diameter Magnetic Chuck
w/Magna-Flux Controller Variable Neutrofier
32" Segmented Grinding Wheel
60 HP Spindle Motor - 16" Vertical Range
Centromatic Lubrication System
Coolant System (Built-In)
Magnetic Chuck, Diameter 48"
Swing Diameter Inside Workguards 60"
Grinding Vertical Range, Maximum 16"
Grinding Wheel Speed 514 RPM
Chuck Speeds, Range 3 to 13 RPM
Power Down Feeds, Range .000 to .005 IPR
Spindle Motor, Horsepower 60 HP
Chuck Rotation Motor 5 HP
Electrical System 440/3/60
Overall Dimensions, L x W 12'4" x 7'1"
Overall Height 10'9"
Weight, Approximately 34000 LBS
F.O.B. OUR WAREHOUSE
