10' KOMATSU "PHS110x310" 120-TON WIDE-BED HYDRAULIC PRESS BRAKE w/18” x 122” T-SLOTTED BED & RAM
Have one to sell?
$16,500.00 USD
ConditionUsed
1 available

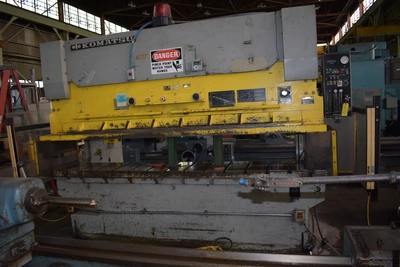

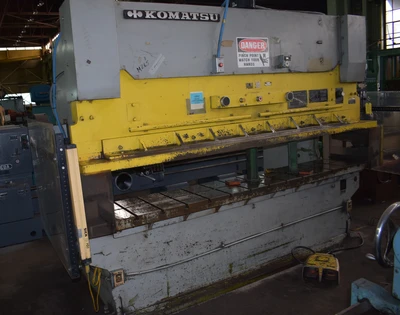

10' KOMATSU 120 TON WIDE-BED HYDRAULIC
PRESS BRAKE

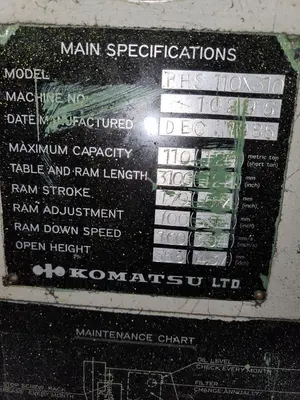

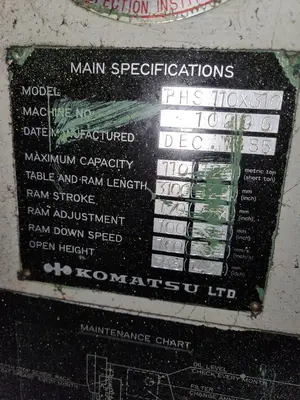

Serial No 10296, Model PHS 110X310

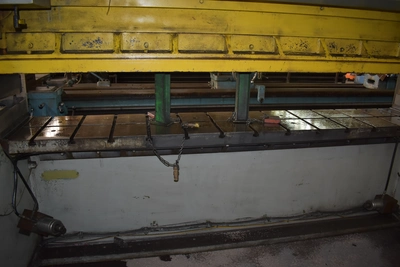

18" x 122" T-Slotted Wide Bed Attachment
18" x 122" Extra Wide Ram Attachment w/Bolt On
Angle Plates
Electric Depth-Stop Adjustment

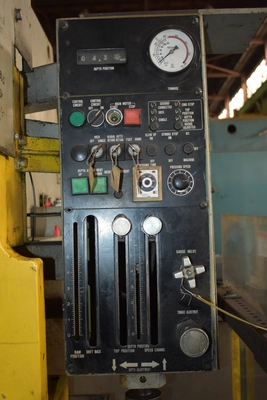

Dual Pedal Foot Control
Variable Speed Pressing
Tonnage Indicator
Tonnage Capacity, Short Tons 120 TON
Overall Length Of Bed And Ram 122"
Distance Between Housings 105"
Stroke Length 6.7"
Open Height 14.4"
Throat Depth 15.7"
Ram Adjustment 3.9"
Ram Speed, Approach 3.93 IPS
Ram Speed Working, Range .20 to .39 IPS
Ram Speed, Return 65 IPS
Overall Dimensions, L x D 12'2" x 4'10"
Overall Height 7'9"
Weight Approximately 14,500 LBS
NOTE: The Die Set In The Photos Is NOT included with
This Machine. Previous Owner Kept It.
F.O.B. OUR WAREHOUSE
