8' CINCINNATI-INC 175 TON "175AFx6FT" AUTOFORM CNC PRESS BRAKE w/AUTOFORM CNC CONTROL

8' CINCINNATI-INC 175 TON "175AFx6FT" AUTOFORM CNC PRESS BRAKE w/AUTOFORM CNC CONTROL

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$34,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Brakes (Press Brakes)
Manufacturer:
CINCINNATI-INC
Model:
175AFX6FT
Year:
2002
Stock #:
30129
Status:
For Sale

Description

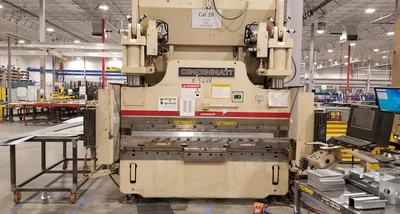

8' CINCINNATI-INC 175-TON "AUTOFORM" CNC

HYDRAULIC PRESS BRAKE

New 2002, Serial No 52629, Model 175AFX6'

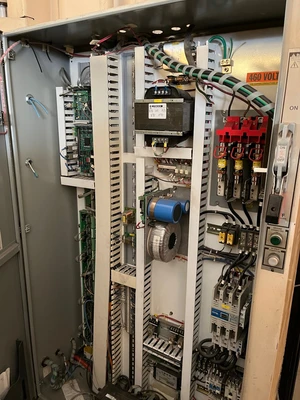

Autoform CNC Controls

CNC Crownable Filler Block

Operators Stand

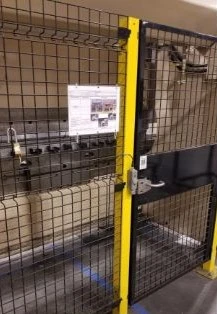

Black Max Link Lite Light Curtains

No Pit Required

Tonnage175 T158.758 t
TypeHYDHYD
Overall Length8'2.4 m
Between Housings6.56'2 m
Stroke10"254 mm
Weight19500 LBS19500 LBS

Tonnage Capacity, Rated 175 TON

Tonnage Capacity @ Full Forming Speed 190 TON

Overall Length of Bed and Ram 8'

Distance Between Housings 6'6-3/4"

Bending Capacity 6'3' x 3/8"

Stroke Length 10"

Open Height 17"

Closed Height 7"

Throat Depth 8"

Ram Speed, High Approach 260 IPM

Ram Speed, Variable Forming 1 to 65 IPM

Ram Speed, Variable Return 1 to 290 IPM

Hydraulic Motor, Horsepower 25 HP

Weight, Approximately 19500 LBS

NOTE: This Machine Does Not Come Equipped With

A Back Gauge

F.O.B. OUR WAREHOUSE
