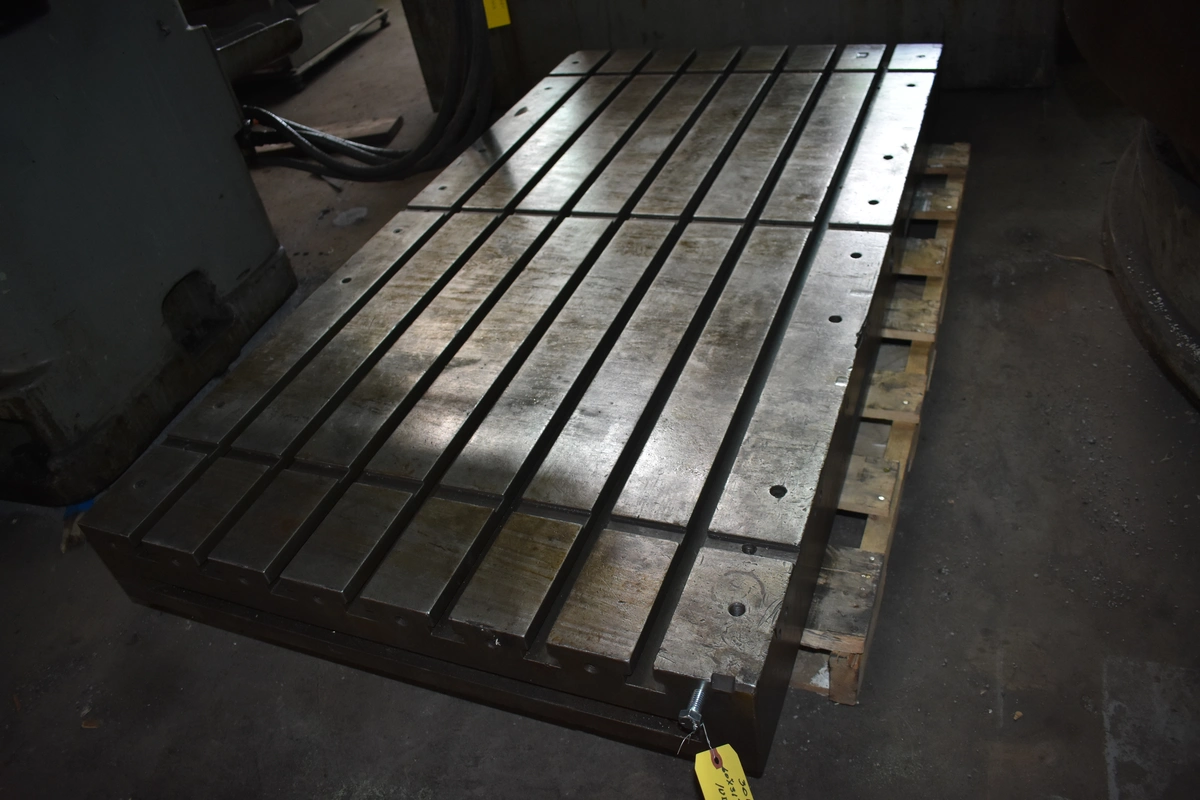

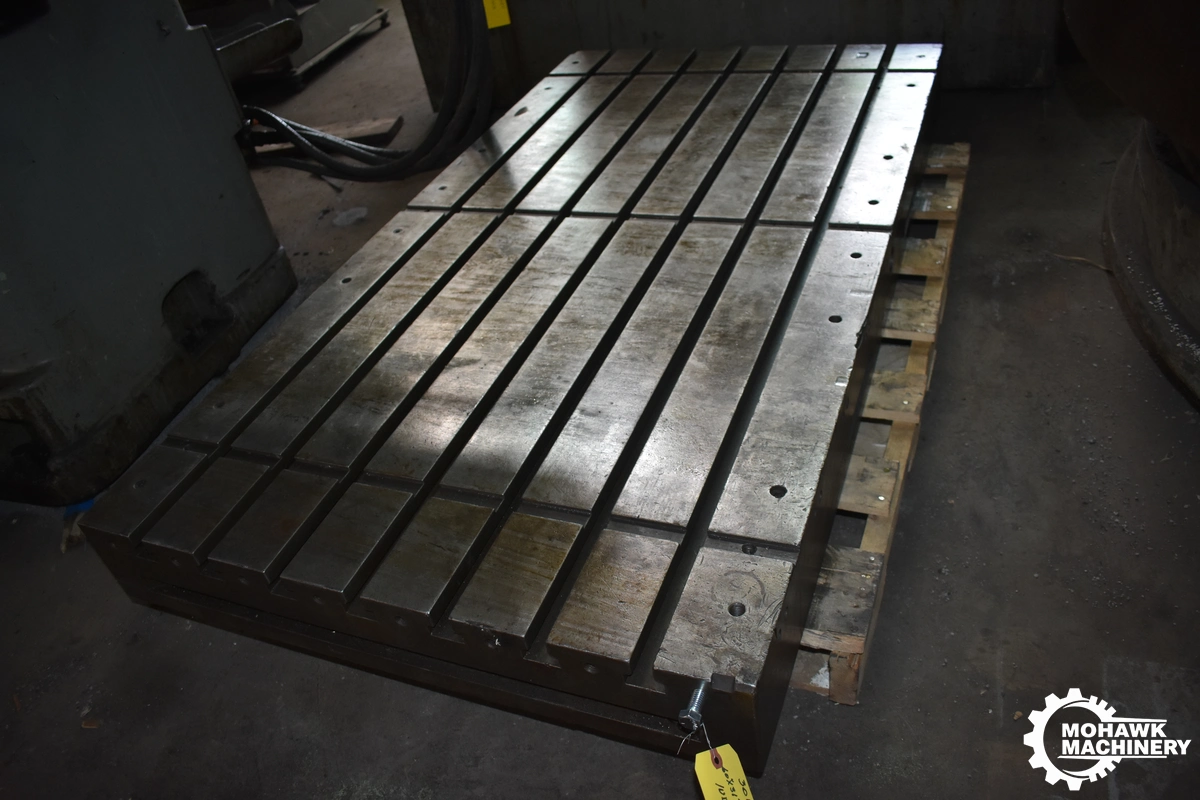

60" X 32" X 5" DEVLIEG JIGMILL "TYPE-E" LAYOUT INDEX TABLE w/ADJUSTING BASE

36" x 36" x 2" Slotted Base For Adjusting

Locating Hole

Heavy-Box Section Casting

CATALOG SPECIFCATIONS:

Overall Table Dimensions, L x W 60" x 32"

Table Thickness 5"

Number Of T-Slots (7)

Base Dimensions:

Overall Dimesions, L x W x H 36" x 36" x 2"

Number Of Work Holding Slots (10)

Number Of Threaded Work Holding Holes (35)

NOTE: This Table Was Originally Designed To Be Used

With A DeVlieg Jigmill Allowing An Accurate Means

For Boring Gear Cases, Precision Parts, Etc., From

Two, Three, Or Four Sides Without Resetting Workpiece.

Obviously This Table Could Be Used For Any Layout

Type Work.

F.O.B. OUR WAREHOUSE
