4" SHIBAURA "BT-10B-R1" TABLE-TYPE HORIZONTAL BORING MILL w/44” x 49” BUILT-IN ROTARY TABLE - ACU-RITE DIGITAL READOUTS - POWER DRAW BAR - FULL PENDANT CONTROL
Have one to sell?
$29,500.00 USD
ConditionUsed
1 available

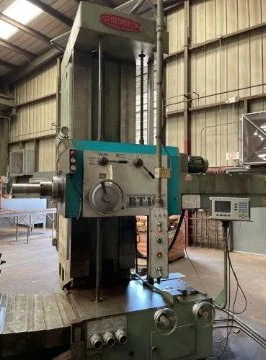

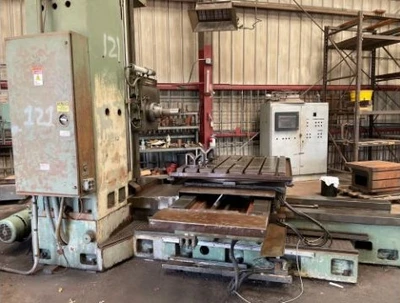

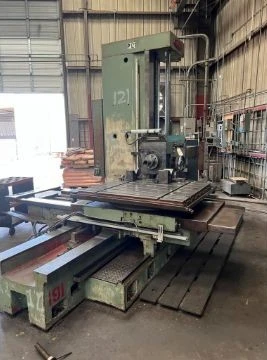

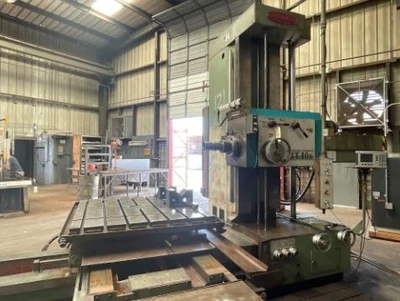

4" SHIBAURA TABLE-TYPE HORIZONTAL BORING MILL
New 1981, Serial No 161073, Model BT-10B-R1

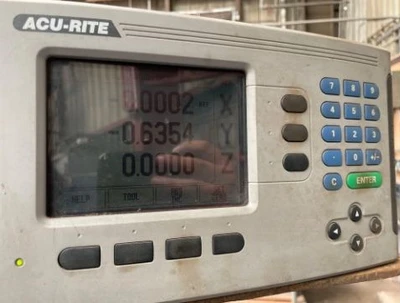

Acu-Rite Digital Readout

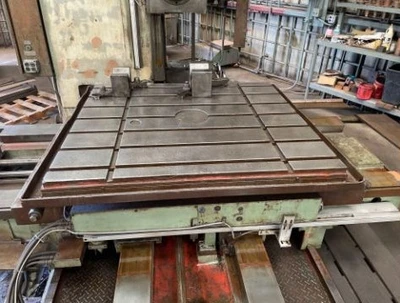

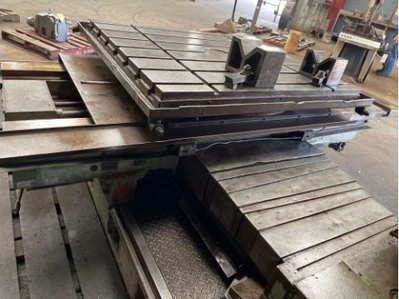

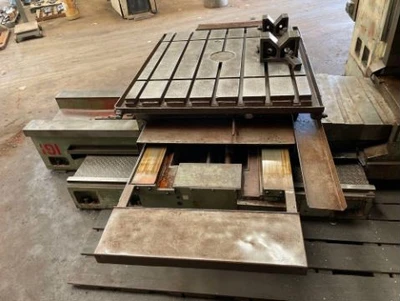

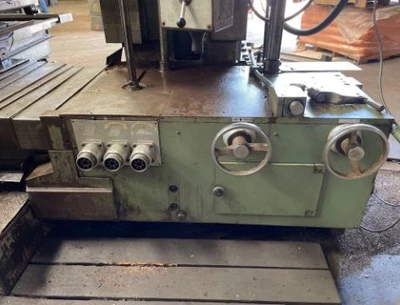

44" x 49" Built-In Rotary Table

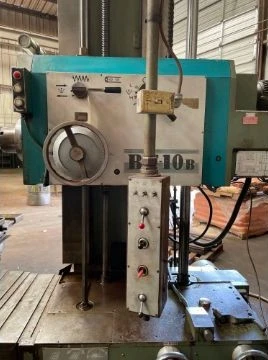

Full Pendant Controls
Power Draw Bar
Spindle Diameter ………. 3.94"
Milling Spindle Diameter ………. 8.86"
Spindle Taper ………. #50
Vertical Headstock Travel ………. 49"
Cross Table Travel ………. 55"
Saddle Travel (In & Out) ………. 44.5"
Spindle Travel (In & Out) ………. 28"
Table Size (Built-In Rotary Table) ………. 42.9" x 49"
(16) Spindle Speeds ………. 14-1000 RPM
Spindle Feeds ………. .0009-.67 IPR
Rapid Traverse ………. 126 IPM
Motor, Horsepower ………. 15 HP
Floor Space, Required L x W ………. 189" x 158"
Overall Height ………. 120"
Weight Approximately ………. 34000 LBS
F.O.B. OUR WAREHOUSE
