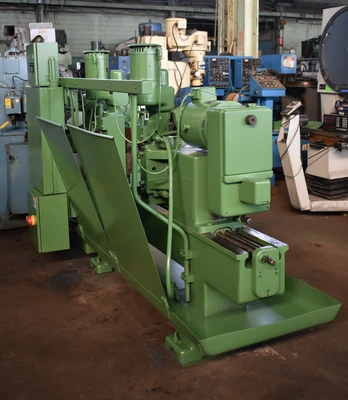

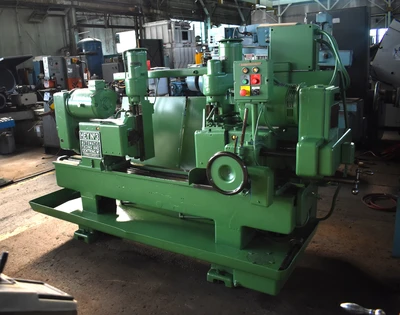

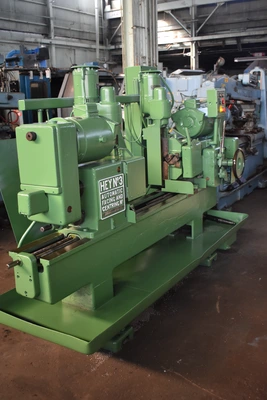

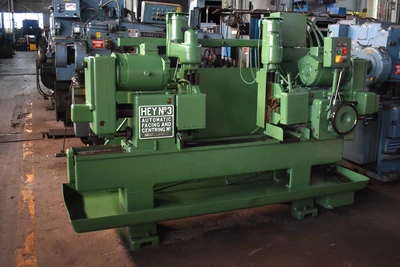

6.25" x 51" HEY "3" AUTOMATIC DOUBLE-END FACING & CENTERING MACHINE w/7.5 HP CENTERING HEADS - (2) SELF CENTERING AIR CLAMPING VISES

Work Diameter Capacity, Minimum .......... 0.25"

Work Diameter Capacity, Maximum .......... 6.25"

Work Diameter Capacity, Large Vises .......... 8.5"

Work Length Capacity, Minimum .......... 0.75"

Work Length Capacity, Maximum .......... 51"

Swing Over Bed, Maximum .......... 21"

Facing Diameter w/Standard Cutters .......... 3.34"

Facing Diameter w/Standard Cutters .......... 3.93"

Facing Diameter w/Standard Cutters .......... 5.12"

Spindle Tapers .......... #40 NSTD

(18) Spindle Speeds, Range .......... 18 to 980 RPM

(8) Feeds, Range .......... .001 to .018 IPR

(2) Spindle Motors, HP/RPM .......... 7.5 HP/1725 RPM

Overall Dimensions, L x W .......... 11'8" x 6'

Overall Height .......... 6'10"

Weight, Approximately .......... 5880 LBS

NOTE: In Addition To Facing & Centering Other Operations

Can Be Performed Using This Machine Including Turning,

Drilling, Boring, Coning And Chamfering.

F.O.B. OUR WAREHOUSE
Centering Heads: (2) 7.5 HP (each)
Work Diameter Capacity, Maximum: 6.25"
Work Length Capacity, Maximum: 51"
Swing Over Bed, Maximum: 21"
Facing Diameter w/Standard Cutters: 3.34"
Facing Diameter w/Standard Cutters: 3.93"
Facing Diameter w/Standard Cutters: 5.12"
Spindle Tapers: #40 NSTD
(18) Spindle Speeds, Range: 18 to 980 RPM
(8) Feeds, Range: 001 to .018 IPR
(2) Spindle Motors, HP/RPM: 7.5 HP/1725 RPM
Overall Height: 6'10"
Weight, Approximately: 5880 LBS
Work Diameter Capacity, Minimum: 0.25"
Work Length Capacity, Minimum: 0.75"
