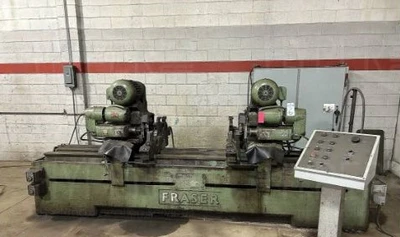

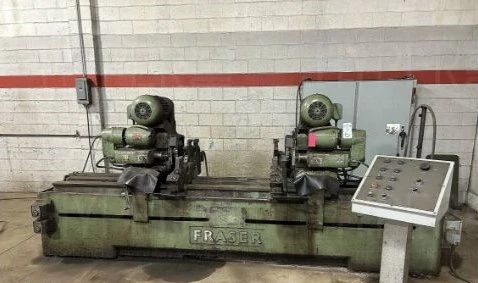

8" X 108" GIDDINGS & LEWIS "ENDOMATIC" DOUBLE-END
MILLING DRILLING CHAMFERING BORING & CENTERING MACHINE

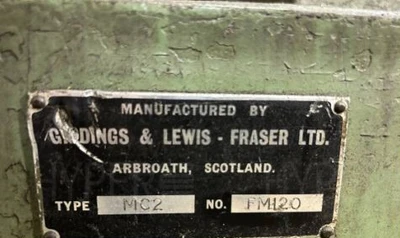

Serial No FM-120, Model MC,
Series "ENDOMATIC"
Boring Capability
Centering Heads: (2) 3 HP (each)
Chamfering Capability
Drilling Capability
Spot-Facing Capability

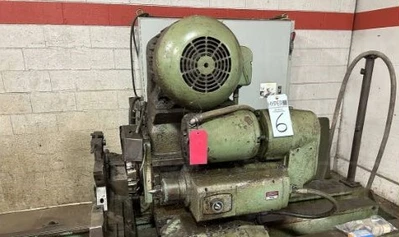

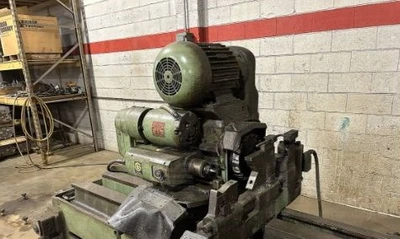

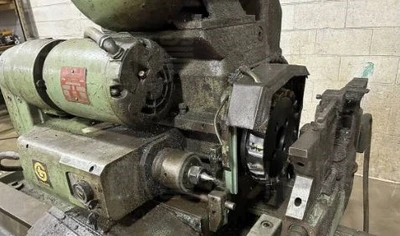

Milling Heads: (2) 10 HP (each)
Sawing Capability

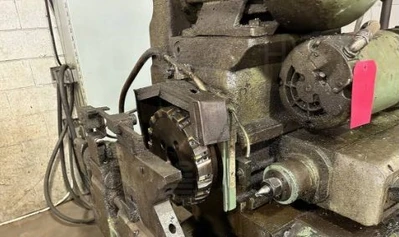

(2) Self Centering Hydraulic Clamping Vises
Hardened & Ground Milling Head Slideways
One-Shot Lubrication System
Coolant System
Work Diameter Capacity, Minimum........ .5"
Work Diameter Capacity, Maximum........ 8"
Work Length Capacity, Maximum.......... 108"
Drilling Feed Stroke, Maximum.......... 2.75"
Drilling Quill Stroke, Maximum......... 8"
Milling Slide Stroke, Maximum.......... 9.75"
Drilling Spindle Speeds, Range......... 377 to 1145 RPM
Milling Spindle Speeds, Range.......... 81 to 283 RPM
Milling Spindle Feeds, Range........... 0 to 150 IPM
Drilling Spindle Feeds, Range.......... .75 to 25 IPM
Milling Head Rapid Traverse............ 150 IPM
Drilling Head Rapid Traverse........... 100 IPM
(2) Milling Spindle Motors, HP......... 10 HP
(2) Drilling Spindle Motors, HP........ 3 HP

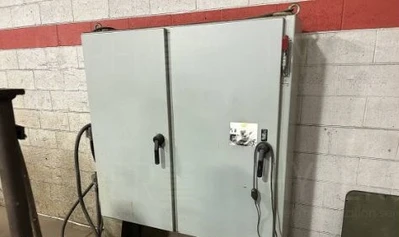

Electrical System...................... 460/3/60
Weight, Approximately 12,000 lbs

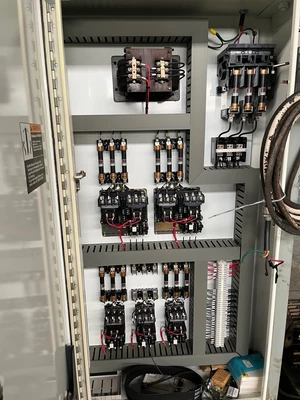

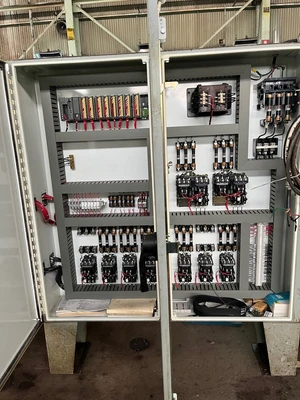

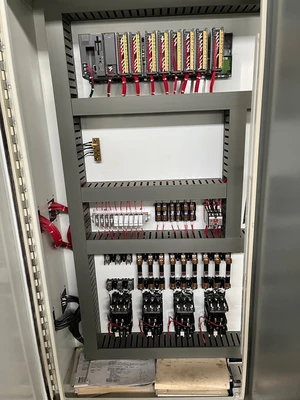

Note: This Machine Had A Complete Electrical Upgrade In 1997.
F.O.B. OUR WAREHOUSE
Centering Heads: (2) 3 HP (each)
Milling Heads: (2) 10 HP (each)
Work Diameter Capacity, Maximum: 8"
Work Length Capacity, Maximum: 108"
Drilling Spindle Speeds, Range: 377 to 1145 RPM
Milling Spindle Speeds, Range: 81 to 283 RPM
