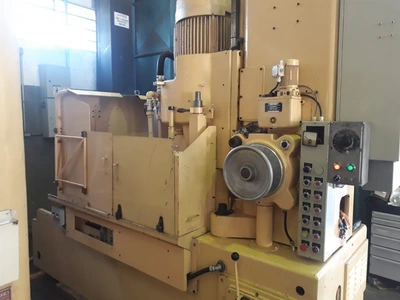

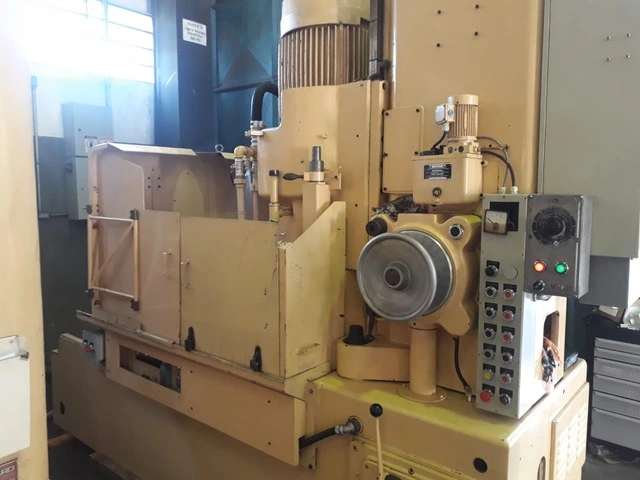

42" BLANCHARD "22HD-42" EXTRA-HIGH HIGH-POWER DRY-BASE VERTICAL SPINDLE ROTARY SURFACE GRINDER w/SEGMENTED GRINDING WHEEL - 75 HP MOTOR - 23” VERTICAL RANGE

42" BLANCHARD HIGH-POWER DRY-BASE
VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 13871, Model 22HD-42

EQUIPPED WITH:
42" Diameter Magnetic Chuck w/Variable Neutrofier
75 HP Spindle Motor (Optional)
Dry Base Design
23" Vertical Range
22" Segmented Grinding Wheel w/(5) Segments
Automatic Lubrication

CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 42"
Swing Between Coolant-Guards 48"
Magnetic Chuck Work Load Capacity 3000 LBS
Grinding Vertical Range, Maximum 23"
Grinding Wheel Speed 672 RPM
(6) Chuck Speeds, Range 6 to 33 RPM
Spindle Motor, Horsepower 75 HP
Chuck Rotation Motor 3 HP
Overall Dimensions, L x W 11'8" x 7'
Overall Height 10'1"
Weight, Approximately 14500 LBS
F.O.B. OUR WAREHOUSE
