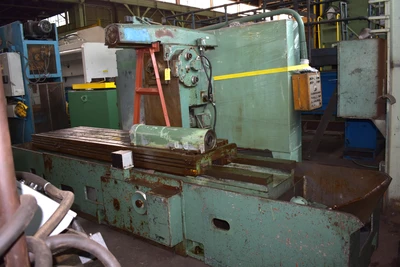

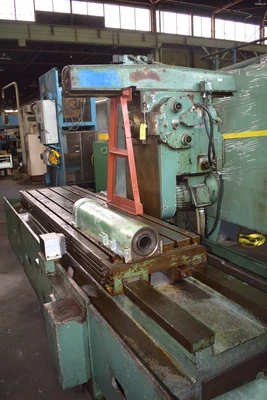

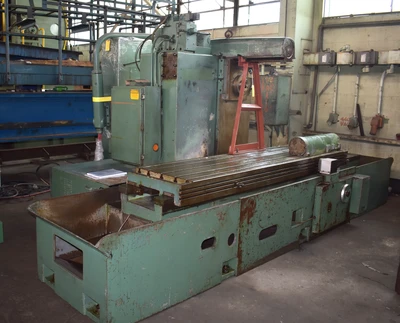

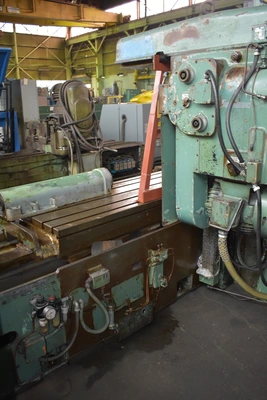

425-266 CINCINNATI-MILACRON "HYPOWERMATIC DL" HORIZONTAL-SPINDLE PRODUCTION MILL w/RISE & FALL HEAD TRAVEL - AUTOMATIC QUILL RETRACTION

Table Dimensions (Overall) W x L 26" x 106"

Table Working Surface, W x L 26" x 96"

Table Longitudinal Travel (X-Axis) 72"

Spindle-Head Vertical Travel (Y-Axis) 17.25"

Quill Cross Adjustment (Z-Axis) 6"

Spindle-Center to Table-Top, Minimum 4.75"

Spindle-Center to Table-Top, Maximum 22"

Table-Center to Spindle-Face, Minimum 9.5"

Table-Center to Spindle-Face, Maximum 15.5"

Quill Diameter 8.5"

Spindle Taper #50 NSTD

Spindle Speeds, Range 30 to 1200 RPM

Longitudinal Table Feeds, Range 1 to 100 IPM

Power Rapid Table Traverse 200 IPM

Spindle Motor, Horsepower 30 HP

Floor Space Required, L x D 15'6" x 8'

Overall Height 6'2"

Weight, Approximately 20000 LBS

F.O.B. OUR WAREHOUSE
