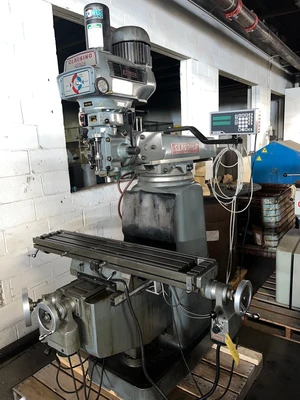

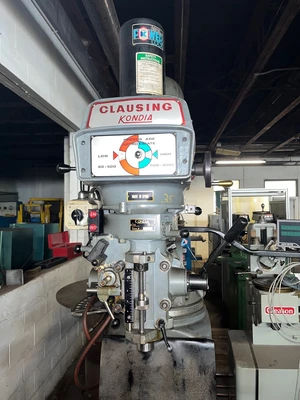

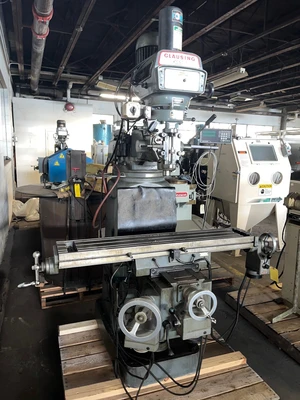

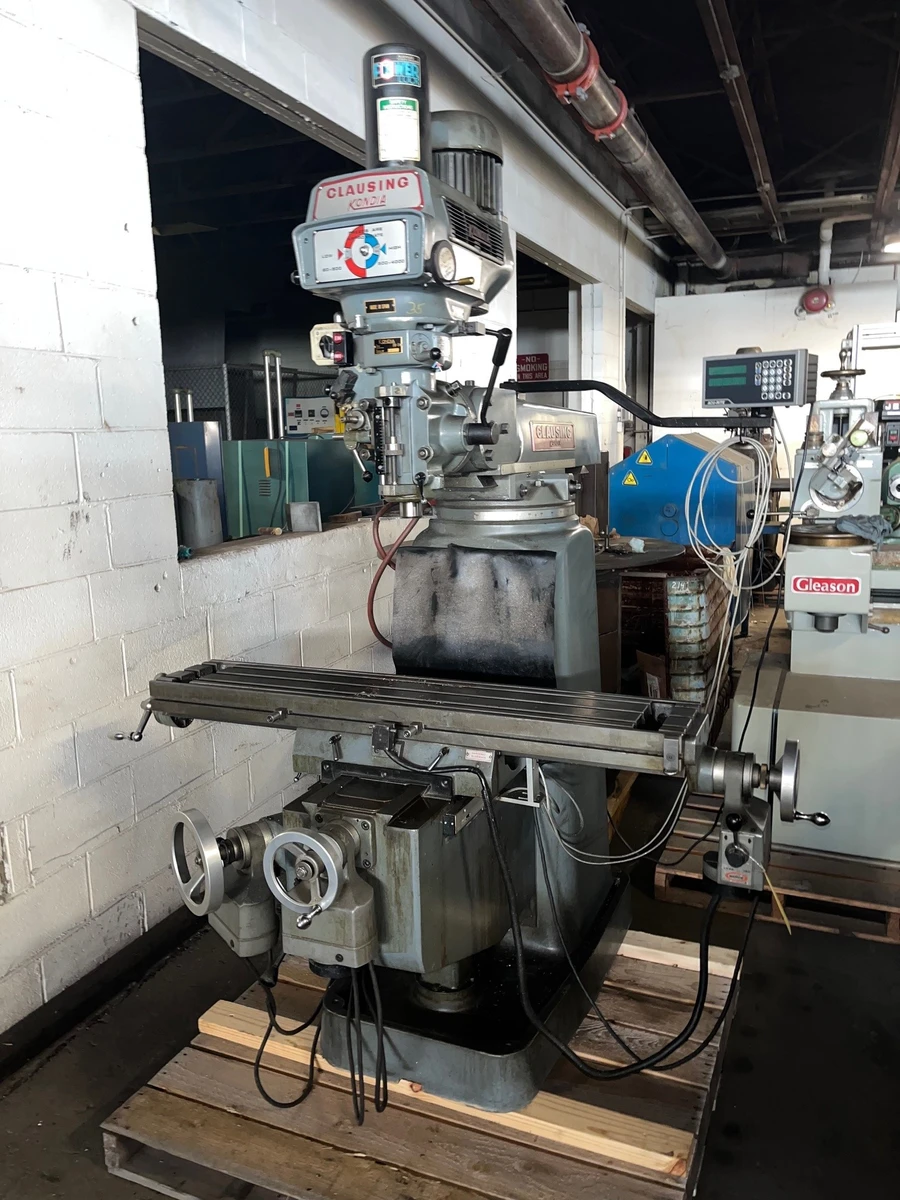

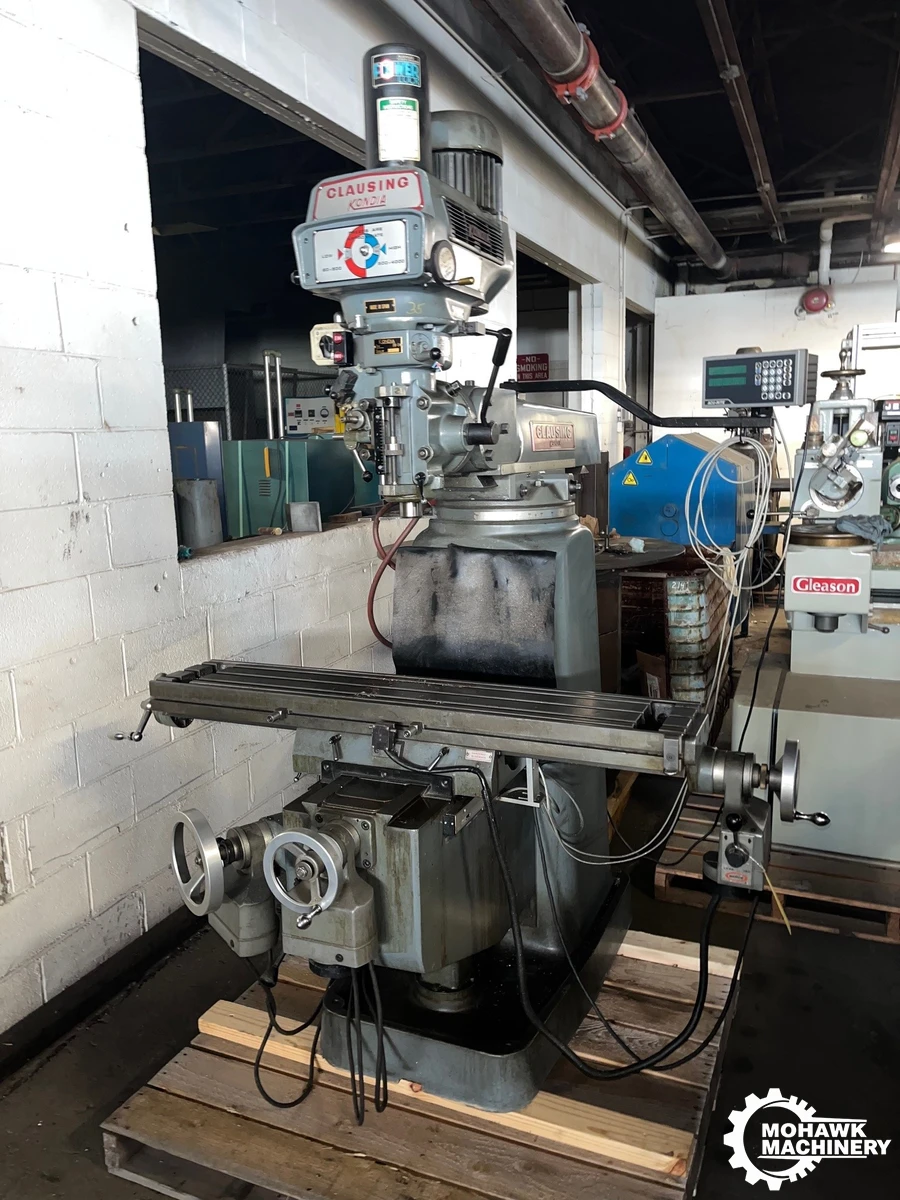

3 HP CLAUSING KONDIA “FV-1” VERTICAL MILL w/POWER LONGITUDINAL CROSS & VERTICAL TABLE FEEDS - ACU-RITE DIGITAL READOUTS - POWER DRAW BAR

FV-1 CLAUSING/KONDIA VERTICAL MILL w/DIGITAL READOUTS
Serial No X-896, Model FV-1,

EQUIPPED WITH:

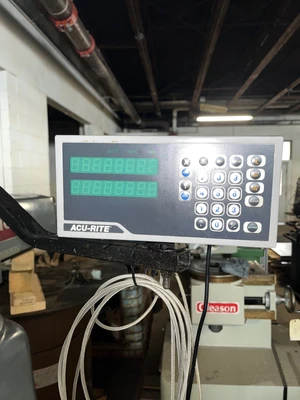

Acu-Rite 2-Axis Digital Readouts
Power Longitudinal Table Feed (Optional)
Power Cross Table Feed (Optional)
Power Vertical Table Feed (Optional)
Power Down-Feed to Quill
Power Draw Bar - Automatic Lube System

CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 9" x 48"
Table Longitudinal Travel (X-Axis) 32.5"
Saddle Cross Travel (Y-Axis) 15"
Knee Vertical Travel (Z-Axis) 16.5"
Spindle Taper #R-8
Spindle-Head Swivel, Degrees 90-DEGREES
Spindle-Head Tilt, Degrees 45-DEGREES
Spindle Speeds, Range 60 to 4000 RPM
Spindle Motor, Horsepower 3 HP
Weight, Approximately 3100 LBS
F.O.B. OUR WAREHOUSE
