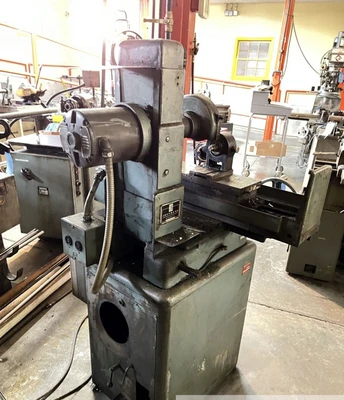

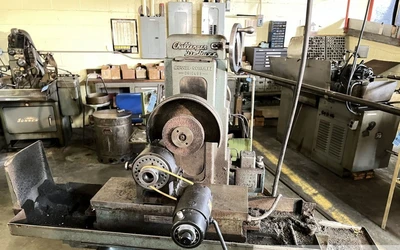

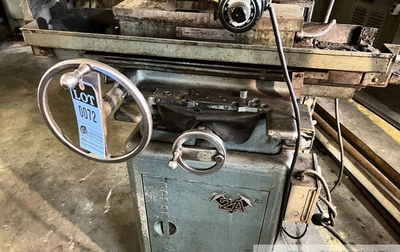

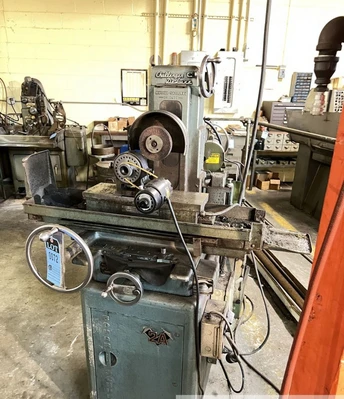

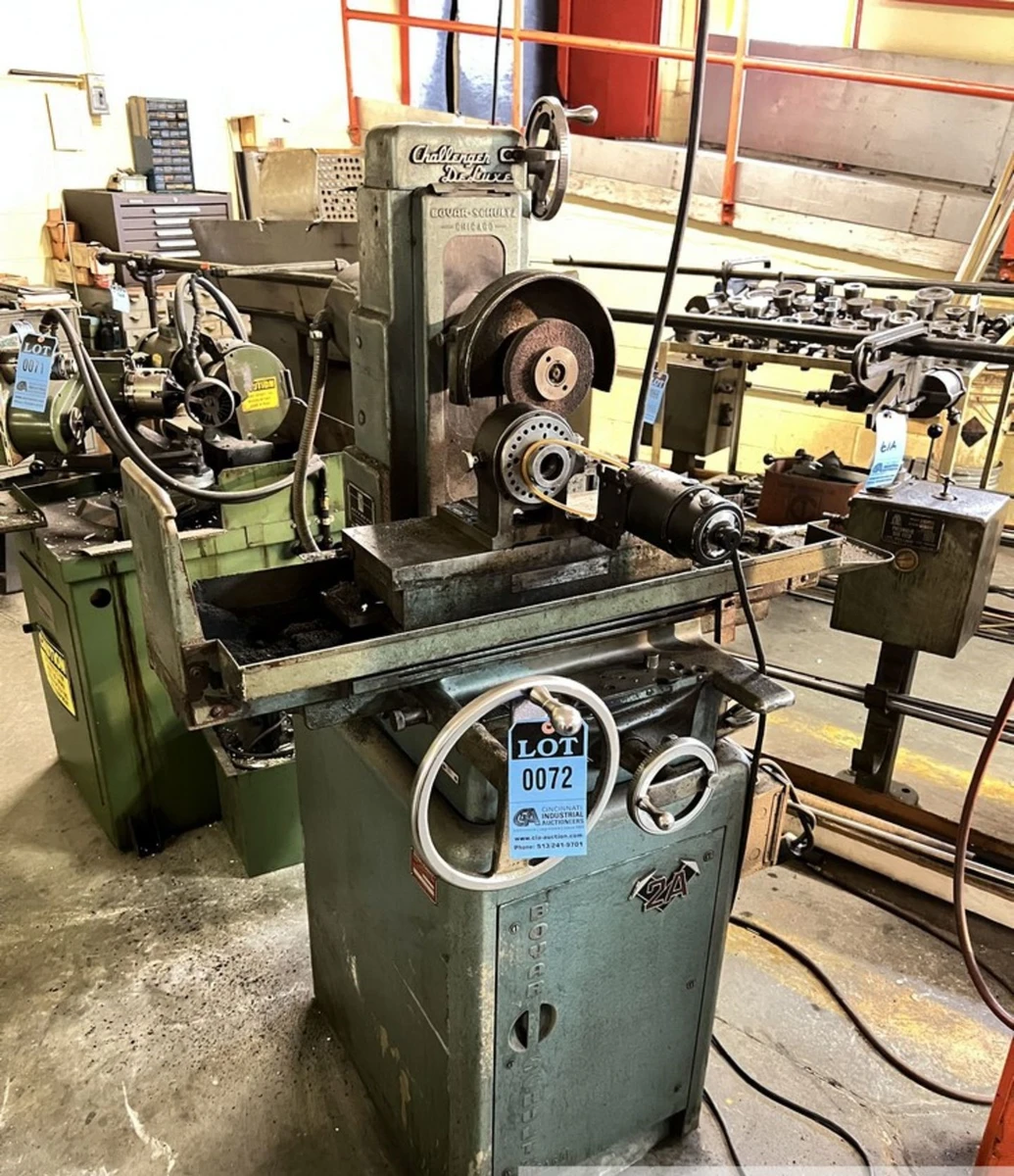

6" X 12" BOYAR-SCHULTZ HAND-FEED "CHALLENGER DELUXE" HORIZONTAL SPINDLE SURFACE GRINDER w/A&B TOOL RELIEF GRINDING ATTACHMENT

Have one to sell?

sales@mohawkmachinery.com

$1,950.00 USD

ConditionUsed

Quantity

1 available

BOYAR-SHULTZ 612 Surface & Way Grinders | Mohawk Machinery (1)

BOYAR-SHULTZ 612 Surface & Way Grinders | Mohawk Machinery (2)

BOYAR-SHULTZ 612 Surface & Way Grinders | Mohawk Machinery (3)

BOYAR-SHULTZ 612 Surface & Way Grinders | Mohawk Machinery (4)

BOYAR-SHULTZ 612 Surface & Way Grinders | Mohawk Machinery (5)

BOYAR-SHULTZ 612 Surface & Way Grinders | Mohawk Machinery (6)

BOYAR-SHULTZ 612 Surface & Way Grinders | Mohawk Machinery

Have one to sell?

Overview

Type:

Surface & Way Grinders

Manufacturer:

Model:

612

Stock #:

30152

Status:

For Sale

Description

6" x 12" BOYAR-SCHULTZ HAND-FEED

"CHALLENGER DELUXE" HORIZONTAL-SPINDLE

SURFACE GRINDER w/A&B TOOL RELIEF GRINDING

ATTACHMENT

Serial No 3889-H, Model 612,

Series "CHALLENGER DELUXE"

Equipped With

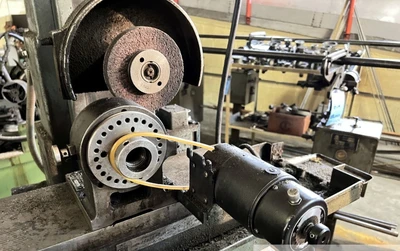

A&B Tool & Manufacturing Relief Grinding Attachment

Electro-Magnetic Chuck

Specifications

ImperialMetric

Table-W	6"	152.4 mm
Table-L	12"	304.8 mm
Horz/Vert	'Horz'	'Horz'
Power	1 hp	0.7 kW
Grinding Wheel Width	0.5"	12.7 mm
Grinding Wheel Dia.	7"	177.8 mm
Dimensions	3'6" x 3'2"	3'6" x 3'2"
Weight	650 LBS	650 LBS

Table Working Surface, W x L 6" x 12"

Grinding Width Capacity, Maximum 6"

Grinding Length Capacity, Maximum 12"

Height Under 7" Grinding Wheel 11.25"

Table Longitudinal Travel 13"

Table Cross Travel 7"

Grinding Wheel Diameter, Standard 7"

Grinding Wheel Width, Standard 0.5"

Grinding Wheel Hole Diameter 1.25"

Grinding Wheel Spindle Motor 1 HP/3150 RPM

Electrical System 220-440/3/60

Floor Space Required, L x D 3'6" x 3'2"

Weight, Approximately 650 LBS

F.O.B. OUR WAREHOUSE
