HC HARDINGE "SUPER PRECISION" TURRET CHUCKING LATHE w/COLLET CHUCK - 8-POSITION POWER TURET - SOME COLLETS & TOOLING
Have one to sell?
$3,950.00 USD
ConditionUsed
1 available

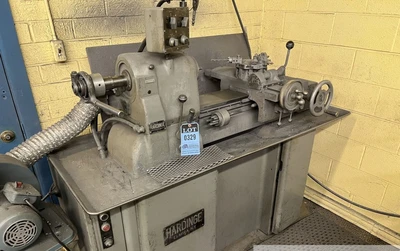

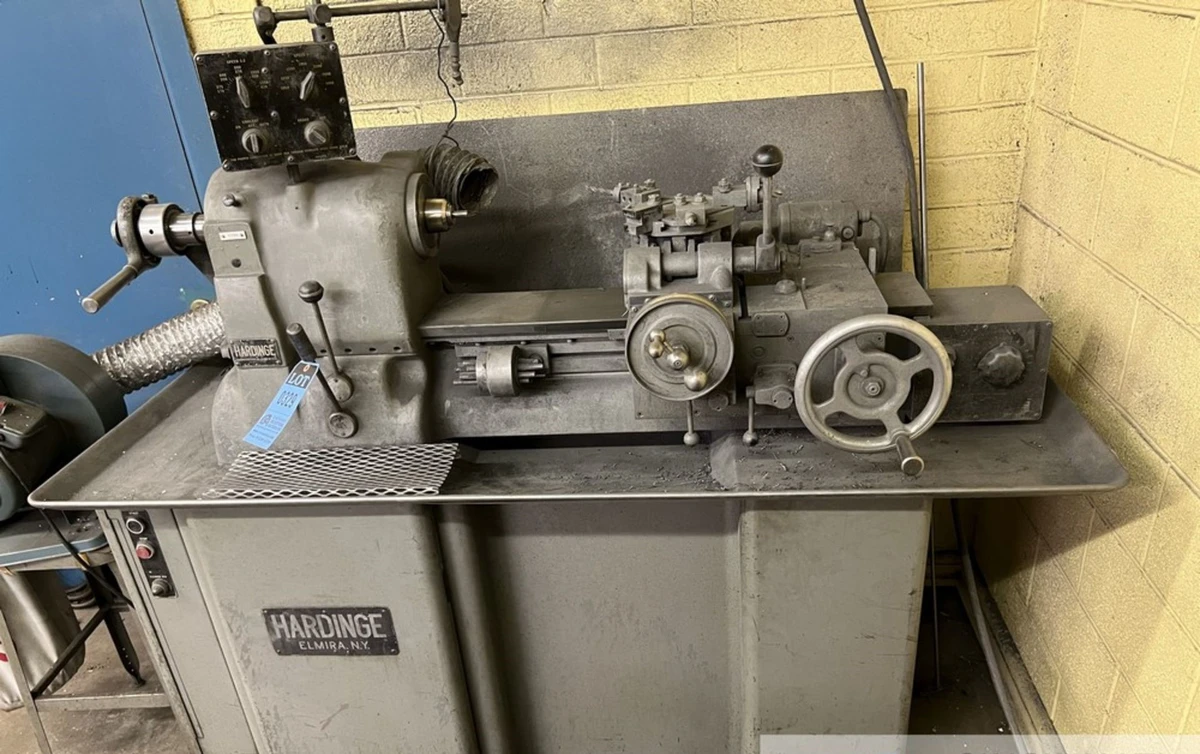

HC HARDINGE "SUPER PRECISION" TURRET
CHUCKING LATHE
Serial No HC3160K, Model HC

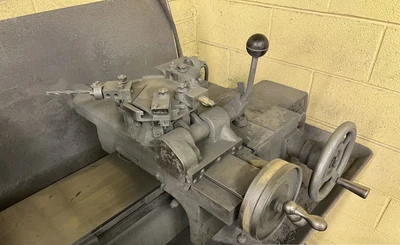

8-Position Turret w/Power Electric Variable Feed

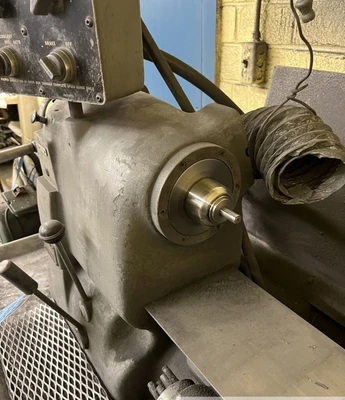

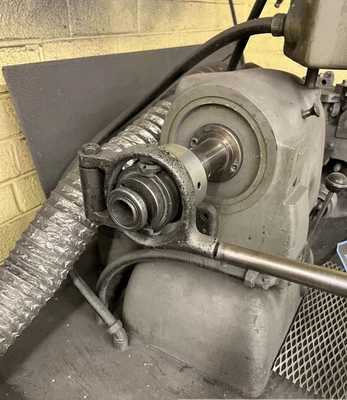

Lever Head Collet Type Chuck
Turret Depth Stop
Coolant System (Pump)
Some Collets & Tooling
Collet Capacity (#5C Hardinge), Round 1-1/16"
Collet Capacity (#5C Hardinge), Hexagon 7/8"
Collet Capacity (#5C Hardinge), Square 3/4"
Step Chuck Capacity (#5C Hardinge) 1-1/16" to 6"
Fixture Diameter, Maximum 9"
Distance from Turret-Face to Spindle 14"
Cross-Slide Cross Travel (X-Axis) 4.5"
Spindle Nose Diameter 2.189"

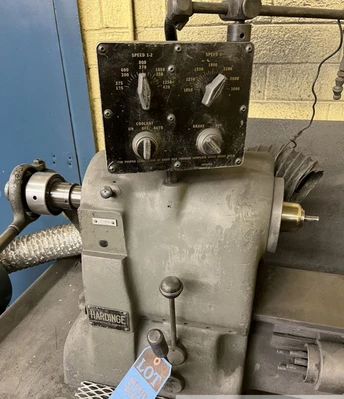

Spindle Speeds, Variable Range 125 to 3000 RPM
Carriage Longitudinal Feeds (Z-Axis) 1/4 to 10 IPM
Cross-Slide Cross Feeds (X-Axis) 11/32 to 6.25 IPM
Spindle Motor, Horsepower 1 HP
Weight, Approximately 1750 LBS
F.O.B. OUR WAREHOUSE
