20" x 60" DAEWOO-IKEGAI "DA20" HIGH-SPEED PRECISION ENGINE LATHE w/INCH-METRIC THREADING - (2) CHUCKS - STEADY REST
Have one to sell?
$7,950.00 USD
ConditionUsed
1 available

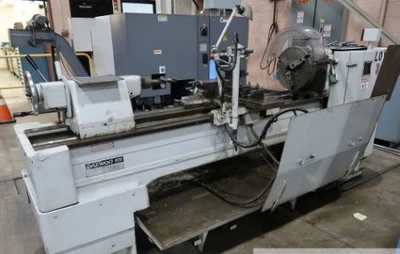

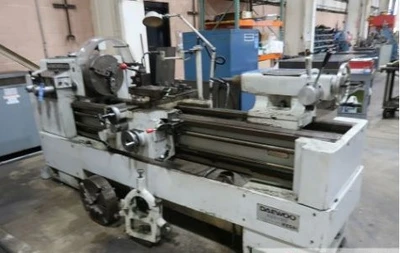

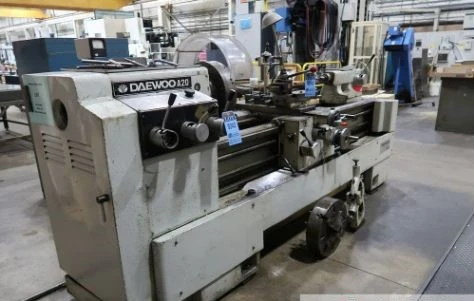

20" x 60" DAEWOO-IKEGAI HIGH SPEED PRECISION
ENGINE LATHE W/INCH-METRIC THREADING

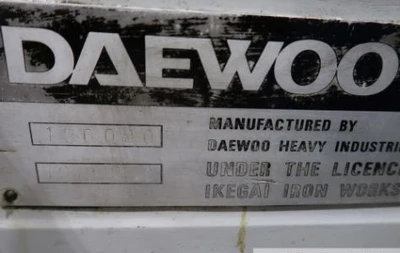

Serial No. 150090, Model DA20
3" Hole Thru Spindle
Inch-Metric Threading Capabilities - Steady Rest

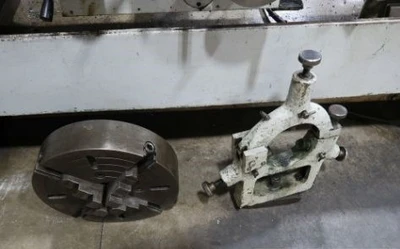

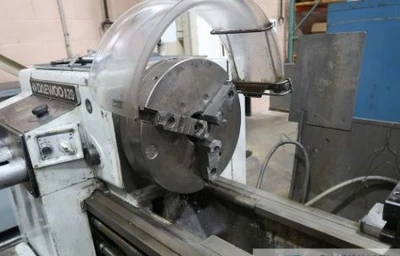

Threading Dial - 15" 3-Jaw Chuck - 16" 4-Jaw Chuck
Hardened & Ground Bed Ways

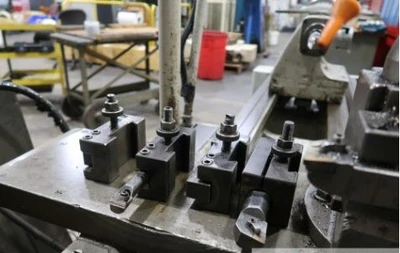

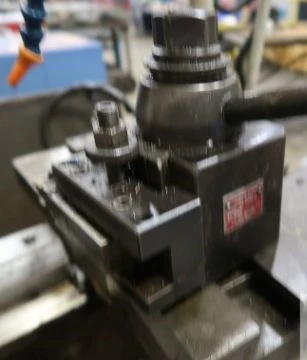

Dorian SD40CA Superquick Tool Post - Toolholders
Hole Thru Spindle .......... 3"
Swing Over Bed Ways 20"
Swing Over Cross-Slide .......... 15.5"
Distance Between Centers .......... 60"
Cross-Slide Travel 10.625"
Compound Rest Travel 5.875"

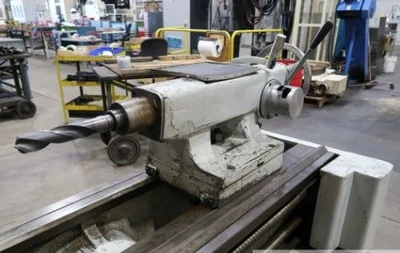

Tailstock Spindle Travel 7.5"
Tailstock Spindle Center 5 MT

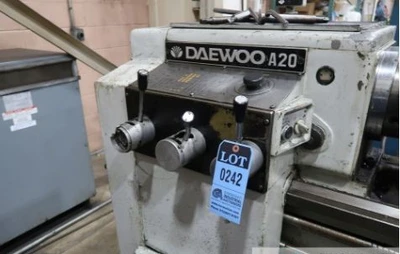

(13) Spindle Speeds, Range .......... 18 to 2000 RPM
(24) Feeds, Coarse .......... .035 to .05 IPR
(24) Feeds, Normal .......... .022 to .031 IPR
(24) Feeds, Fine .......... .0015 to .02 IPR
Thread Changes, Metric 0.5 to 64
Thread Changes, Inch 80-9/16 TPI
Thread Changes, Module .25 to 16
Motor Horsepower .......... 10 HP
Electrical System .......... 220-440/3/60
Floor Space Required, L x W 136" x 70"
Weight Approximately .......... 5600 LBS
F.O.B. ON WAY IN
