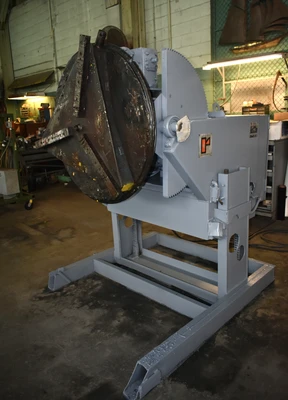

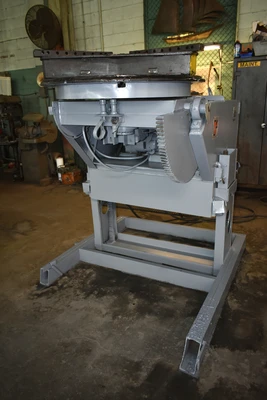

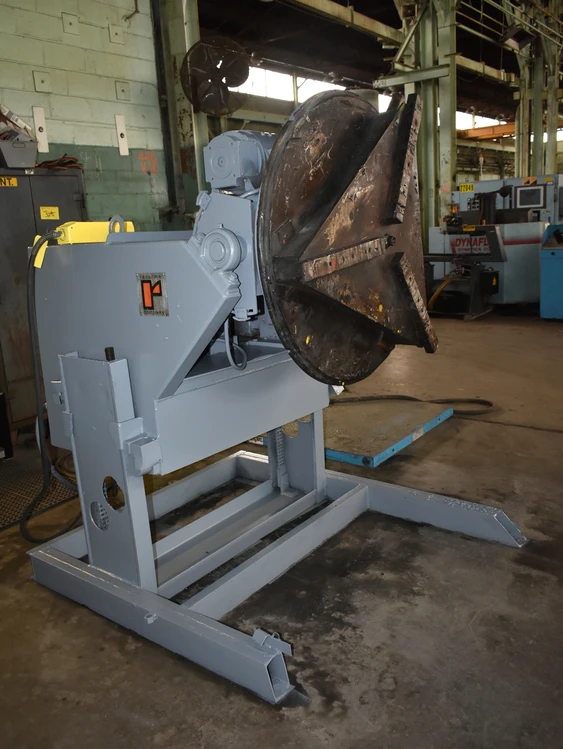

3000 LB RANSOME "30P-A" VARIABLE-SPEED HEAVY-DUTY WELDING POSITIONER w/POWER TABLE ELEVATION - 40” DIAMETER T-SLOTTED TABLE - 3-JAW WELDING CHUCK - PENDANT CONTROL

3000 LB RANSOME WELDING POSITIONER

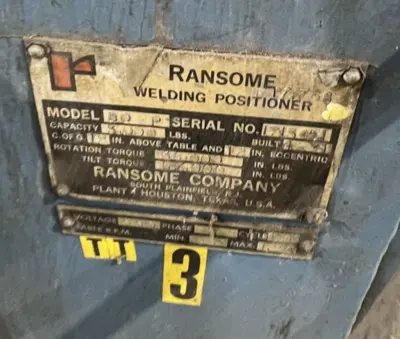

Serial No 1713451, Model 30P-A

EQUIPPED WITH:
360-Degree Variable-Speed Power Rotation
135-Degree Power Tilt
Power Table Elevation
40" Diameter T-Slotted Table
Heavy-Duty 3-Jaw Welding Chuck

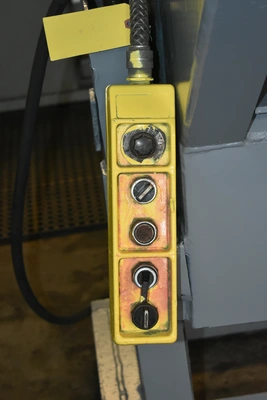

Hand Held Pendant Control

CATALOG SPECIFICATIONS:
Table Dimensions (Overall) W x L 40" x 40"
Table Weight at 12" Eccentricity 3000 LBS
Table Weight at 18" Eccentricity 2280 LBS
Table Weight at 24" Eccentricity 1838 LBS
Table Weight at 30" Eccentricity 1540 LBS
Table Height, Minimum 42-1/2"
Table Height, Maximum 66-1/2
Table Speed Range, Variable .031 to 1.2 RPM
Table Rotation, Degrees 360-DEGREES
Table Tilt, Degrees 135-DEGREES
Rotation Torque, Inch Pounds 36000 LBS
Tilt Torque, Inch Pounds 57000 LBS
Table Rotation Speed, Variable .031 to 1.2 RPM
Table Rotation Motor, HP/RPM 1 HP/1750 RPM
Table Tilt Motor, HP/RPM 1.5 HP/1725 RPM
Electrical System 220-440/3/60
F.O.B. OUR WAREHOUSE
