| Max Gauge | 9 gauge | 9 gauge |
| Length of Blade | 144" | 3,657.6 mm |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 48" | 1,219.2 mm |
| Power | 20 hp | 14.9 kW |
| SPM | 40 strokes/min. | 40 strokes/min. |
| Dimensions | 240 x 127 | 240 x 127 |
| Weight | 37000 | 37000 |

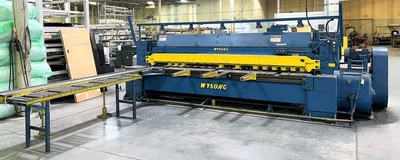

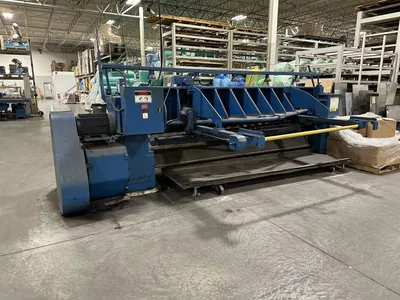

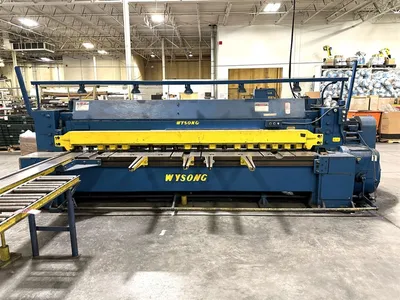

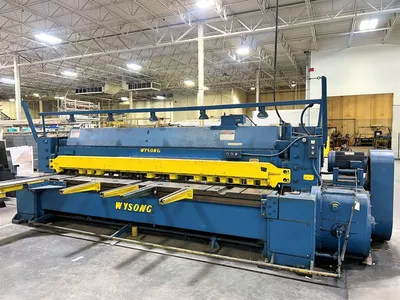

12' x 3/8" WYSONG MECHANICAL POWER
SQUARING SHEAR
Serial No P35-145, Model 1238,
EQUIPPED WITH:
48" Power Back Gauge (Front Operated)
(19) Power Hold-Downs
Double End Frame Design
Ball Transfers In Table
11' Squaring Arm - Foot Switch
CATALOG SPECIFICATIONS:
Shearing Capacity, Nominal 12' x 3/8"
Shearing Capacity, Stainless Steel 12' x 9/32"
Rake, Taper Per Foot 5/16"
Strokes Per Minute 40 SPM
Main Motor, Horsepower 20 HP
Floor Space Required, L x D 240" x 127"
Overall Height 68"
Weight, Approximately 37000 LBS
F.O.B. OUR WAREHOUSE
