60 TON BLISS (EW) "C60" O.B.I. PRESS w/AIR CUSHION - 36” X 32” T-SLOTTED BOLSTER PLATE
Have one to sell?
ConditionUsed
1 available
$12,500.00 USD

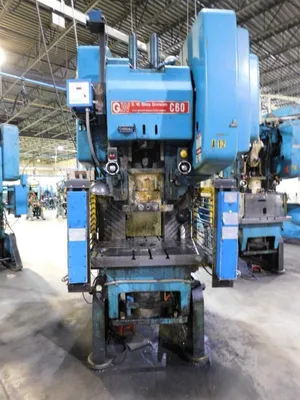

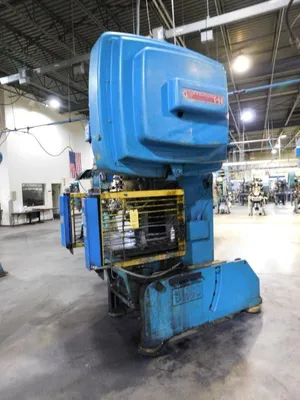

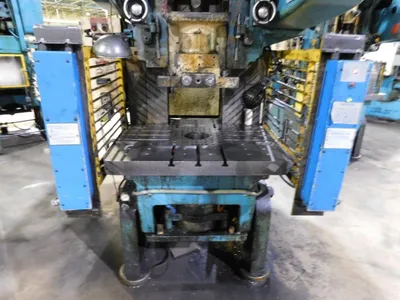

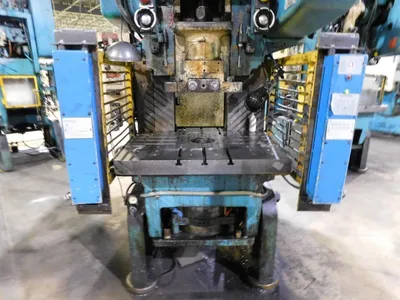

60 TON BLISS (EW) O.B.I. PRESS
Serial No H69009, Model C60
60 TON BLISS (EW) O.B.I. PRESS
Serial No H69009, Model C60
EQUIPPED WITH:
Air Clutch & Brake

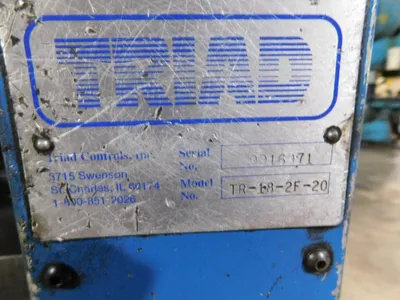

TR-1.8-2F-20 Triad Light Curtains (S/N 8916171)
Air Cushion

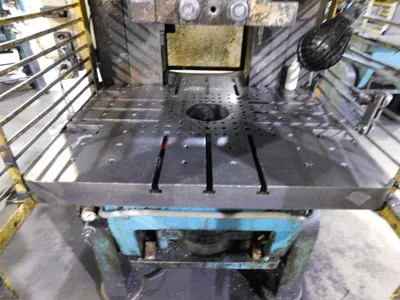

36" x 32" T-Slotted Bolster Plate
CATALOG SPECIFICATIONS:
Tonnage Capacity 60 TON
Stroke Length 4"
Shut Height, (SDAU) 14.25"
Ram Adjustment, 3"
Slide Area, L-R x F-B 20" x 15.25"
Bed Area, L-R x F-B 32" x 21.5"
Throat Depth 18"
Motor Horsepower/RPM 7-1/2 HP/1750 RPM
Electrical System 230-460/3/60
Overall Dimensions, W x D 6' x 8'
Weight, Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
