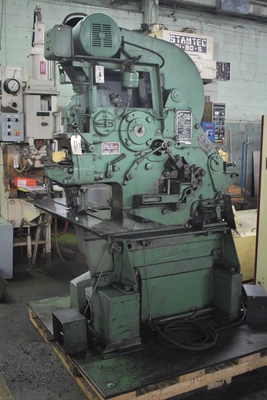

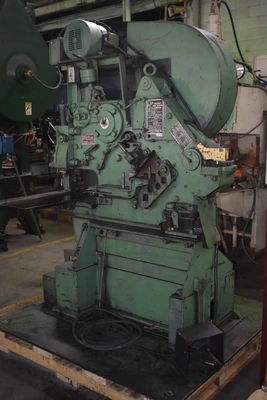

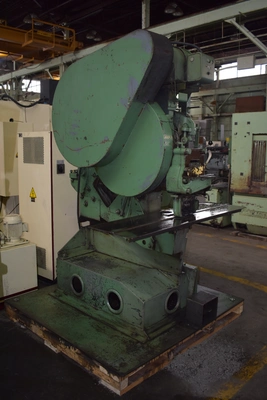

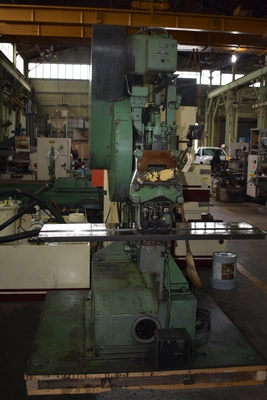

50 TON BUFFALO "1/2 UNIVERSAL" MECHANICAL IRONWORKER 4" x 4" x 1/2" - COPER/NOTCHER

1/2 BUFFALO "UNIVERSAL" MECHANICAL
IRONWORKER

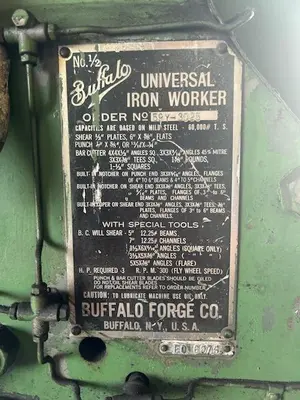

Serial No. 59Y-3025, Model 1/2, Series Universal

EQUIPPED WITH:
Coper and Notcher

CATALOG SPECIFICATIONS:
Tonnage Capacity, Punch End 50 TON
Stroke, Punch End 1-1/8"
Throat Depth 20"
Shear Blade Length 10"
Punching Capacity Thru 5/8" Plate 1-1/16"
Punching Capacity Thru 3/4" Plate 13/16"
Shearing Capacity, Flats 6" x 5/8"
Shearing Capacity, Round Bars 1-5/8"
Shearing Capacity, Square Bars 1-1/2"
Shearing Capacity, 90 Degree Angles 4" x 4" x 1/2"
Shearing Capacity, 45 Degree Angles 3" x 3" x 5/16"
Shearing Capacity, Tees 4" x 4" x 7/16"
Coping Capacity, Plates 3/8"
Coping Capacity, Angles & Tees 3" x 3/8"
Notching Capacity, Angles & Tees 3" x 3/8"
Strokes Per Minute 44 SPM
Motor, Horsepower/RPM 3 HP/1455 RPM
Electrical System 220-440
Overall Dimensions, L x W 5' x 2'10"
Overall Height 7'
Weight, Approximately 3500 LBS.
F.O.B. OUR WAREHOUSE
