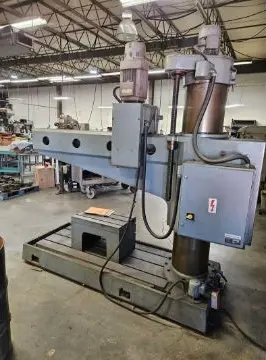

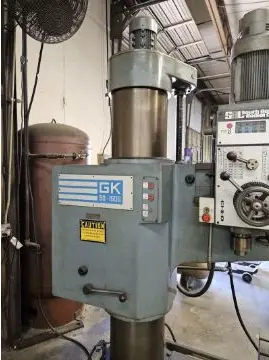

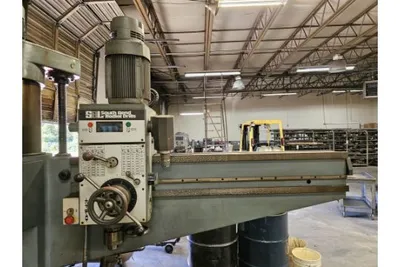

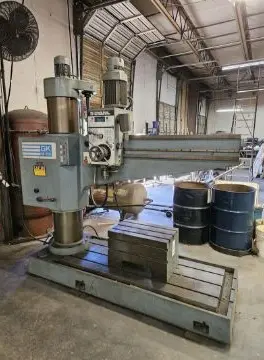

5'14" SOUTH BEND "GK50/1500" RADIAL DRILL w/TAPPING - PLAIN BOX TABLE - HYDRAULIC CLAMPING

Arm Length 59.06"

Column Diameter 14"

Drilling Capacity, Mild Steel 2"

Drilling Capacity, Cast Iron 2.375"

Tapping Capacity, Mild Steel 2"

Tapping Capacity, Cast Iron 2.375"

Horizontal Head Travel on Arm 48.5"

Vertical Arm Travel on Column 32"

Vertical Spindle Travel in Head 9.5"

Spindle-Radius, Minimum 17.5"

Spindle-Radius, Maximum 66"

Spindle-Nose to Base, Minimum 8.5"

Spindle-Nose to Base, Maximum 51.25"

Base Working Surface, W x L 32.25" x 66.375"

Spindle Nose Diameter 2.375"

Spindle Taper #4 MT

(12) Spindle Speeds, Range 40 to 1750 RPM

(6) Spindle Feeds, Range .0020 to .0138 IPR

Spindle Motor, Horsepower 4-1/3/3 HP

Elevation Motor, Horsepower 1-1/2 HP

Extreme Height, Column Above Floor 101"

Extreme Height, Head & Arm Extended 114"

Weight, Approximately 6900 LBS

F.O.B. OUR WAREHOUSE
