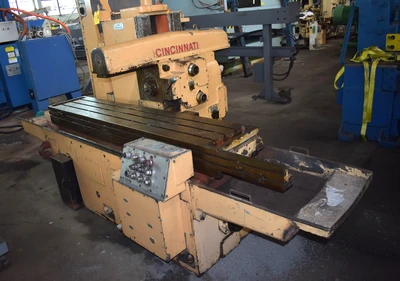

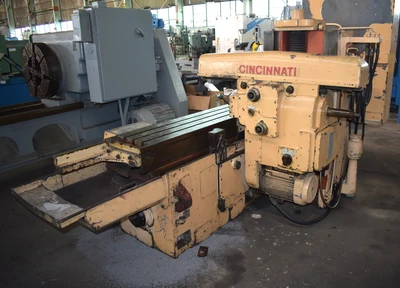

310-154 CINCINNATI-MILACRON "POWERMATIC" HORIZONTAL SPINDLE PRODUCTION MILL w/AUTO QUILL RETRACTION - 10 HP SPINDLE MOTOR

Table Dimensions (Overall) W x L .......... 15" x 78"

Table Working Surface, W x L .......... 15" x 70.5"

Table Longitudinal Travel (X-Axis) .......... 48"

Spindle-Head Vertical Travel (Y-Axis) .......... 14"

Quill Cross Adjustment (Z-Axis) .......... 4"

Table-Center to Spindle-Carrier Face .......... 10.5"

Table-Center to Spindle-Face, Minimum .......... 5.5"

Table-Center to Spindle-Face, Maximum .......... 9.5"

Quill Diameter .......... 7.5"

Spindle Nose Diameter .......... 5.06"

Spindle Taper .......... #50 NSTD

(16) Spindle Speeds, Range .......... 30 to 1200 RPM

Longitudinal Table Feeds, Range .......... 1/2 to 60 IPM

Power Rapid Table Traverse .......... 300 IPM

Spindle Motor, Horsepower .......... 10 HP/1775 RPM

Feed Drive Motor, Horsepower .......... 3 HP

Overall Dimensions, L x W 129" x 81"

Overall Height .......... 75"

Weight, Approximately .......... 12320 LBS

F.O.B. OUR WAREHOUSE
