12 X 3/8" ACCURSHEAR "837512" HYDRAMECHANICAL POWER SQUARING SHEAR w/ACCURSHEAR LED CONTROL - 36” FRONT OPERATED POWER BACK GAUGE

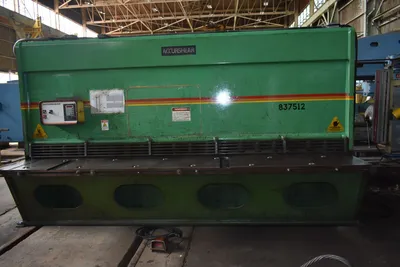

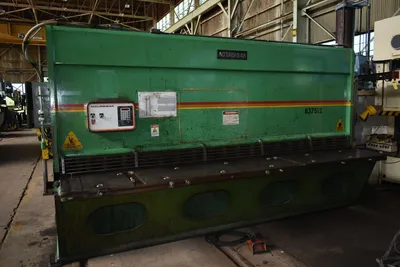

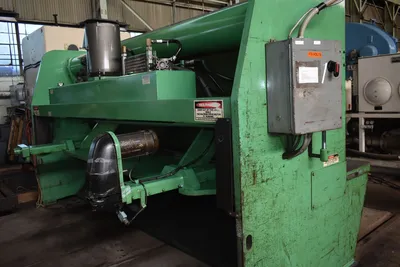

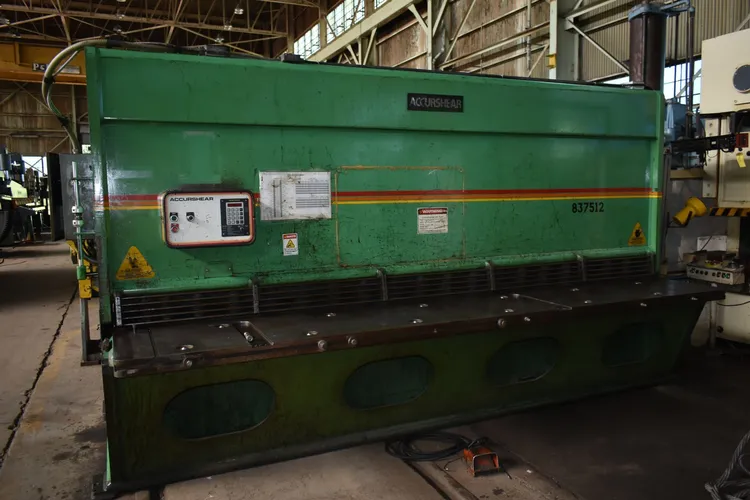

12' x 3/8" ACCURSHEAR HYDRAMECHANICAL
POWER SQUARING SHEAR
Serial No 1793, Model 837512,

EQUIPPED WITH:
Accurshear LED Display Control
36" Front Operated Power Back Gauge
Squaring Arm - Front Supports
Gap Correction - No Pit Required

CATALOG SPECIFICATIONS:
Shearing Capacity, Nominal ......... 12' x 3/8"
Length Of Knife ......... 12'2"
Knife Dimensions ......... 1" x 3"
Depth Of Gap ......... 12"
Clearance, Minimum ......... .002"
Oil Pressure ......... 2600 PSI
Motor Horsepower ......... 20 HP
Electrical System ......... 460/3/60
Overall Dimensions, L x D 157" x 85"
Overall Height 90"
Weight, Approximately 27000 LBS
F.O.B. OUR WAREHOUSE
Shearing Capacity, Nominal: 12' x 3/8"
Length Of Knife: 12'2"
Knife Dimensions: 1" x 3"
Depth Of Gap: 12"
Clearance, Minimum: 002"
Oil Pressure: 2600 PSI
Motor Horsepower: 20 HP
Electrical System: 460/3/60
