50" X 50" CINCINNATI-GILBERT "AIRMIST" MANUAL ROTATION T-SLOTTED ROTARY TABLE w/360-DERGEE TABLE GRADUATIONS IN 1-DEGREE INCREMENTS - 4-POSITION INDEX
Have one to sell?
$5,950.00 USD
ConditionUsed
1 available

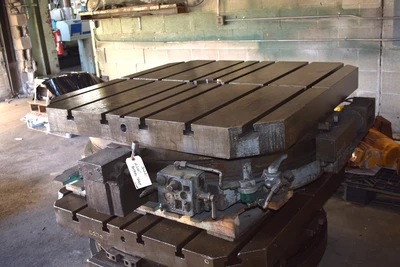

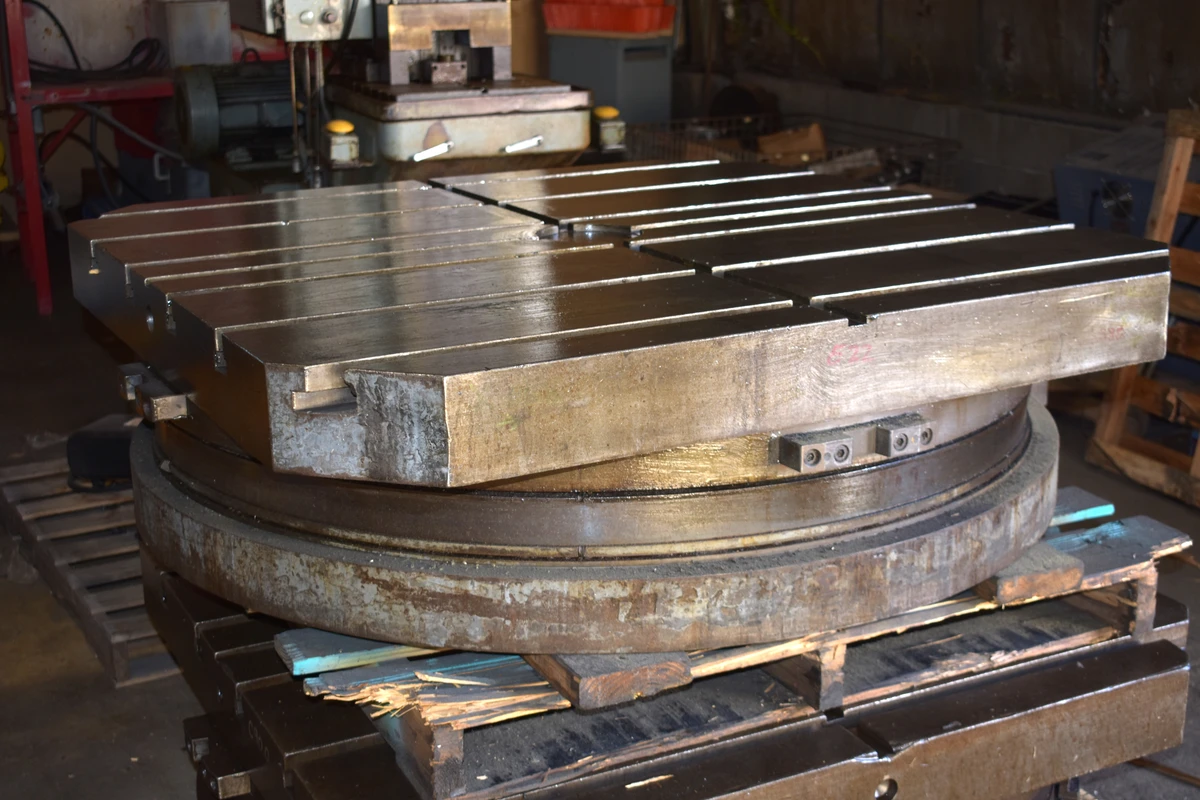

50" x 50" CINCINNATI-GILBERT "AIRMIST" T-SLOTTED ROTARY TABLE
Model "AIRMIST"
Airmist MANUAL Table Rotation
360-Degree Table Graduations in 1-Degree Increments
4-Position Index Pins
Table Working Surface, W x L 50" x 50"
Table Diameter Over Corner 62.5"
Table Weight Load Capacity, Centered 15000 LBS
Table Weight Load Capacity, Offset 12000 LBS
T-Slots Total, Number (6)
Overall Height Of Table 14"
Weight of Table, Approximately 5050 LBS
CONDITION: Appears to be in Very Good Condition.
NOTE: This Machine Uses Airmist Operation Which Is An
Air-Oil Mist That Is Introduced Through Specially
Designed Valves In The Way Surface Of The Base To
Lift The Top.
F.O.B. OUR WAREHOUSE
