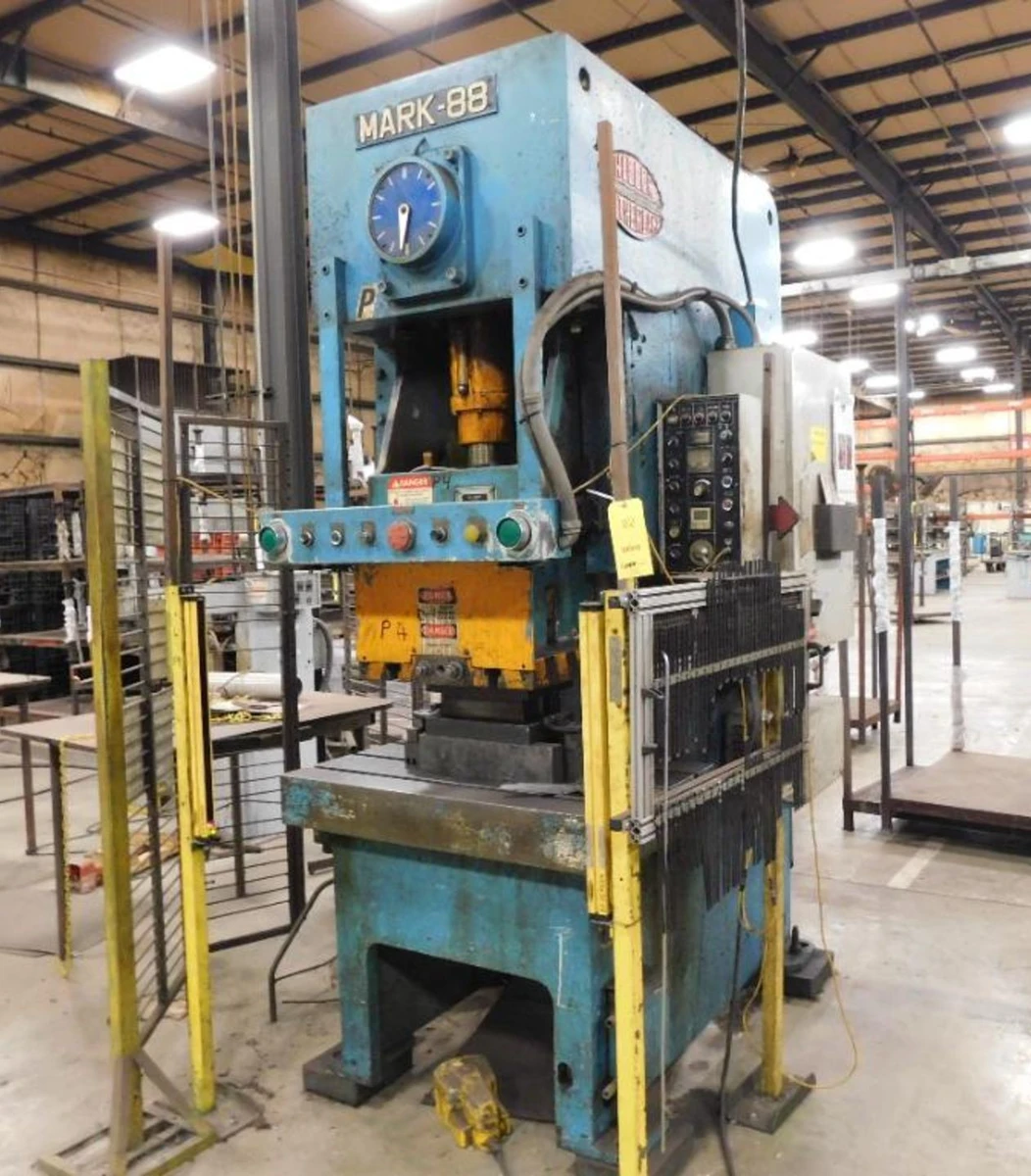

88 TON HELLER/SUTHERLAND "MARK-88" HYDRAULIC SINGLE-CRANK GAP FRAME PRESS w/VARIABLE-SPEED DRIVE - AIR COUNTERBALANCE

Tonnage Capacity, U.S. 88 TON

Tonnage Capacity, Metric 80 TON

Stroke Length 5.9"

Die Height, (SDAU) 12.9"

Slide Adjustment ......... 3.2"

Slide Area, L-R x F-B ......... 22" x 18"

Bolster Area, L-R x F-B ......... 41.3" x 23.6"

Bolster Thickness ......... 5.5"

Opening In Bed, L-R x F-B ......... 21" x 14.9"

Strokes Per Minute, Variable ......... 45 to 75 SPM

Motor, Horsepower ......... 10 HP

Slide Adjustment Motor ......... 0.5 HP

Floor Space Required, W x D ......... 50" x 72"

Overall Height ......... 118"

Weight Approximately ......... 15000 LBS

F.O.B. OUR WAREHOUSE
Stroke length: 5.9"
Bed area, l-r x f-b: 41.3" x 23.6"
Die Height, SDAU: 12.9"
Tonnage Capacity,: 88 TON
Slide Adjustment: 3.2"
Bolster Thickness: 5.5"
Strokes Per Minute, Variable: 45 to 75 SPM
Motor, Horsepower: 10 HP
Slide Adjustment Motor: 0.5 HP
Overall Height: 118"
Weight Approximately: 15000 LBS
