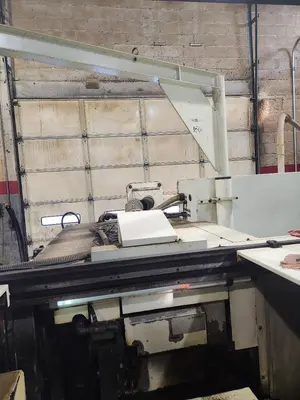

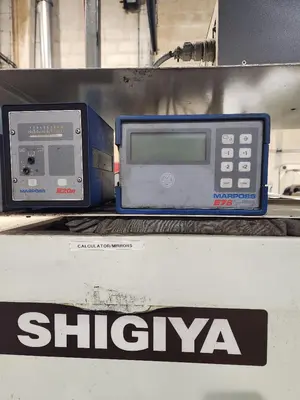

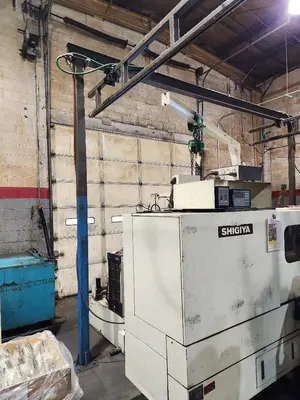

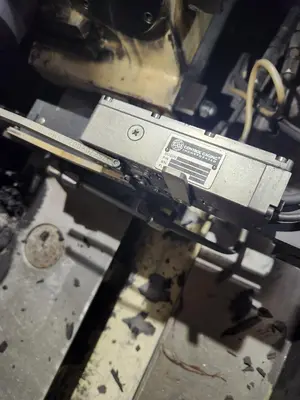

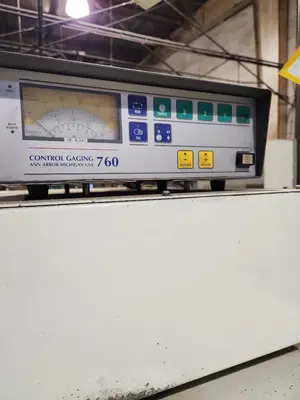

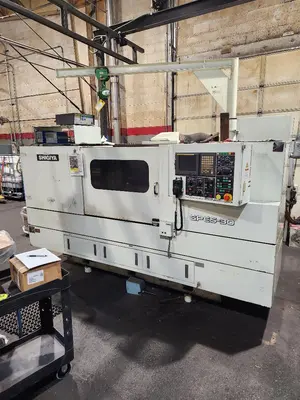

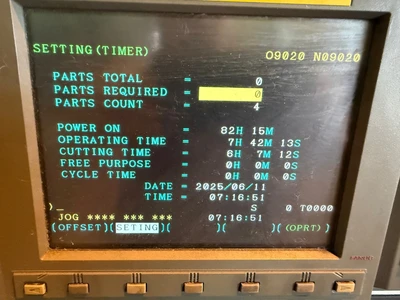

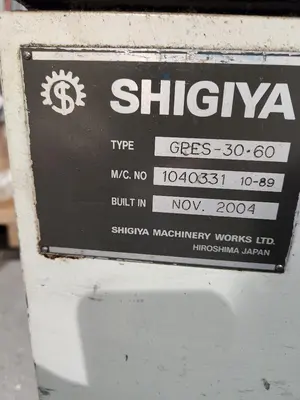

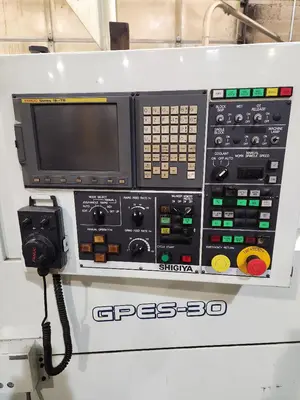

11.81" x 24.81 SHIGIYA "GPES-30-60" CNC ECCENTRIC/POLYGON CYLINDRICAL GRINDER w/FANUC 18i TB CONTROL & MARPOSS GAUGING

Swing Over Table, Maximum .......... 11.8" 300MM

Grinding Diameter, Maximum .......... 8.7" 220MM

Grinding Length, Maximum 24.1" 620MM

Distance Between Centers, Nominal .......... 24.81" 630MM

Weight Capacity, Maximum 330 LBS 150KG

Wheelhead Travel, Total 9.44" 240MM

(16) Wheelhead Jog Feed Speeds, Range 0 to 100 IPM

(16) Wheelhead Jog Feed Speeds, Range 0 to 2520 MMPM

(4) Wheelhead Rapid Feeds, Range

Table Longitudinal Travel, Total 29" 740MM

(16) Table Jog Feeds, Range 0 to 50 IPM

(16) Table Jog Feeds, Range 0 to 1260 MMPM

(4) Table Rapid Traverse Speeds, 0 to 496 IPM

(4) Table Rapid Traverse Speeds, Range 0 to 15000 MMPM

Workhead Spindle Speed, Range 15 to 400 RPM

Workhead Spindle Taper 4 MT

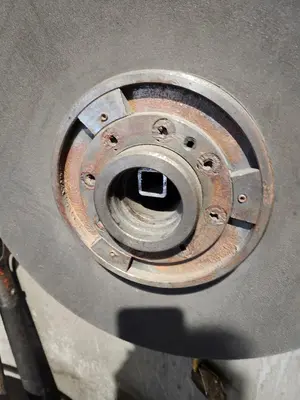

Grinding Wheel Diameter .......... 13.78" 350MM

Grinding Wheel Width .......... .98" 25MM

Grinding Wheel Bore Diameter 5" 127MM

Spindle Motor Horsepower .......... 20 HP 15KW

Overall Dimensions, L x W 128" x 126"

Overall Height 85"

Weight, Approximately .......... 13860 LBS

NOTE: The GPES-30's New Radius Traverse Function

Expands Grinding Capabilities. The GPES-30 CNC

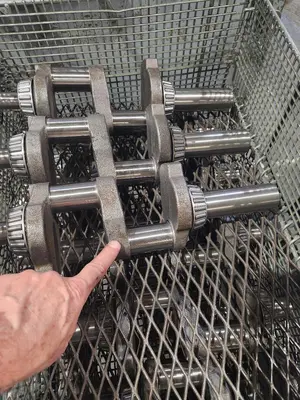

Eccentric/Polygon Grinder Provides Both Automatic

Roundness On The Eccentric Shaft And Superior

Accuracy On Polygon Shapes. It Sculpts The

Required Geometry For Diverse Polygonal Workpieces

And Custom Polygon Applications Used In The

Manufacture Of Hub Connections, Keyways, Gears,

Couplings And Splines. Replacement Price On This

Machine Is Over $700,000.00.

F.O.B. OUR WAREHOUSE
Swing Over Table, Maximum: 11.8" 300MM
Grinding Diameter, Maximum: 8.7" 220MM
Distance Between Centers, Nominal: 24.81" 630MM
Grinding Wheel Diameter: 13.78" 350MM
Grinding Wheel Width: 98" 25MM
Spindle Motor Horsepower: 20 HP 15KW
Weight, Approximately: 5500 LBS
