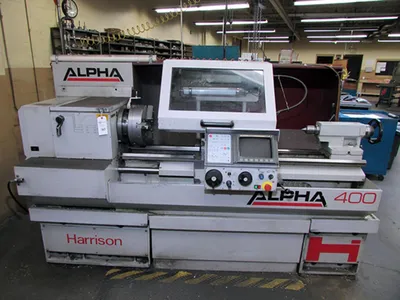

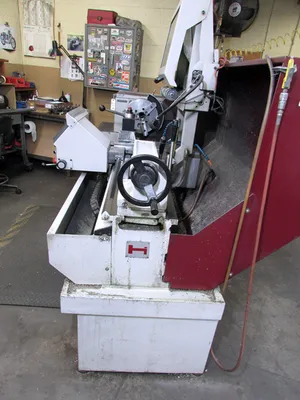

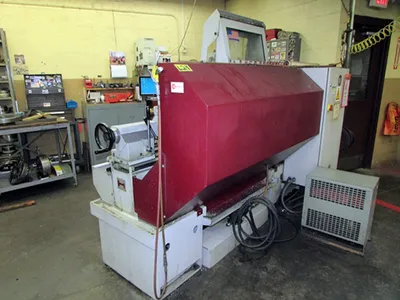

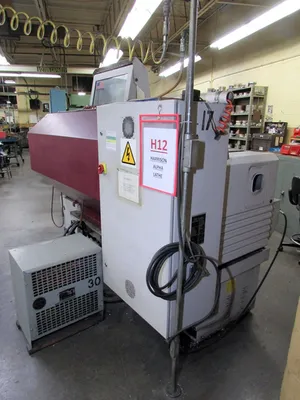

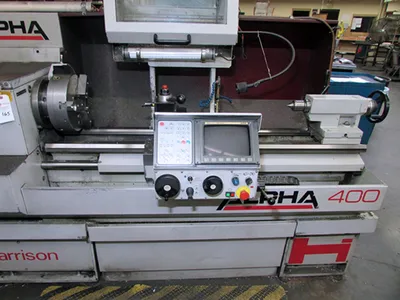

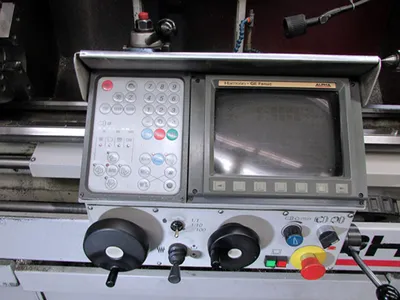

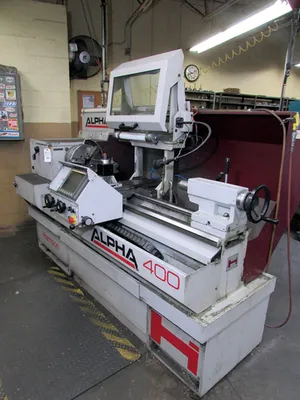

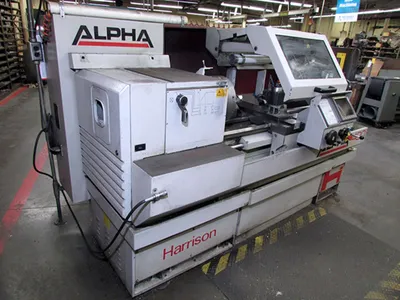

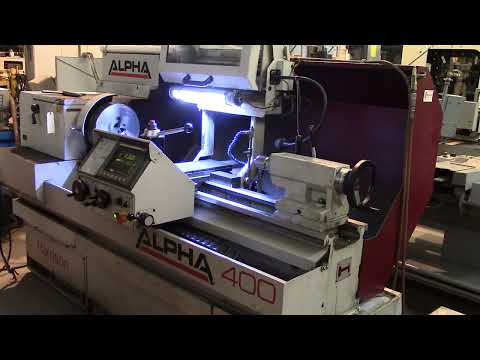

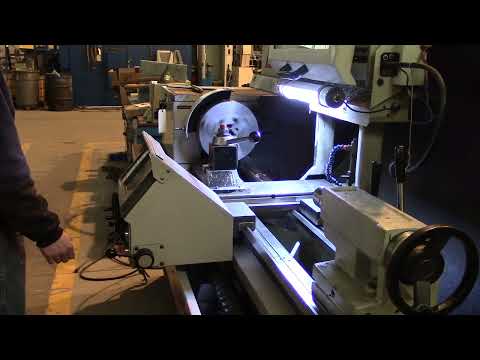

15.75/23" x 50" HARRISON "ALPHA 400" GAP-TYPE 2-AXIS COMBINATION MANUAL/CNC LATHE w/GE FANUC ALPHA CNC CONTROLS

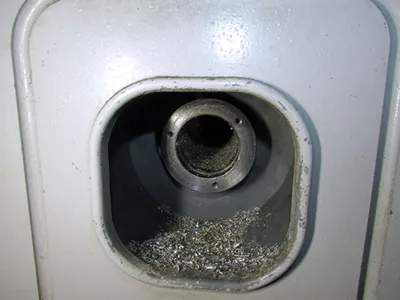

Spindle Bore Diameter .......... 2.1" 54 MM

Swing Over Bed .......... 15.75" 400 MM

Swing In Gap .......... 23" 585 MM

Gap Width From Faceplate .......... 6.5" 165 MM

Swing Over Cross-Slide .......... 9.62" 245 MM

Distance Between Centers .......... 50" 1250 MM

X-Axis Travel, Maximum .......... 9.8" 250 MM

Z-Axis Travel, Maximum .......... 50" 1250 MM

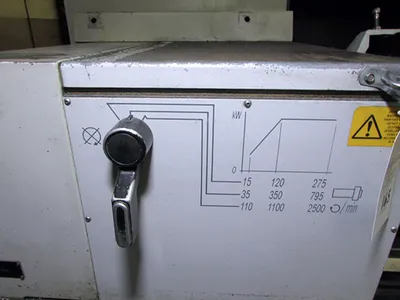

Spindle Speeds, Range .......... 15 to 2500 RPM

Thread Range, Metric .......... Up to 14 MM

Thread Range, Imperial .......... Down to 2 TPI

Thread Range, Module .......... Up to 3.5 MOD

Thread Range, Diametral .......... Down to 8 DP

Longitudinal Feeds Range, Metric .......... .03 to .4 MM/R

Longitudinal Feeds Range, Imperial .......... .001 to .016 IPR

Cross Feeds Range, Metric & Imperial .......... 1/2 Longitudinal

Rapid Traverse, X & Z-Axis' .......... 240 IPM 3 MPM

Tailstock Quill Travel .......... 5.5" 140 MM

Tailstock Quill Diameter .......... 2.875" 73 MM

Tailstock Taper .......... 5 MT

Motor Rating .......... 10 HP 7.5 KW

Overall Dimensions, L x W .......... 101" x 60"

Overall Height .......... 68"

Weight Approximately .......... 4750 LBS

F.O.B. OUR WAREHOUSE
Spindle Bore Diameter: 2.1" 54 MM
Swing Over Bed: 15.75" 400 MM
Swing In Gap: 23" 585 MM
Gap Width From Faceplate: 6.5" 165 MM
Swing Over Cross-Slide: 9.62" 245 MM
Distance Between Centers: 50" 1250 MM
X-Axis Travel, Maximum: 9.8" 250 MM
Z-Axis Travel, Maximum: 50" 1250 MM
Spindle Speeds, Range: 15 to 2500 RPM
Thread Range, Metric: Up to 14 MM
Thread Range, Imperial: Down to 2 TPI
Thread Range, Module: Up to 3.5 MOD
Thread Range, Diametral: Down to 8 DP
Longitudinal Feeds Range, Metric: 03 to .4 MM/R
Longitudinal Feeds Range, Imperial: 001 to .016 IPR
Tailstock Quill Travel: 5.5" 140 MM
Tailstock Quill Diameter: 2.875" 73 MM
Tailstock Taper: 5 MT
Motor Rating: 10 HP 7.5 KW
Overall Height: 68"
Weight Approximately: 4750 LBS
