17" X 40" DOALL "17" ENGINE LATHE w/INCH/METRIC - TAPER ATTACHMENT - CHUCK

17" X 40" DOALL "17" ENGINE LATHE w/INCH/METRIC - TAPER ATTACHMENT - CHUCK

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$6,950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Engine Lathes (Gap Bed, Hollow-Spindle, Tracer)
Manufacturer:
DOALL
Model:
17
Stock #:
30240
Status:
For Sale

Description

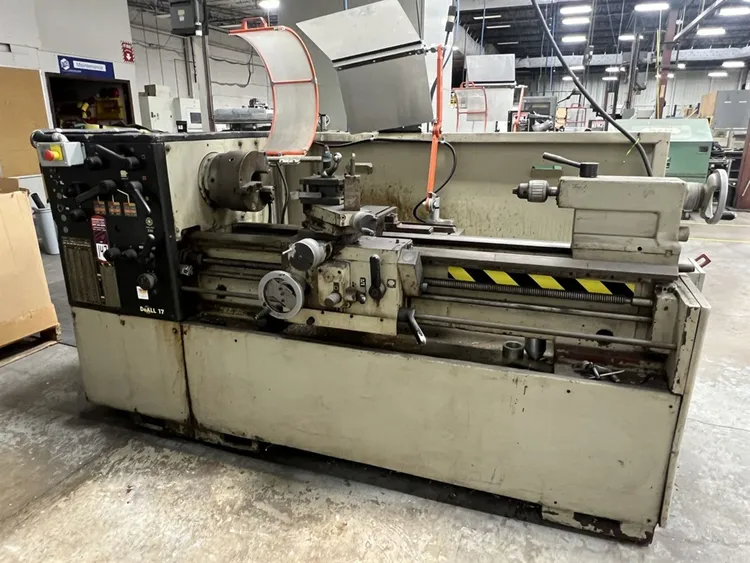

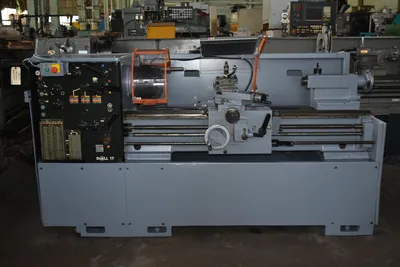

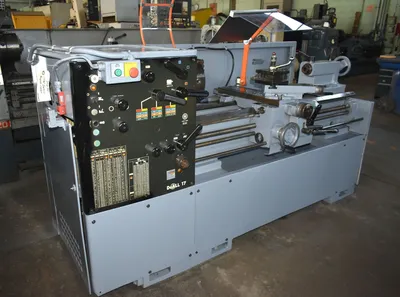

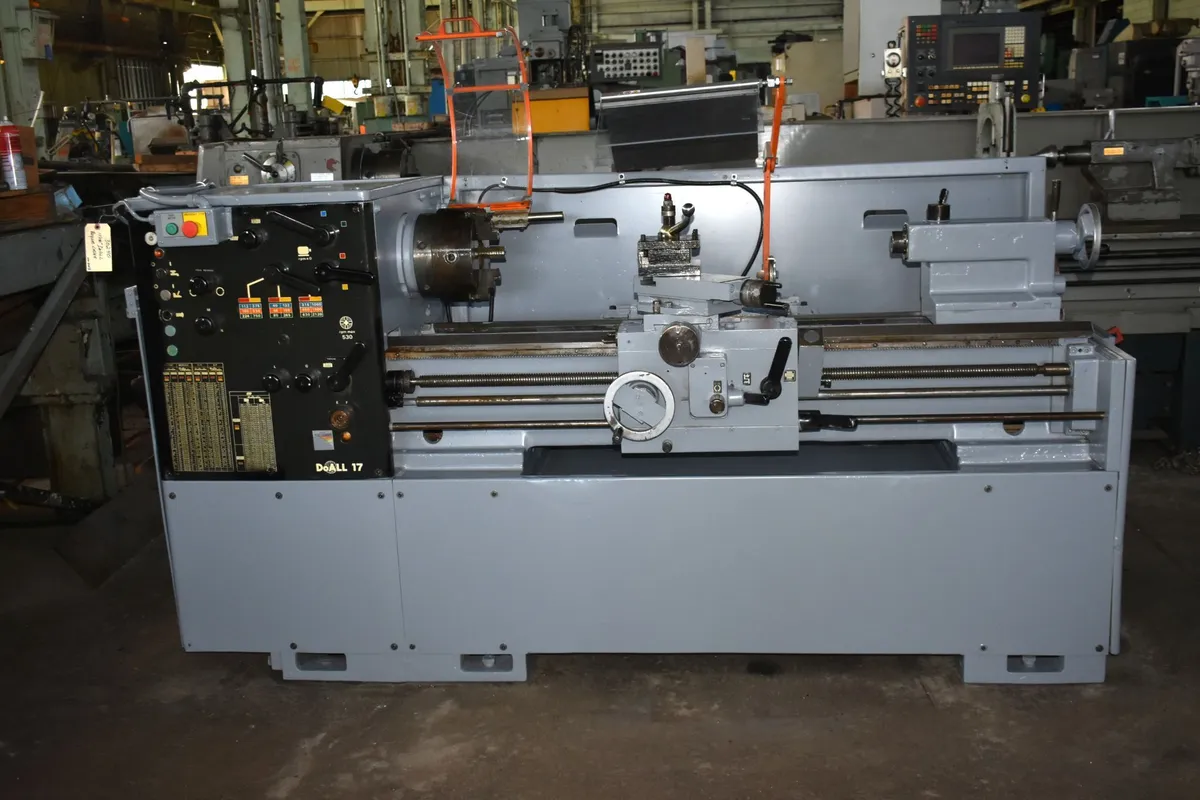

17" x 40" DOALL GEARED-HEAD ENGINE LATHE

w/TAPER ATTACHMENT

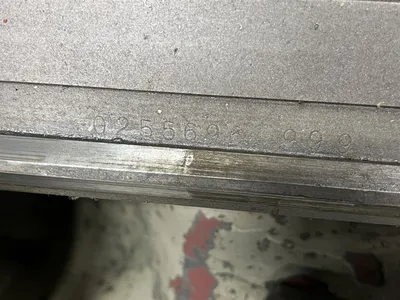

Serial No 02-55696-999, Model 17,

Taper Attachment

Threading (Inch-Metric)

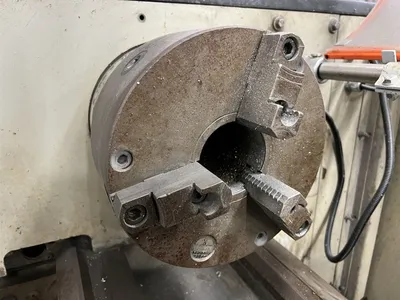

10" 3-Jaw Chuck w/Jaws

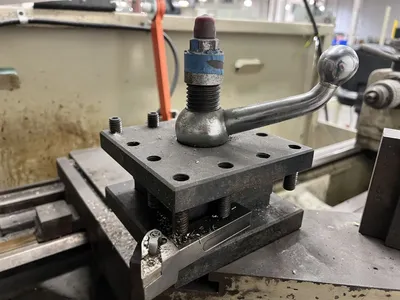

Tool Post

Induction Hard Ways

Swing17"431.8 mm
Centers40"1,016 mm
Spindle Bore3"76.2 mm
Power10 hp7.5 kW
RPM2,120 RPM2,120 RPM
Swing Over Cross Slide9.625"244.47 mm
Dimensions100 x 44100 x 44
Weight41854185

Hole Thru Spindle 3"

Swing Over Bed Ways, Rated 17"

Swing Over Cross-Slide 9.625"

Distance Between Centers 40"

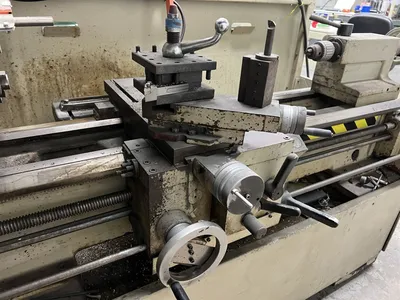

Cross-Slide Cross-Feed Travel 10"

Compound-Rest Travel 5"

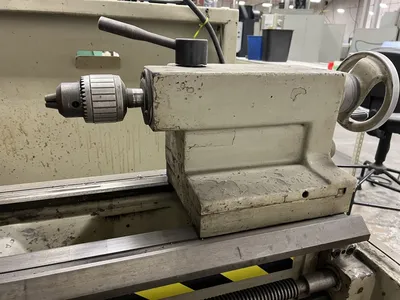

Tailstock, Spindle Travel 6.625"

Tailstock, Spindle Taper #4 MT

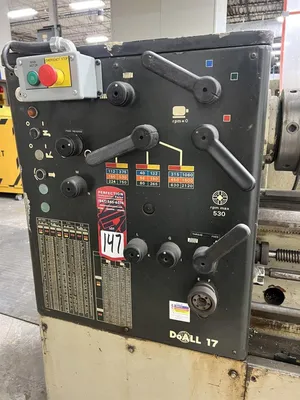

(18) Spindle Speeds, Range 40 to 2120 RPM

(48) Carriage Longitudinal Feeds .0023 to .126 IPR

(48) Cross-Slide Cross Feeds .0012 to .066 IPR

(96) Thread Changes, (US Stand) 1/2 to 42 TPI

(96) Thread Changes, (Metric) .4 to 56 MM

Motor Horsepower 10 HP

Floor Space Required, L x D 100" x 44"

Weight, Approximately 4185 LBS

F.O.B OUR WAREHOUSE
