20" SUNDSTRAND "H20" HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER w/21” ELECTRO-MAGNETIC CHUCK - 20 HP MOTOR & WHEEL DRESSER

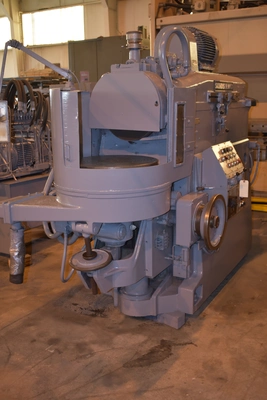

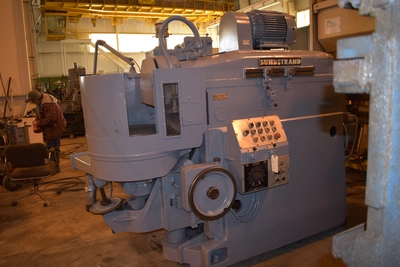

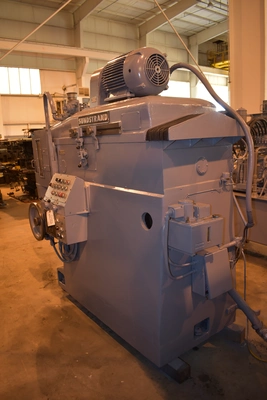

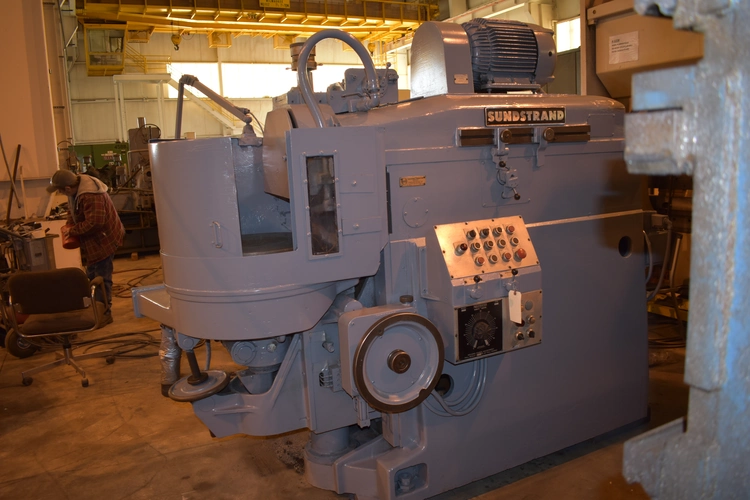

20" SUNDSTRAND "H-20" HORIZONTAL-SPINDLE
ROTARY SURFACE GRINDER

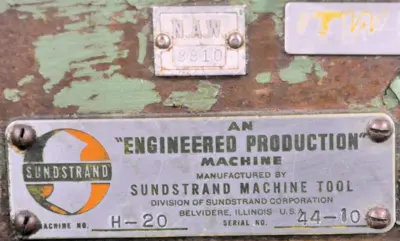

Serial No 44-10, Model H20

EQUIPPED WITH:
Horizontal-Spindle Machine Design

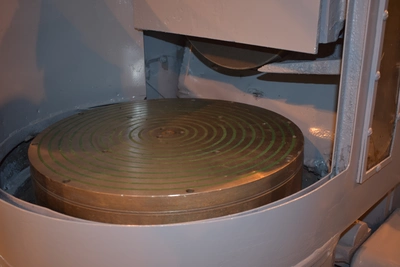

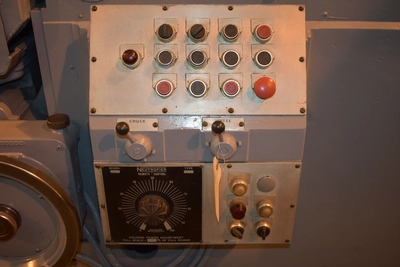

21" Diameter Magnetic Chuck w/Neutrofier
Above-Wheel Dresser

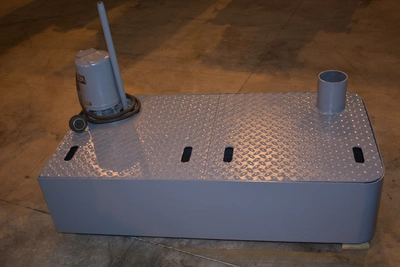

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Magnetic Chuck Nominal Diameter .......... 20"
Magnetic Chuck Actual Diameter .......... 21"
Swing With-in Coolant Guards .......... 26"
Grinding Height Capacity w/New Wheel .......... 10"
Grinding Head Travel, Horizontal .......... 13"
Grinding Wheel Diameter, Maximum .......... 16"
Convex Table Angle Degrees, Maximum .......... 10-DEGREES
Concave Table Angle Degrees, Maximum .......... 10-DEGREES
Grinding Wheel Speed .......... 1400 RPM
Chuck Speeds, Variable Range .......... 45 to 190 RPMa
Grinding Traverse Feeds, Range .......... 0 to 10 FPM
Power Feed Adjustment .......... .0001" to .0015"
Power Table Positioning 6 IPM
Spindle Motor, Horsepower/RPM 20 HP/1755 RPM
Hydraulic Motor, Horsepower 7.5 HP
Weight, Approximately 11600 LBS
F.O.B OUR WAREHOUSE
Magnetic Chuck Nominal Diameter: 20"
Magnetic Chuck Actual Diameter: 21"
Swing With-in Coolant Guards: 26"
Grinding Head Travel, Horizontal: 13"
Grinding Wheel Diameter, Maximum: 16"
Grinding Wheel Speed: 1400 RPM
Chuck Speeds, Variable Range: 45 to 190 RPM
Grinding Traverse Feeds, Range: 0 to 10 FPM
Power Feed Adjustment: 0001" to .0015"
