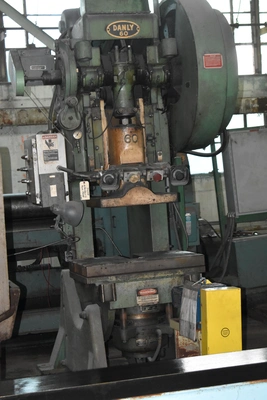

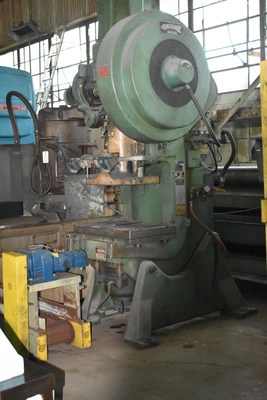

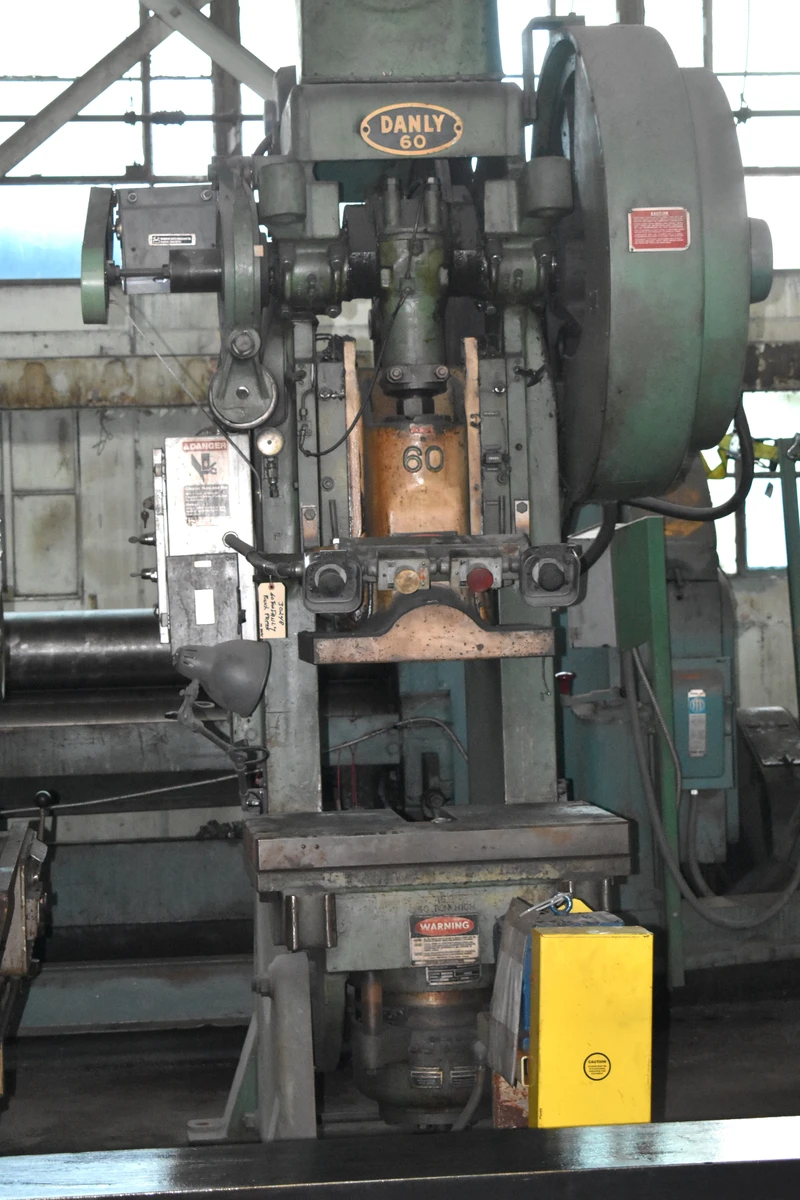

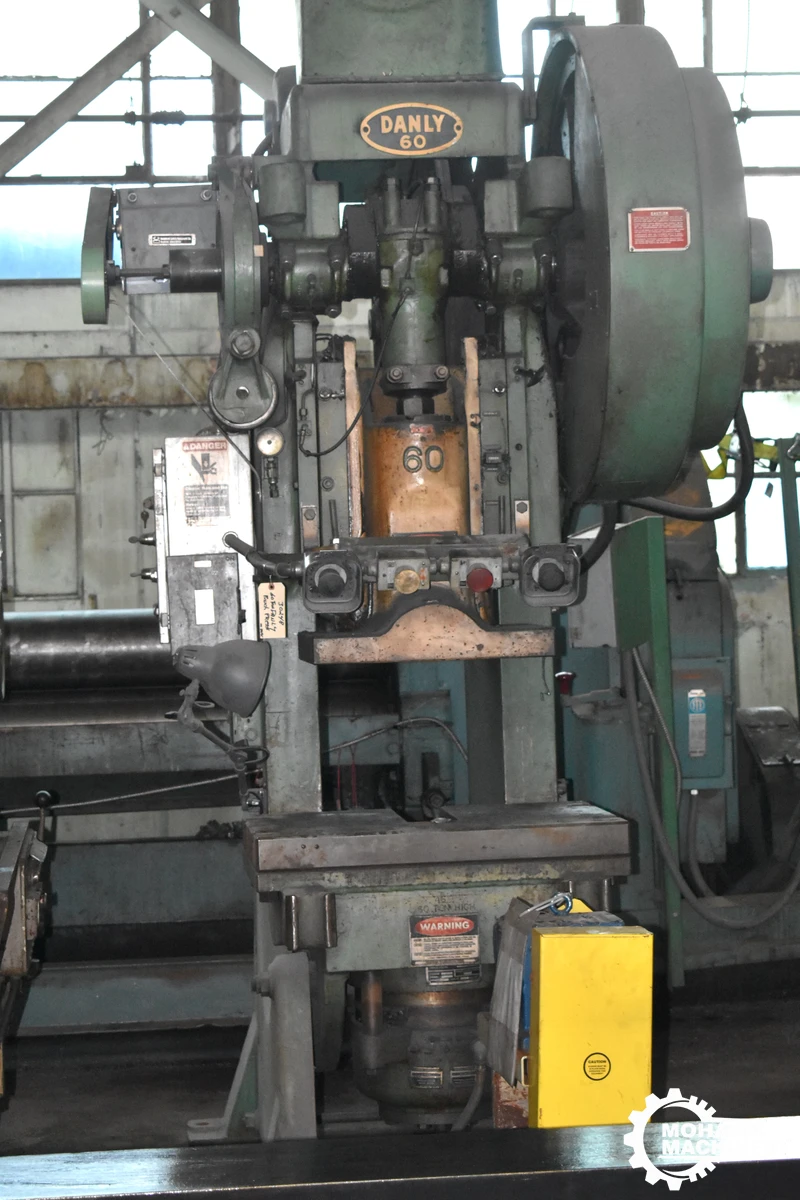

60 TON DANLY “60” BACK-GEARED O.B.I. PRESS w/100 TON AIR CUSHION - 32” X 21” BOLSTER PLATE

60 TON DANLY “60” BACK-GEARED O.B.I. PRESS w/100 TON AIR CUSHION - 32” X 21” BOLSTER PLATE

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$7,950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
OBI Presses (Open Back Inclinable)
Manufacturer:
DANLY
Model:
60
Stock #:
30248
Status:
For Sale

Description

60 TON DANLY BACK-GEARED O.B.I. PRESS

Serial No 6055570168, Model 60

Air Clutch & Brake

Back-Geared Design

100 Ton Air Cushion (2" Stroke, 14" Diameter)

32" x 21" x 3" Bolster Plate (Threaded)

Slide Adjustment

Tonnage60 T54.431 t
Stroke5"127 mm
Shut Height12.75"323.85 mm
Bed W21"533.4 mm
Bed L32"812.8 mm
SPM45 strokes/min.45 strokes/min.
Air Clutch (Yes/No)YesYes
Type (BG, Double Action, FW)Back-gearedBack-geared
Crank (Single/Double)SingleSingle
Dimensions57 x 8457 x 84
Weight1000010000

Tonnage Capacity 60 TON

Stroke Length 5"

Shut Height to Bed, (SDAU) 12.75"

Ram Adjustment 9"

Slide Area, L-R x F-B 21" x 16"

Bed Area, L-R x F-B 32" x 21"

Bed Opening, L-R x F-B 17" x 13"

Bolster Area, L-R x F-B 32" x 21"

Bolster Thickness 3"

Throat Depth 11"

Width Opening In Back 7"

Strokes per Minute, Continuous 45 SPM

Strokes Per Minute, Single Stroking 38 SPM

Motor, Horsepower/RPM 10 HP/1740 RPM

Electrical System 208-220-440/3/60

Floor Space Overall Inclines, W x D 57" x 84"

Weight, Approximately 10000 LBS

F.O.B. OUR WAREHOUSE
