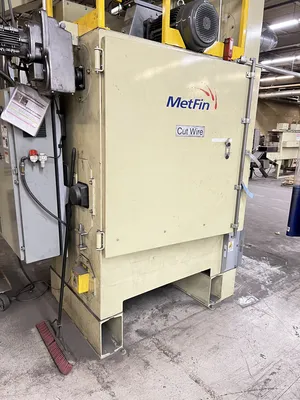

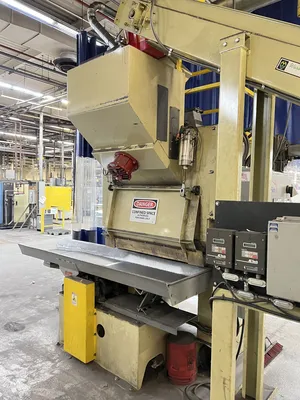

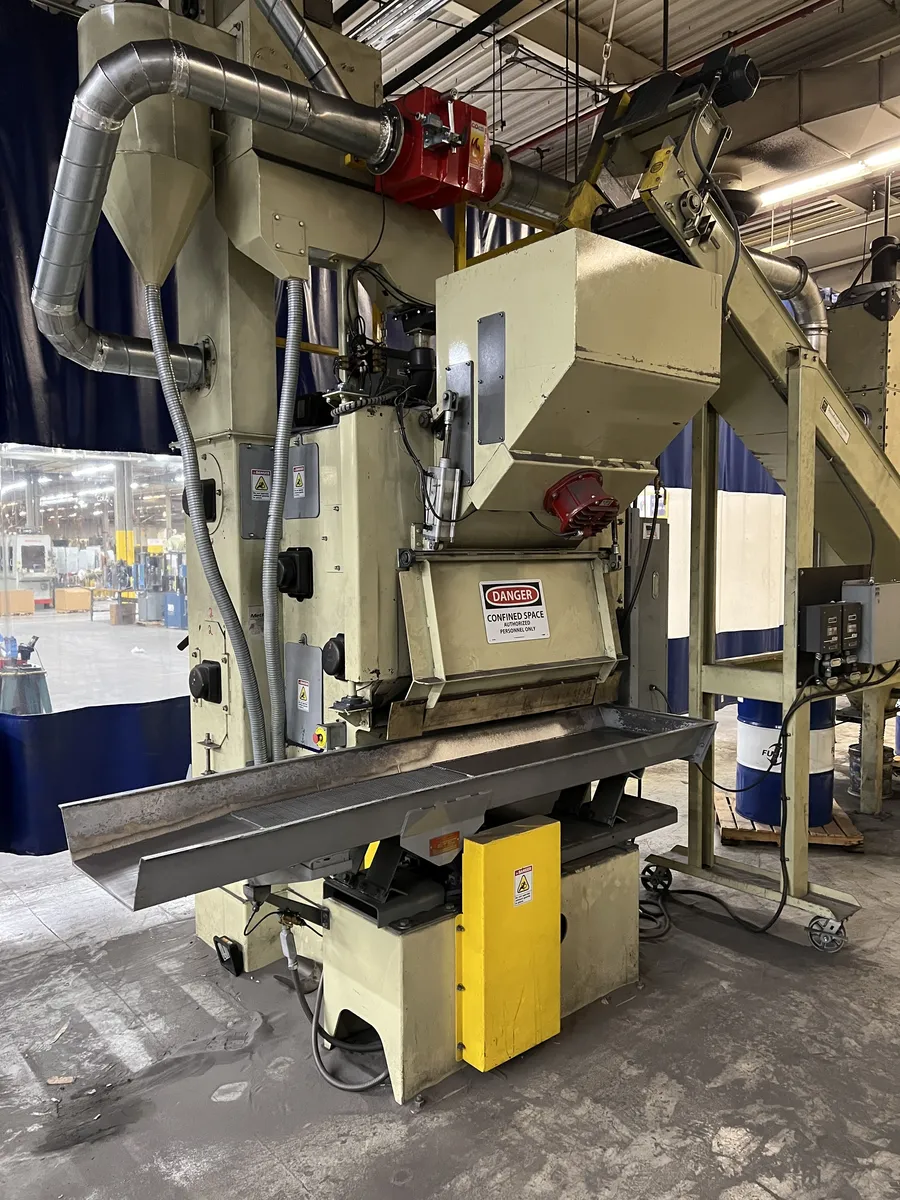

6 CU FT METFIN (METAL FINISH & SUPPLY CO, INC)
"SERIES I MODEL 600" BATCH-TYPE SHOT BLAST
w/DUST COLLECTOR & SHAKER TABLE

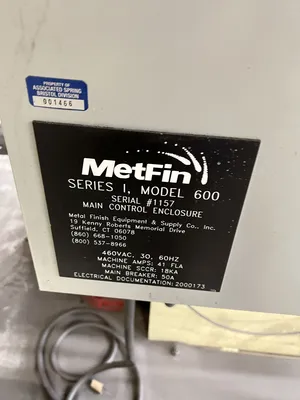

New 2016, Serial No 1157, Model 600, Series I
46" Rubber Belt

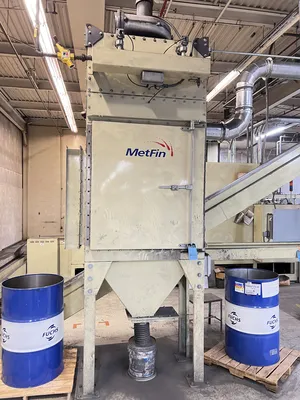

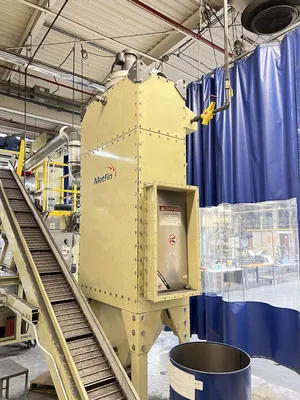

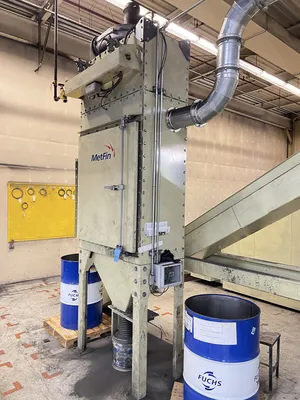

Model 12 1250 CFM Dual Cartridge Dust Collector
Webster Model FSV, Size 18/24 Shaker Table

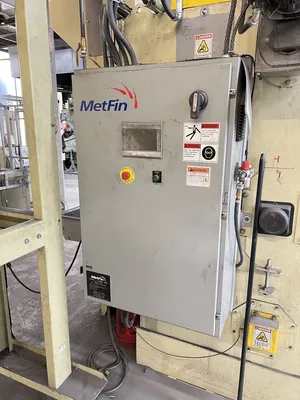

Pneumatic Controlled Load & Unload Doors

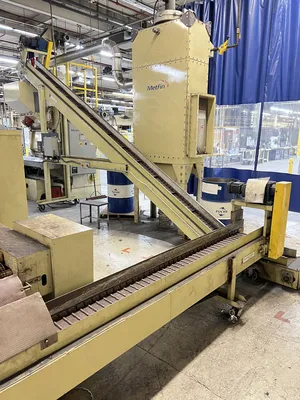

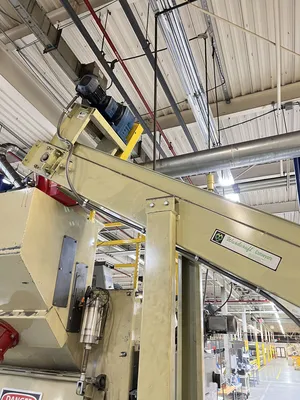

Shake Out Abrasive Return to Elevator
Abrasive Air Wash Seperator

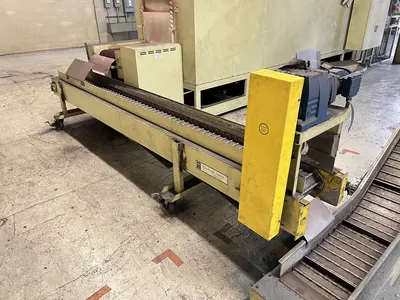

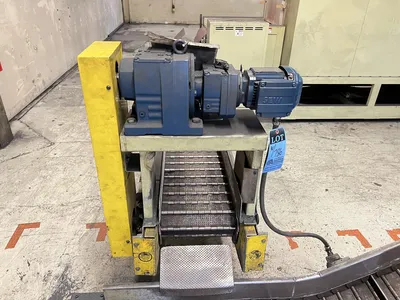

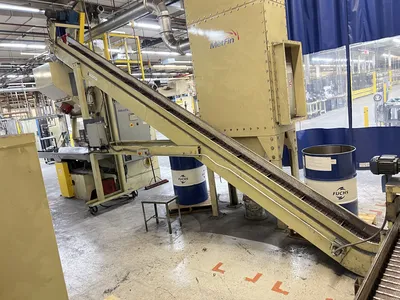

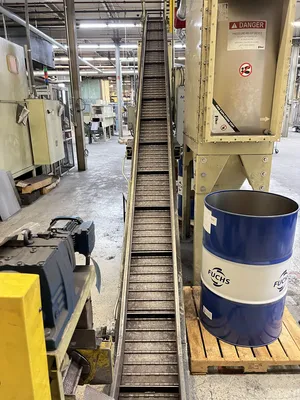

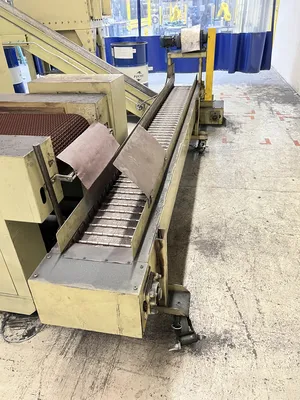

(2) Woodcraft Load Conveyors
Load Capacity 6 CU FT
46" Rubber Belt
Blast Cabinet Inside Dimensions, L-R 53"
Blast Cabinet Inside Dimensions, F-B 48"
Blast Cabinet Inside Dimensions, H 48"
Blast Cabinet Belt Inside Dimension, 36"
Blast Wheel Motor, Horsepower 15 HP
Elevator Drive Motor, Horsepower 1-1/2 HP
NOTE: The MetFin Series I Model 600 Is Ideal For
Processing Parts In Batches, Ensuring Thorough
Cleaning And Surface Preparation. With This Machine
Parts Can Be Batched And Tumbled In Large Groups.

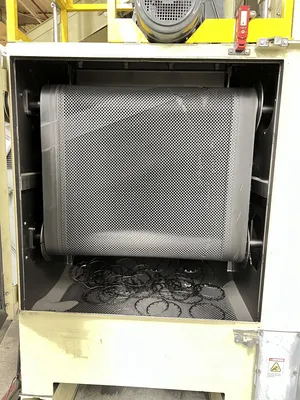

Parts Tumble In A "C" Configured Conveyor Belt System
While A Blast Wheel Propels Abrasive Into The Cup Of
The C. Batch Blasting Is The Most Cost Effective
Method Of Blasting Providing Components Can
Tolerate The Tumbling Action.
PRICE: F.O.B. OUR WAREHOUSE
