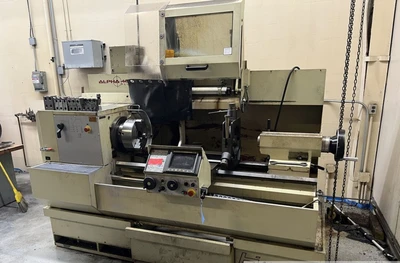

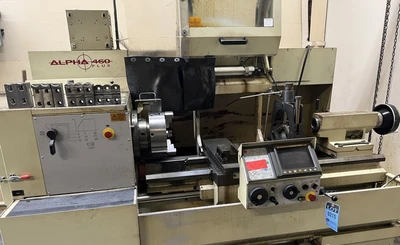

18/28" x 40" HARRISON "ALPHA 460 PLUS" COMBINATION MANUAL/CNC GAP-TYPE LATHE w/GE FANUC CONTROL & CHUCKS
Have one to sell?
$9,950.00 USD
ConditionUsed
1 available

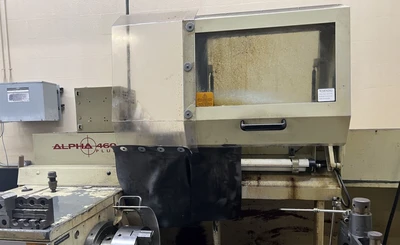

18/28.7" x 40" HARRISON "ALPHA 460 PLUS" GAP-TYPE
2-AXIS COMBINATION MANUAL/CNC LATHE

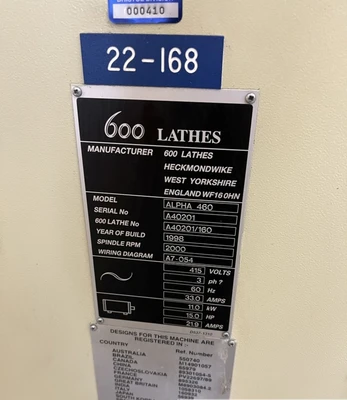

Serial No A40201, Model 460 PLUS,
Series Alpha

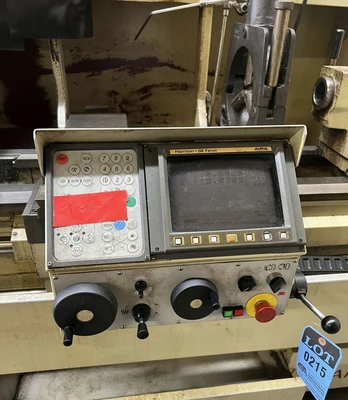

GE/Fanuc Alpha CNC Controls
D1-8 Camlock Spindle Nose

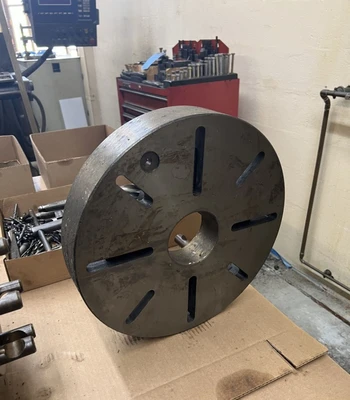

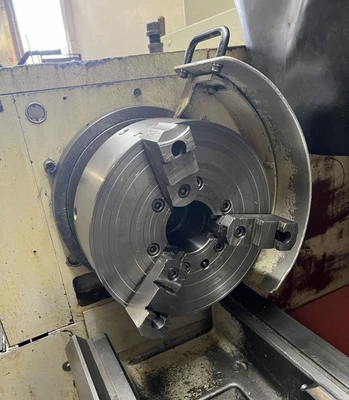

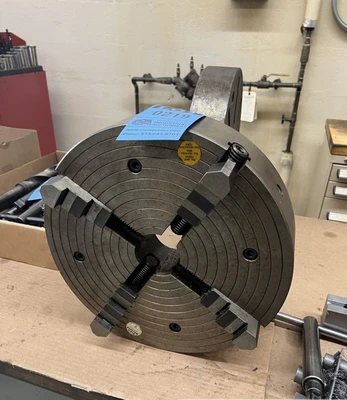

12" 3-Jaw Chuck - 16" 4-Jaw Chuck - 17" Faceplate

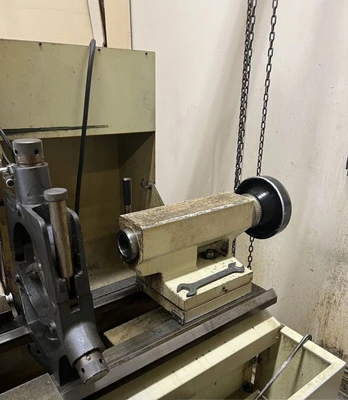

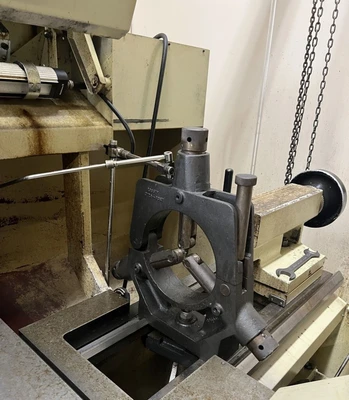

Steady Rest - Tailstock - Coolant System

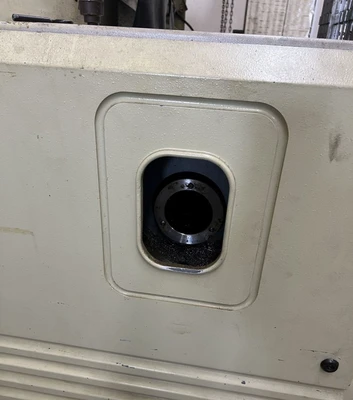

Spindle Bore Diameter.................. 3.06" 78MM
Swing Over Bed......................... 18.37" 460MM
Swing In Gap........................... 28.75" 730MM
Gap Width From Faceplate............... 8.5" 216MM
Swing Over Cross-Slide................. 10.625" 270MM
Distance Between Centers............... 40" 1000MM
Spindle Speeds, Range.................. 20 to 2000 RPM
Tailstock Quill Travel................. 5.62" 145MM
Tailstock Quill Diameter............... 3.75" 95MM
Tailstock Taper........................ 6 MT
Motor Rating........................... 15 HP 11kW
Overall Dimensions, L x W.............. 120" x 64"
Overall Height......................... 68"
Weight Approximately................... 5825 LBS
F.O.B. OUR WAREHOUSE
