40" X 12GA LODGE & SHIPLEY "2CT40" HIGH-SPEED MECHANICAL POWER SQUARING SHEAR w/FRONT OPERATED MANUAL BACK GAUGE - SQUARING ARM

40" x 12GA LODGE & SHIPLEY MECHANICAL
POWER SQUARING SHEAR

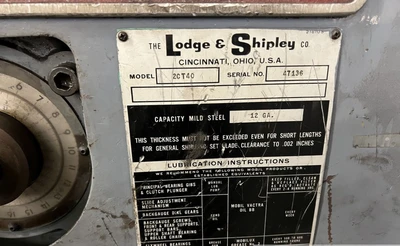

Serial No 47136, Model 2CT40, Series "HIGH-SPEED"

EQUIPPED WITH:
24" MANUAL Back Gauge (Front Operated)
38" Squaring Arm

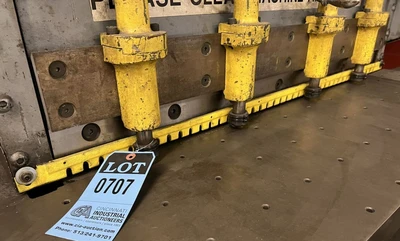

Spring Actuated Hold-Downs
Bijur Lubrication System
Foot Pedal Control

CATALOG SPECIFICATIONS:
Shearing Capacity, Nominal 40" x 12GA
Shearing Capacity, Stainless Steel 40" x .081"
Shearing Capacity, Aluminum 40" x .144"
Shearing Capacity, Pure Copper 40" x .154"
Shearing Capacity, Monel 40" x .085"
Length Between Housings 42.75"
Length of Knives 40.5"
Rake, Taper Per Foot .25"
Throat Depth 10.25"
Strokes Per Minute 120 SPM
Main Motor, Horsepower 1.5 HP
Overall Dimensions, L x D 5'5" x 4'2"
Overall Height 5'11"
Weight, Approximately 3450 LBS
F.O.B. ON WAY IN
