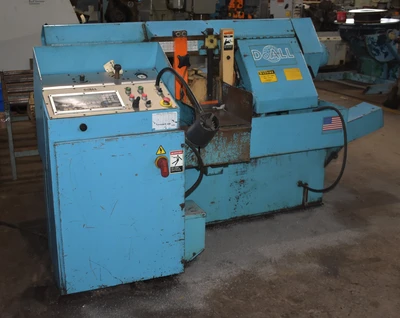

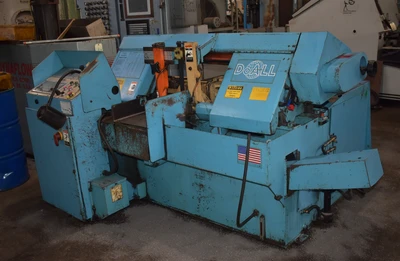

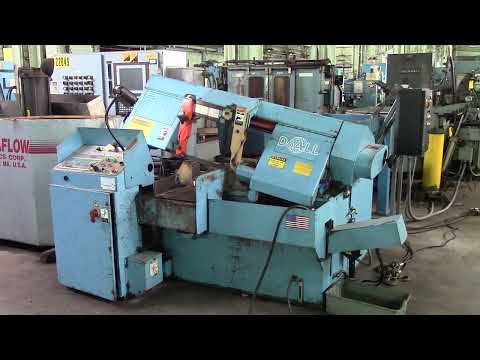

12" x 12" DOALL "C-305NC" CNC AUTOMATIC HORIZONTAL BAND SAW w/ALPHA-NUMERIC MULTI-INDEXING PROGRAMMABLE CONTROL
Have one to sell?
$9,950.00 USD
ConditionUsed
1 available
12" x 12" DOALL CNC AUTOMATIC HORIZONTAL BAND SAW
Serial No 522-99194, Model C305NC

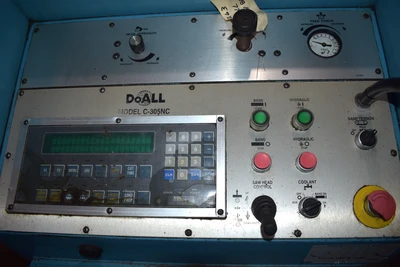

Alpha-Numeric Programmable Control (20 Jobs) w/Multiple Indexing
Automatic Kerf Compensation - Automatic Crop Out - Cut Time Monitor
Movable Hydraulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed and Down-Feed
Automatic Chip Conveyor

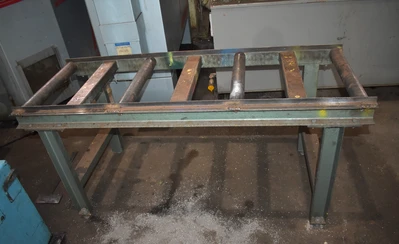

Exit Roller Conveyor
Round Stock Capacity, Maximum 12" 305MM
Flat Stock Capacity, Maximum 12" x 12" 305MM x 305MM
Automatic Indexing, Single Length 16" 405MM
Automatic Indexing, Multiple Length 48" 1229MM
Band Length 144" 3660MM
Band Width 1.25" 32MM
Band Speeds, Variable 60 to 350 FPM
Band Speeds, Variable 18 to 105 MPM
Bandwheel Diameter 15" 381MM
Band Drive Motor 5 HP 3.7 KW
Hydraulic Motor 2 HP 1.5 KW
Weight, Approximately 4200 LBS
F.O.B. OUR WAREHOUSE
